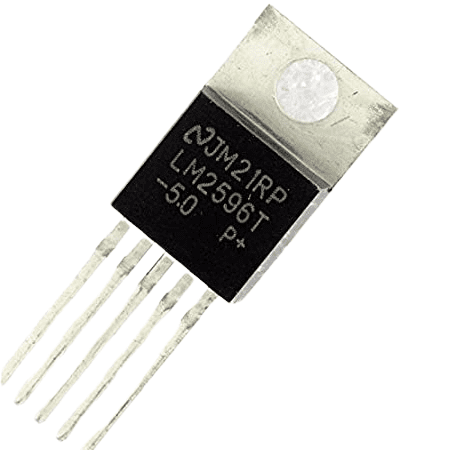

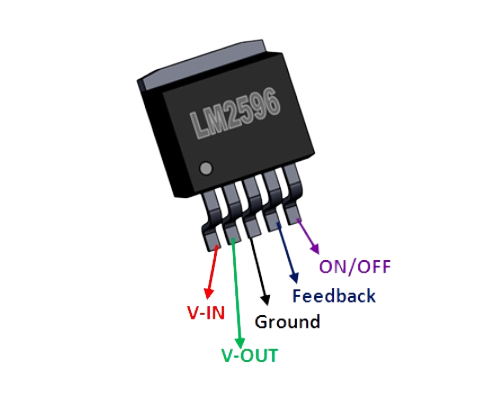

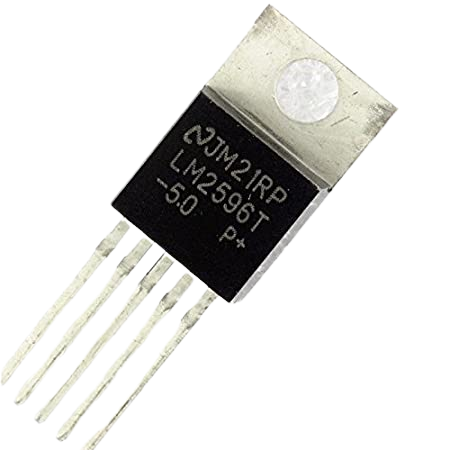

LM2596 Voltage Regulator IC

Voltage Regulation: The LM2596 is a step-down (buck) voltage regulator, which means it reduces a higher input voltage to a lower, regulated output voltage. It is commonly used to provide a stable voltage supply for various electronic circuits.

Adjustable Output Voltage: The LM2596 allows you to adjust the output voltage to your desired value within a specified range. This adjustability makes it versatile and suitable for a wide range of applications.

Fixed and Adjustable Versions: There are fixed output voltage versions of the LM2596 available, such as the LM2596-5.0 (providing a fixed 5V output), as well as adjustable versions like the LM2596S, which allows you to set the output voltage using external resistors.

Current Handling: The LM2596 can typically handle a maximum output current of several amps, depending on the specific variant and heat dissipation considerations. This makes it suitable for both low-current and higher-current applications.

Switching Regulator: The LM2596 operates as a switching regulator, which means it switches the input voltage on and off at a high frequency to regulate the output voltage. This switching operation makes it more efficient than linear regulators and generates less heat.

Input and Output Capacitors: Like most voltage regulators, the LM2596 benefits from input and output capacitors to stabilize the voltage and reduce noise.

Applications: The LM2596 is commonly used in various electronic projects, including power supplies for microcontrollers, Arduino projects, LED drivers, battery chargers, and more.
