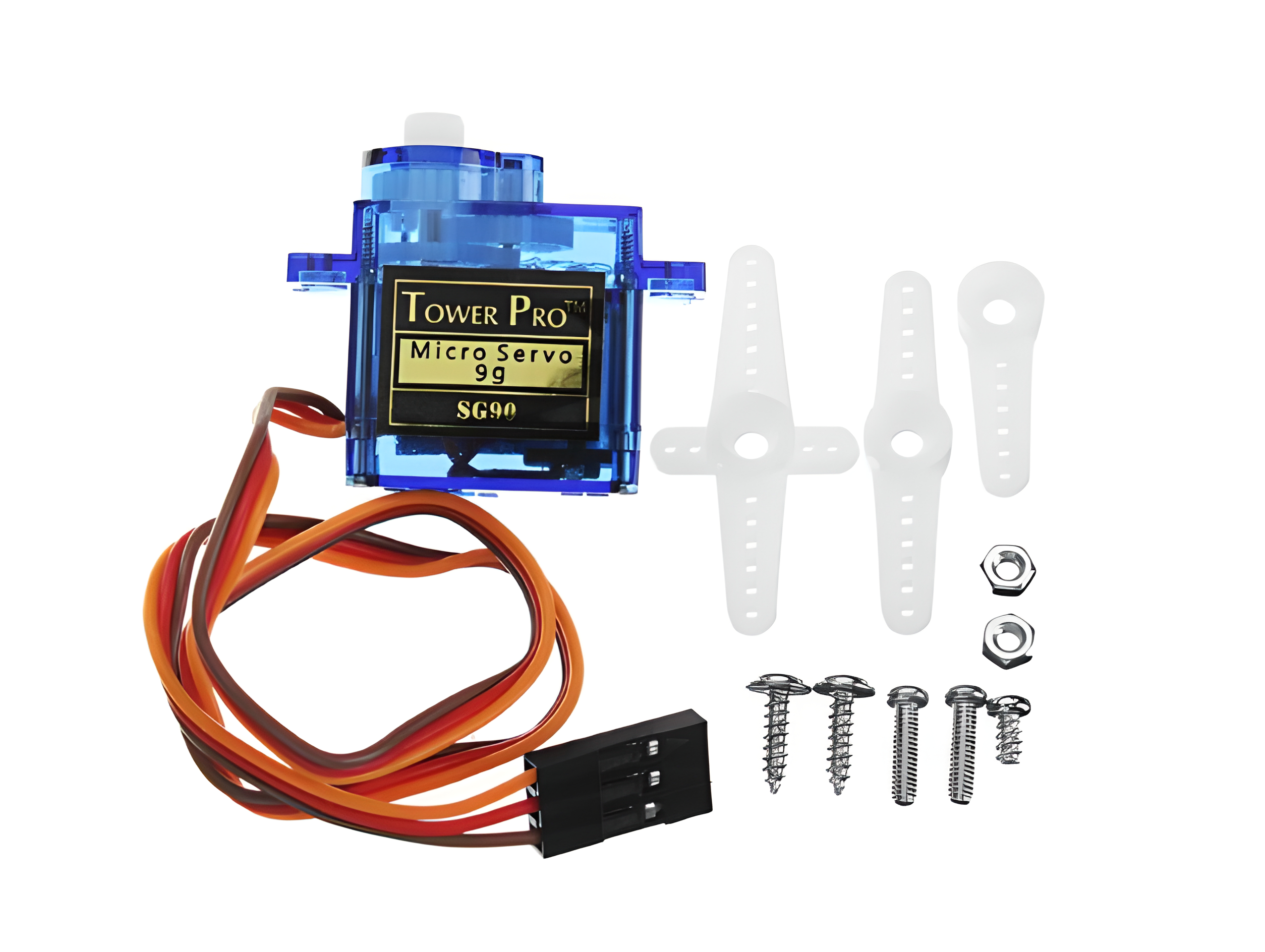

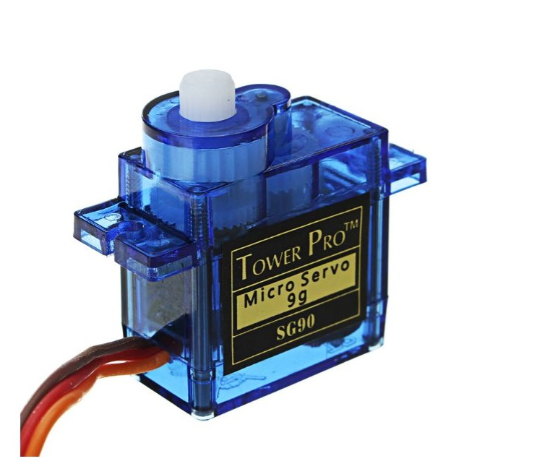

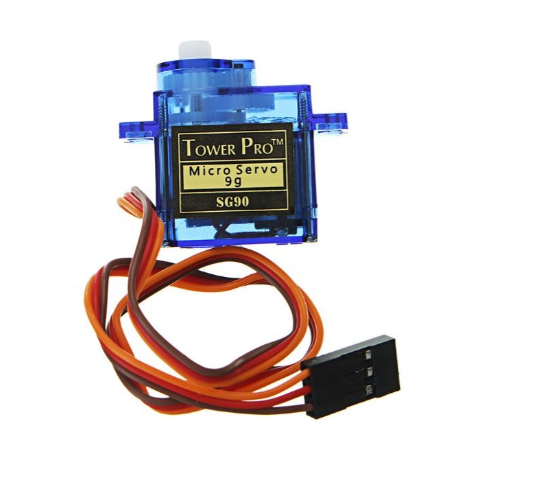

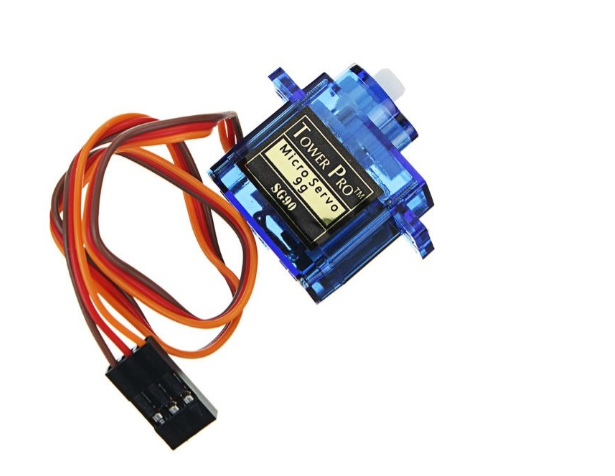

SG90 Micro-Servo motor
Non-returnable
Rs.110.00
The TowerPro SG90 9g Mini Servo is a 180° rotation servo. It is a Digital Servo Motor that receives and processes PWM signal faster and better. It equips sophisticated internal circuitry that provides good torque, holding power, and faster updates in response to external forces.
Choose Quantity
Product Details
It equips Carbon Fiber Gears which makes the servo motor much lighter than the same metal gear motor. For small load applications using the metal gear, servo motor adds on unnecessary weight, so we suggest using these lightweight plastic gear servo motors.
Wire Description
- Red – Positive
- Brown – Negative
- Orange – Signal
Features
- High resolution
- Accurate positioning
- Fast control response
- Constant torque throughout the servo travel range
- Excellent holding power
Specification:-
- 3 pole ferrite, all nylon gear
- Top ball bearing
- Operating Voltage: 4.8V~6.0V
- Operating speed: 0.12sec/60 degree
- Output torque: 1.6kg/cm 4.8V
- Dimension: 21.5 x 11.8 x 22.7mm
- Weight: 9g
