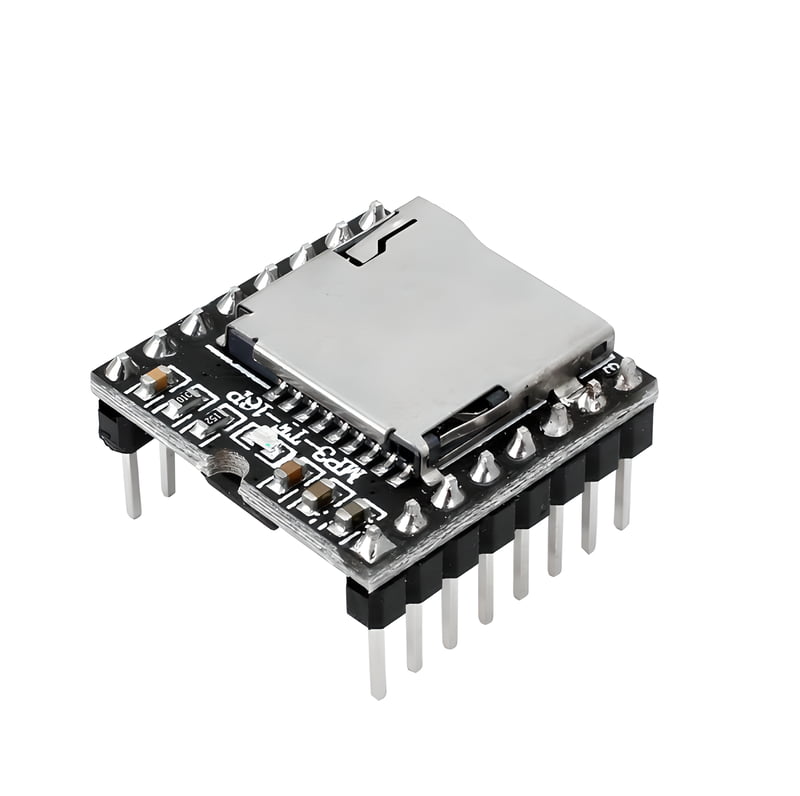

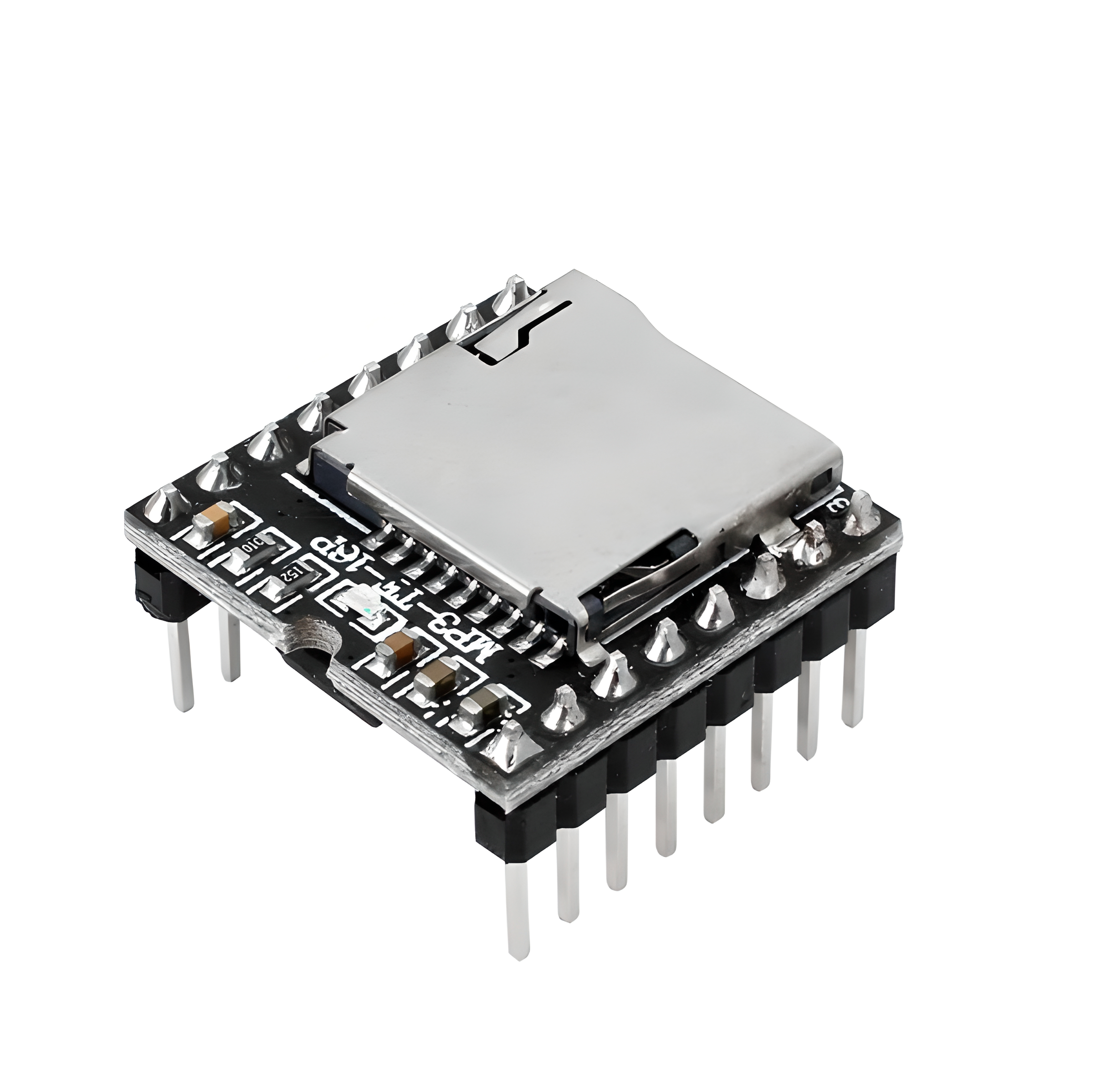

SD Card Module with Serial Port-MP3TF16P (Arduino compatible)
Non-returnable
Rs.195.00
Out of stock
The MP3TF16P SD Card Module with Serial Port is a compact and versatile MP3 playback module that seamlessly integrates into Arduino projects and other microcontroller-based applications. It offers a straightforward interface and a host of features that make it an ideal choice for adding audio capabilities to your creations.
Product Details
Features:
24 -bit DAC output, support for dynamic range 90dB , SNR support 85dB
Fully supports FAT16 , FAT32 file system, maximum support 32G of the TF card, support 32G of U disk, 64M bytes NORFLASH
A variety of control modes, I/O control mode, serial mode, AD button control mode
Advertising sound waiting function, the music can be suspended. when advertising is over in the music continue to play
It supports up to 100 Folders
And One folder can hold 255 Songs
- 30 level adjustable volume, 6 -level EQ adjustable
| Model | HW-247 |
| Type | MP3 Mini Player Module |
| No of Folder | 100 |
| Each Folder Capacity | 255 Songs |
| Sampling Rate | 8/11.025/12/16/22.05/24/32/44.1/48 KHz |
| Dynamic Range | 90dB |
| Dimension | 20x20x11mm |
