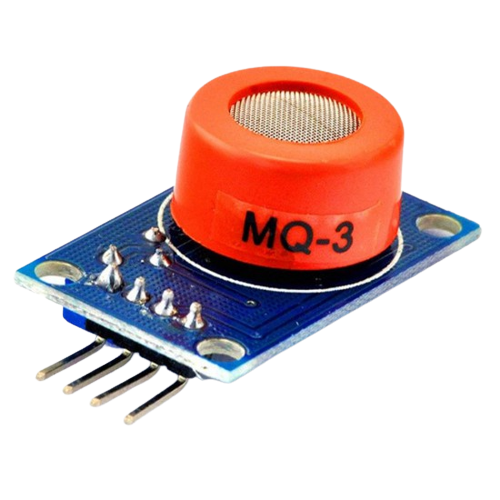

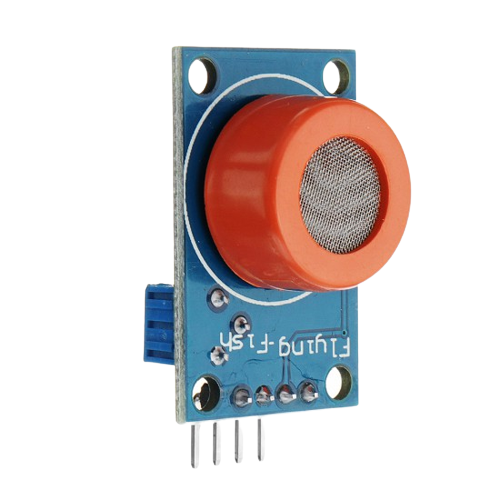

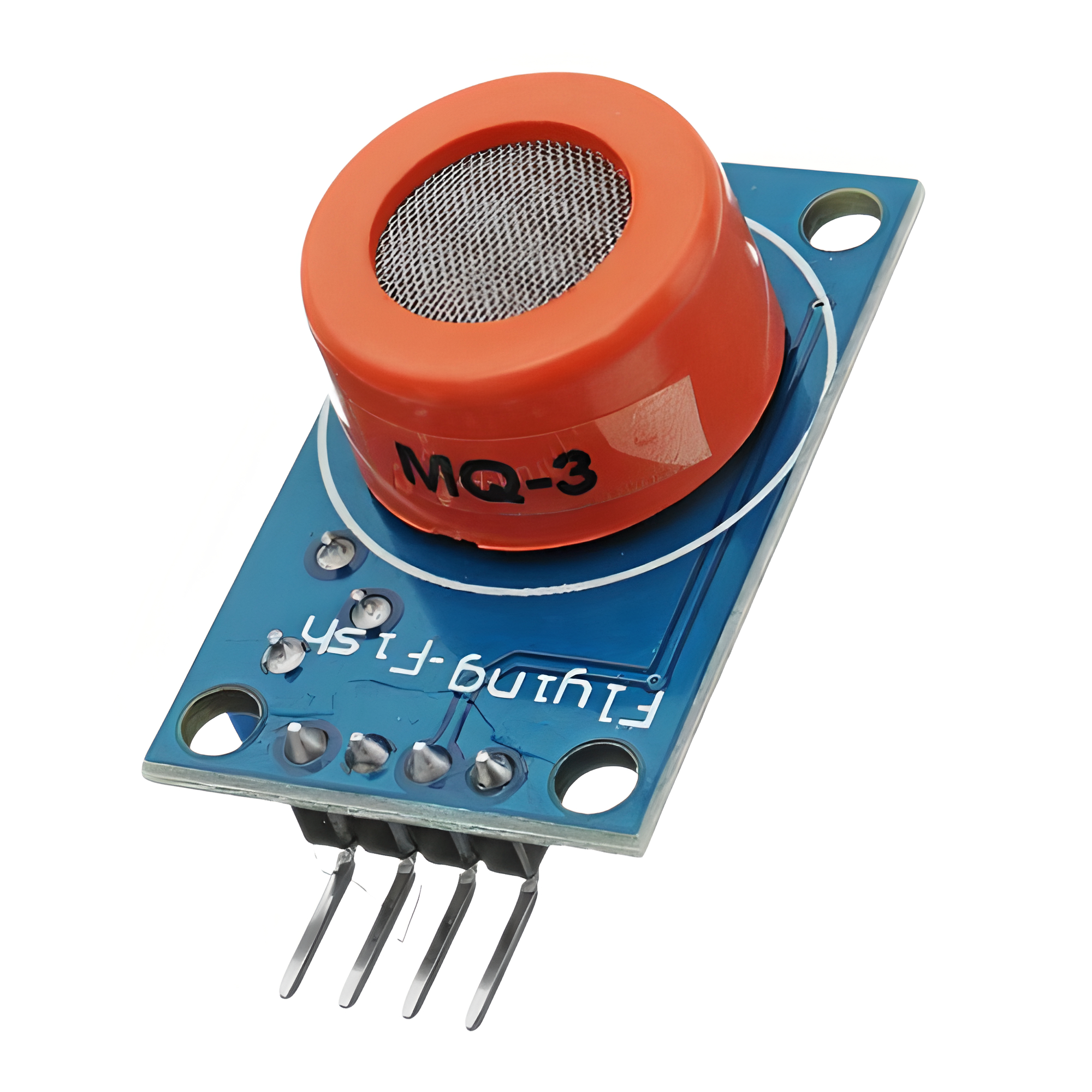

MQ3 - Alcohol Sensor Module
Rs.175.00
The MQ-3 module can detect alcohol, benzene, CH4, hexane, LPG, and CO. The sensitive material in the MQ-3 gas sensor is SnO2, which has a reduced conductivity in clear air. When the target alcohol gas is present, the sensor's conductivity increases in accordance with the increase in gas concentration. The MQ-3 sensor has a high sensitivity to alcohol and is resistant to fuel, smoke, and mist contamination. Based on the amount of alcohol in the system, this sensor produces an analog resistive output
SPECIFICATIONS
| Supply Voltage | DC 5 V |
| Current Consumption | 150mA |
| Detecting Concentration | 0.05-10mg/L Alcohol |
| Dimensions | 32 x 22 x 16 mm |
Choose Quantity
Product Details
Features
- Sensor Type - Semiconductor
- Both digital and analog output.
- It provides an analog output corresponding to the concentration of the gas in the air.
- Sensitive to alcohol, ethanol
- Fast response and recovery
- Adjustable sensitivity
- Signal output indicator
- Has a long service life and reliable stability.
- Sensors | Detecting Alcohol, Benzine | Portable alcohol detector
