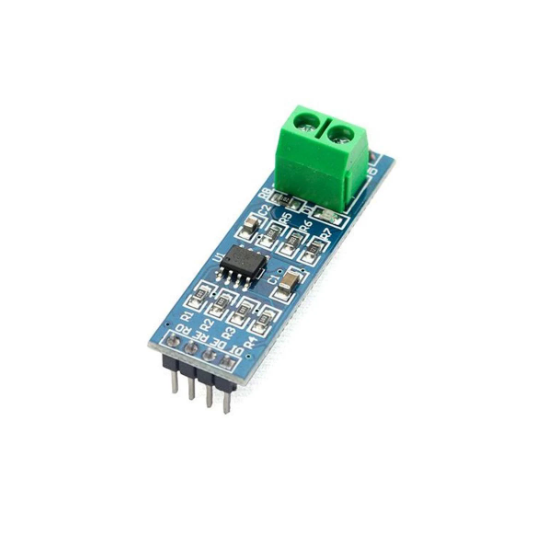

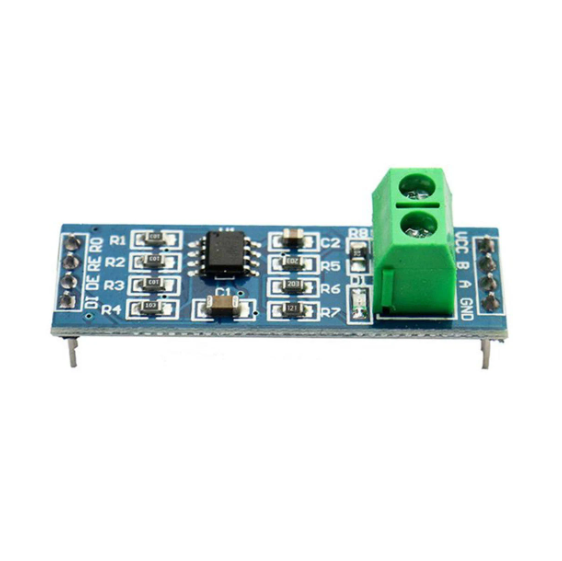

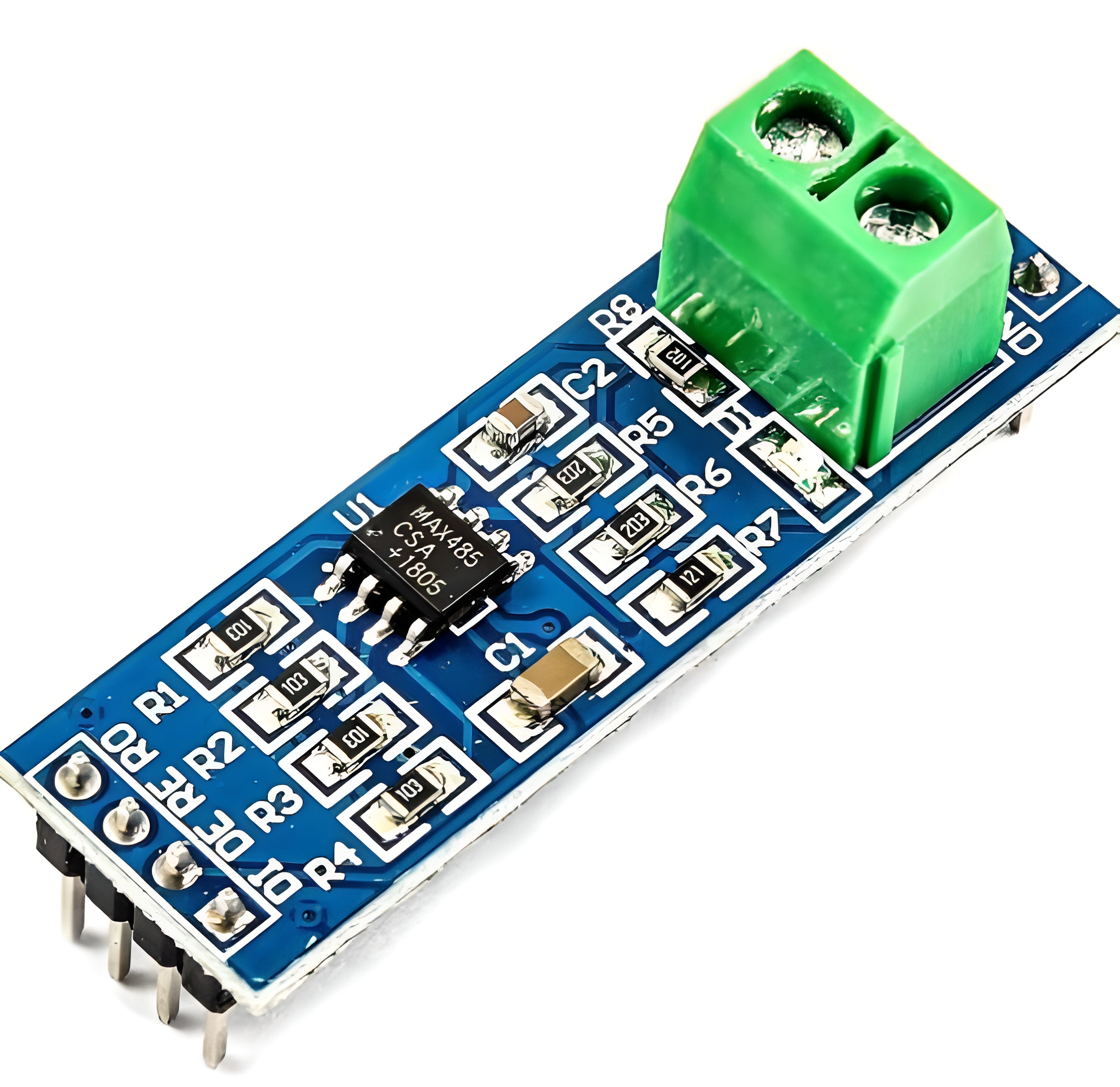

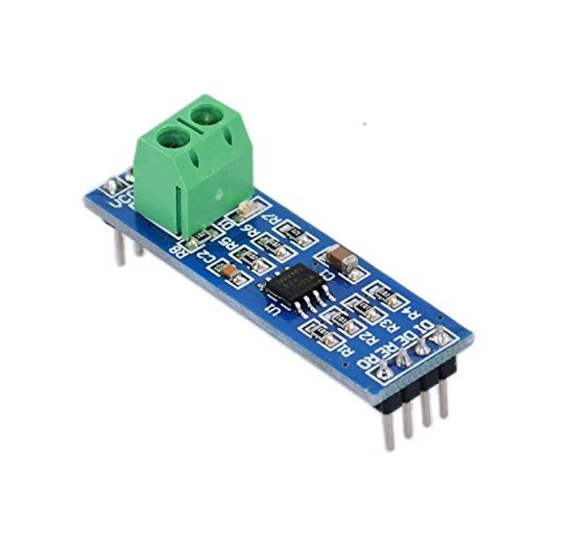

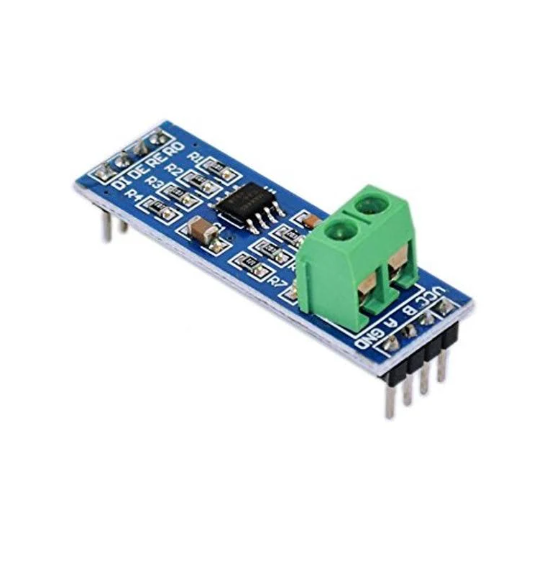

MAX 485 TTL Communication module
Non-returnable
Rs.120.00
The MAX485 is a popular integrated circuit that serves as a transceiver for serial communication using the RS-485 standard. The "TTL" in "MAX485 TTL" indicates that the device operates with TTL (Transistor-Transistor Logic) voltage levels.
Here's what you should know about the MAX485 TTL:
RS-485 Communication: RS-485 is a standard for serial communication that supports long-distance, differential signaling over twisted-pair cables. It's commonly used in industrial applications for communication between devices over longer distances and noisy environments.
Transceiver: The MAX485 is a transceiver, which means it can both transmit and receive data over an RS-485 network. It converts TTL-level signals from microcontrollers or digital logic to RS-485 differential signals and vice versa.
Half-Duplex Communication: The MAX485 operates in half-duplex mode, which means it can either transmit or receive data at a given time. It uses a single pair of wires for both transmitting and receiving data.
Choose Quantity
Product Details
Differential Signaling: RS-485 communication uses differential signaling, which provides good noise immunity and allows for longer communication distances compared to single-ended signals.
TTL Compatibility: The "TTL" part indicates that the device is designed to interface with devices operating at TTL voltage levels, typically 0V for low and 5V (or 3.3V) for high.
Driver and Receiver: The MAX485 includes a driver and a receiver. The driver converts TTL-level logic signals into RS-485 differential signals, while the receiver converts incoming RS-485 signals back to TTL-level logic.
Data Rates: The MAX485 can support data rates of up to several megabits per second, depending on the specific application and configuration.
Applications: The MAX485 is commonly used in various industrial and automation applications for networking and communication between devices, such as sensors, actuators, PLCs (Programmable Logic Controllers), and microcontrollers.
When using the MAX485, it's important to follow the manufacturer's datasheet and application notes for proper wiring, connections, and power supply considerations. The device typically requires a separate power supply for its driver and receiver sections, and it may need external components like resistors and capacitors for proper operation.
