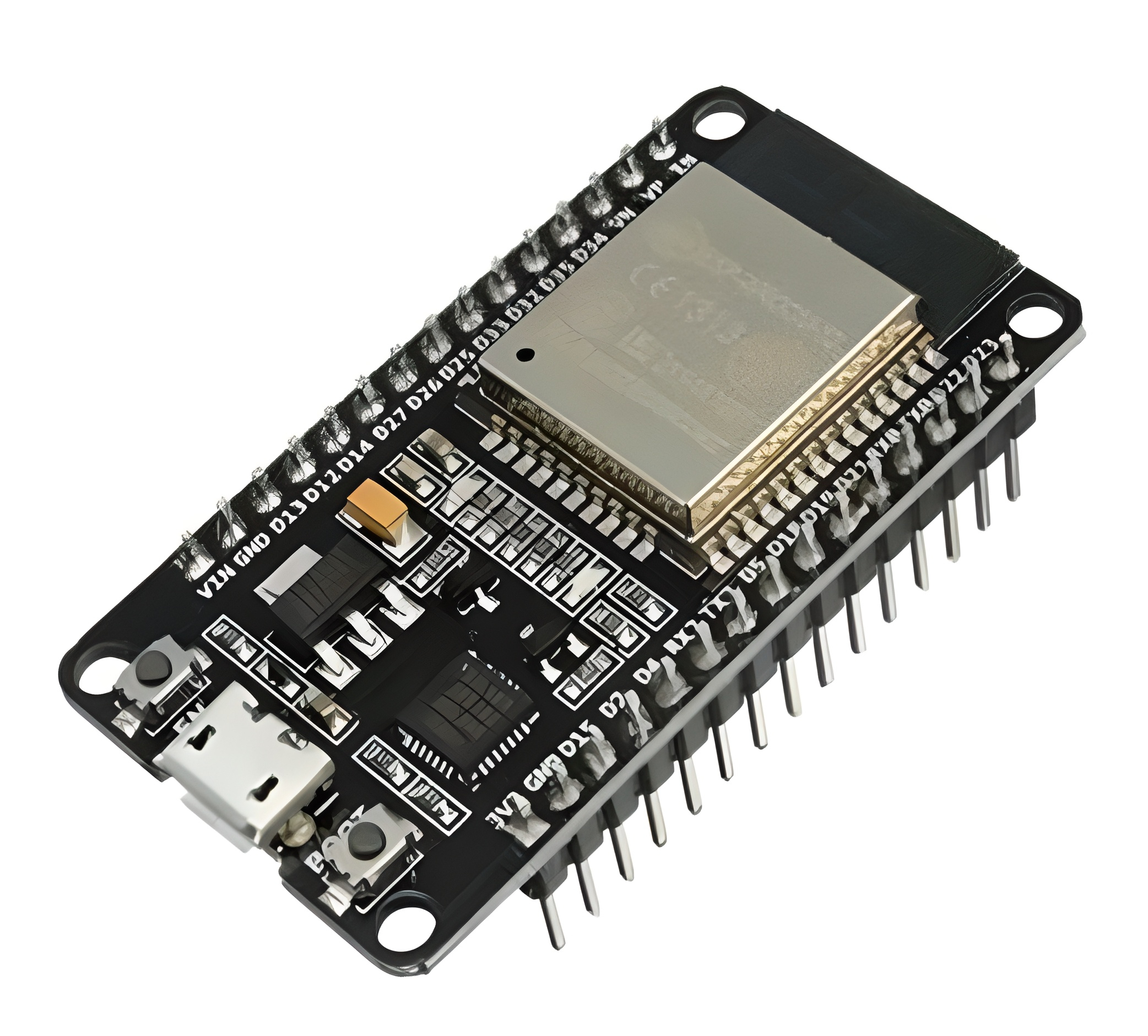

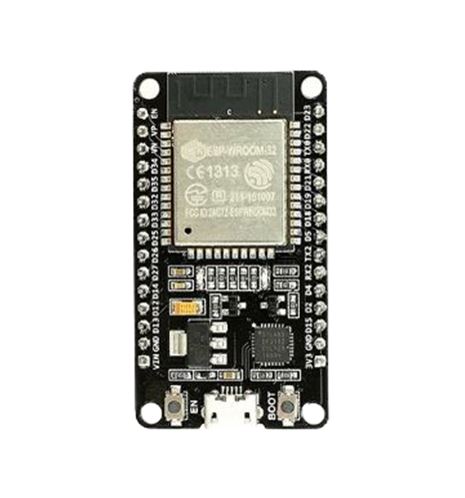

ESP32 Wifi and Bluetooth Board

ESP32 Development board is based on the ESP32-WROOM-32 Module, which consists of ESP32 series microcontroller from ESPRESSIF. It is a WiFi + Bluetooth + BLE development board. The module has a 32 Bit Dual Core MCU, ultra low power, based on 40 nM technology. The module supports 802.11 b/g/n along with Bluetooth v4.2 BR/EDR and BLE specification. It has integrated 4 MB Flash, and up to 512 KB RAM. It can operate at up to 240 Mhz Frequency.

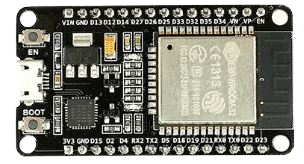

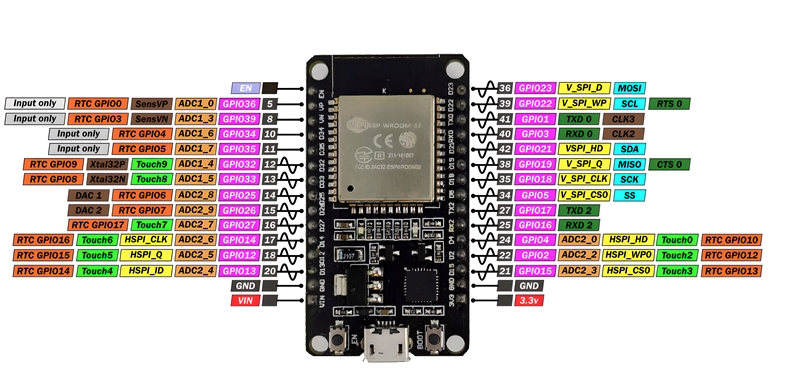

The ESP32 Development board is 30 pin board, with all of the interfaces accessible. It sports a micro USB Connector, and USB to UART Bridge, reset and boot mode buttons, and a LDO regulator. Most of the important GPIOs are accessible in the board.

This board is useful to add high capacity WiFi, Bluetooth or BLE in any existing projects very rapidly. It also supports Lua scripting language, there by making it easier to develop for the developers.

• 802.11 b/g/n
• WiFI + Bluetooth v4.2 BR/EDR And BLE
• Based on ESP32 WROOM 32, 32Bit dual core MCU
• Up to 512 KB RAM
• Operating Voltage: 3.3 V
• Supports Lua Program, making easier to develop
• Supported Modes: AP, Station, AP+Station
• Small Size, can be easily embedded to other projects
•
