DS18B20 Sensor Module
Non-returnable
Rs.95.00
Out of stock

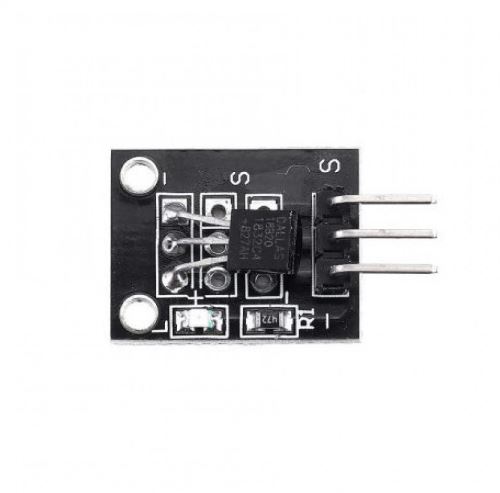

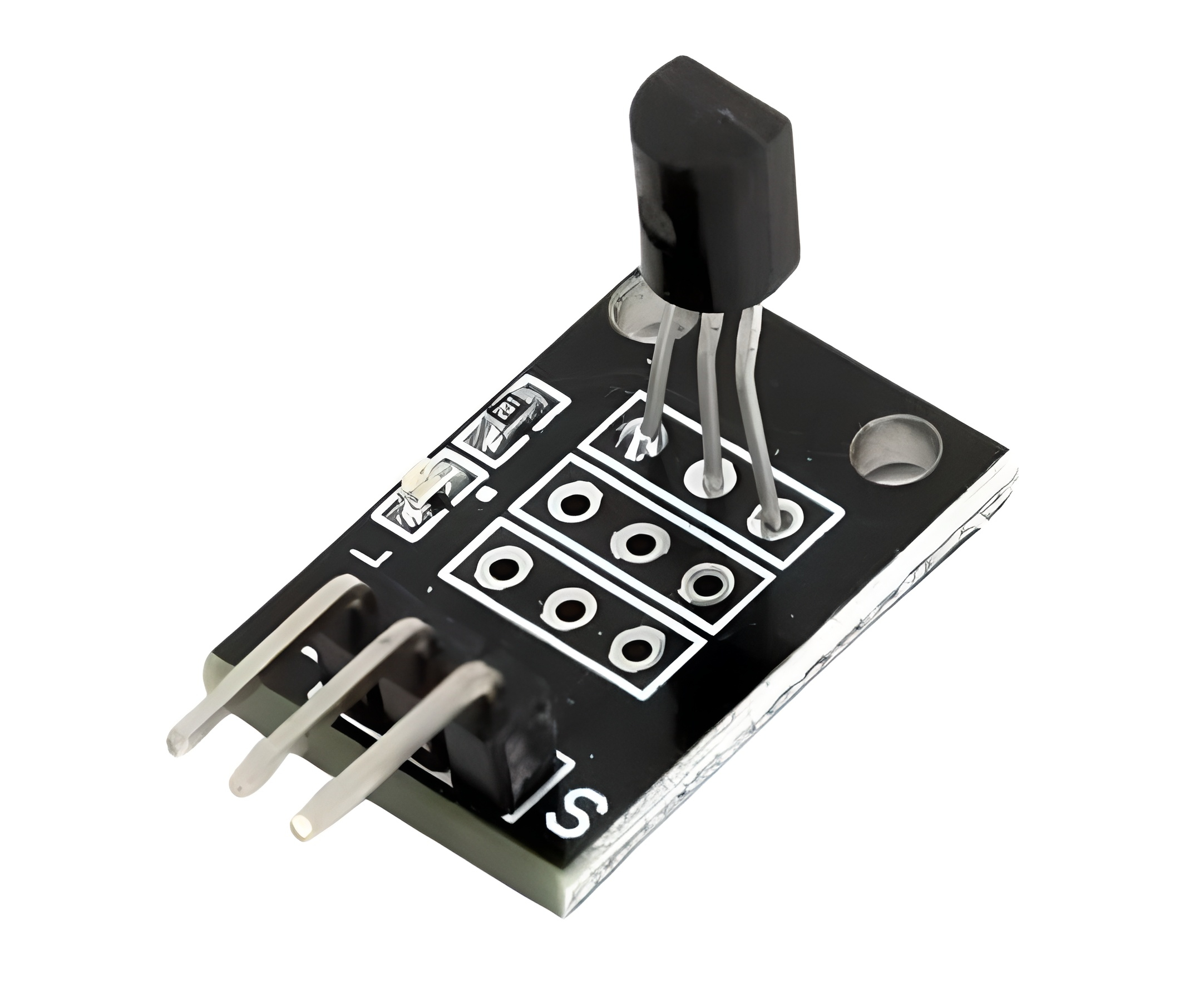

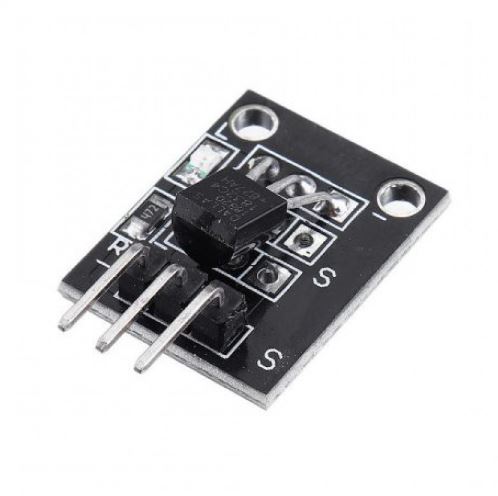

The DS18B20 sensor module is a pre-built and ready-to-use device that incorporates the DS18B20 digital temperature sensor IC along with supporting components for ease of integration into electronic projects. This module simplifies the process of interfacing the DS18B20 sensor with microcontrollers and other digital systems.
Product Details
Here's an overview of a typical DS18B20 sensor module:
Key Components and Features:
DS18B20 Temperature Sensor IC: The core component of the module is the DS18B20 digital temperature sensor IC manufactured by Maxim Integrated. This IC provides accurate temperature measurements and communicates with the microcontroller using the One-Wire communication protocol.
Pull-up Resistor: The module typically includes a pull-up resistor connected to the data line of the DS18B20 sensor. This resistor is essential for proper communication on the One-Wire bus.
Three-Pin Interface: The DS18B20 sensor module typically has three pins: VCC (power supply voltage), GND (ground), and DQ (data). These pins simplify the connection of the module to a microcontroller or development board.
Compatibility: The module is designed to work with a wide range of microcontrollers, including popular platforms like Arduino and Raspberry Pi. It can be used with various development environments and programming languages.
Voltage Regulator (Optional): Some DS18B20 sensor modules include a voltage regulator to provide a stable power supply voltage to the DS18B20 IC, allowing for a wider operating voltage range.
Applications:
The DS18B20 sensor module is used in various applications where accurate temperature measurements are required. Some common applications include:
- Temperature Monitoring: It is widely used for monitoring temperatures in industrial, commercial, and residential settings.
- Weather Stations: DS18B20 sensor modules are integrated into DIY weather stations for indoor and outdoor temperature measurements.
- Home Automation: These modules are used in home automation projects for controlling heating and cooling systems and for monitoring environmental conditions.
- Data Logging: They are employed in data logging applications where temperature data needs to be recorded over time.
- Industrial Automation: In industrial settings, DS18B20 modules are used for temperature control and monitoring within manufacturing processes.
- Consumer Electronics: They can be integrated into consumer electronics devices for temperature-related functions.
