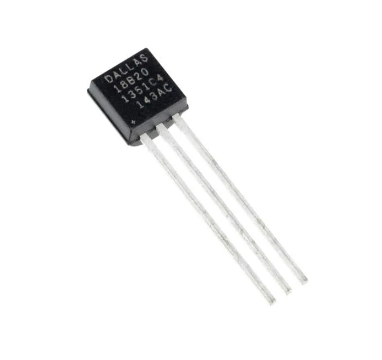

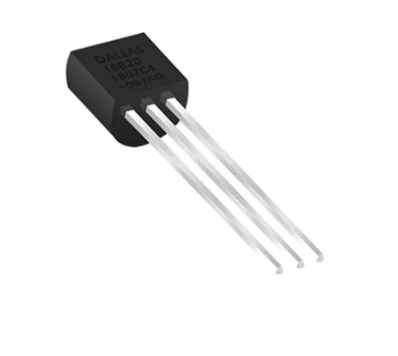

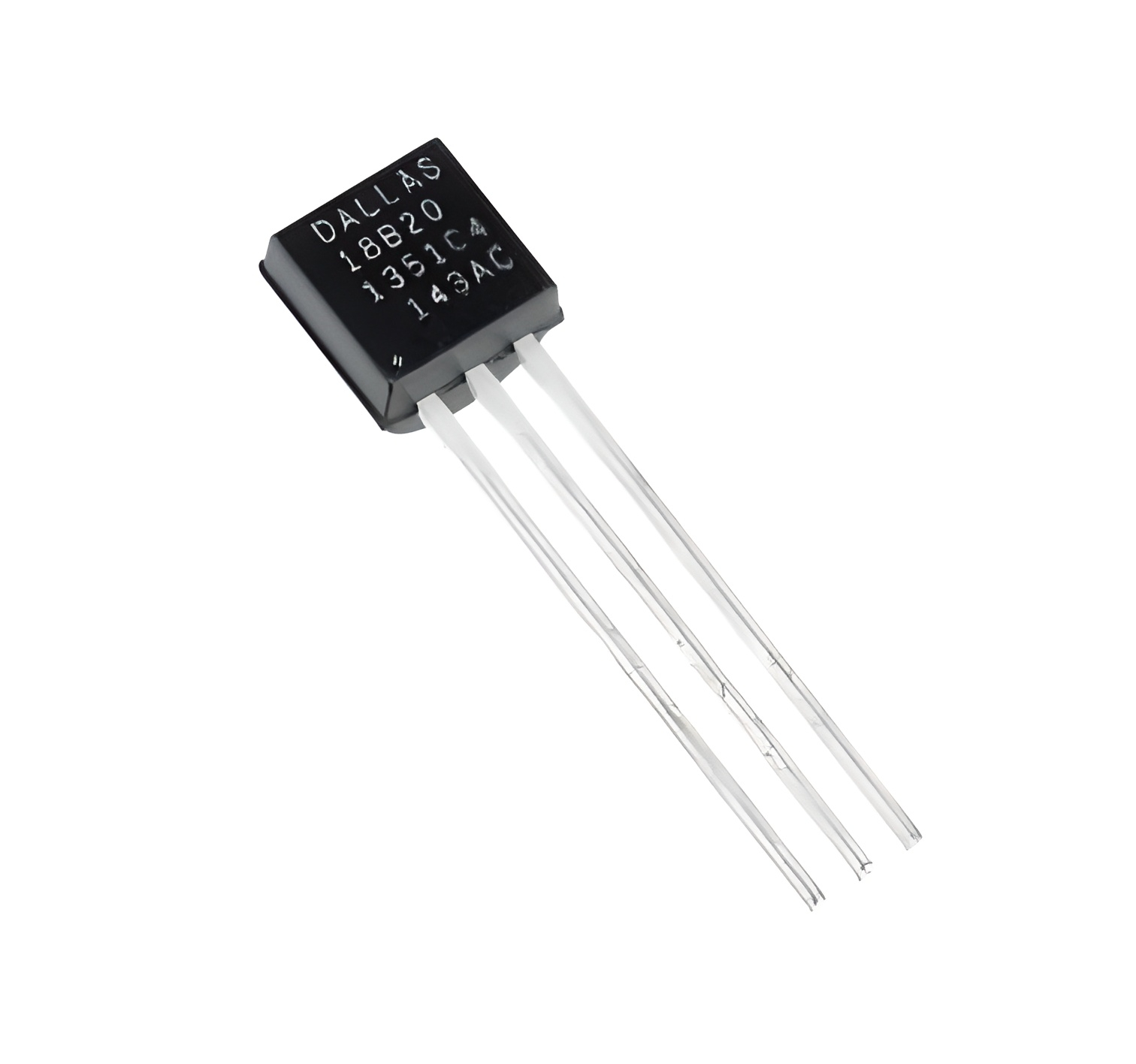

DS18B20 Sensor IC
Non-returnable
Rs.85.00
The DS18B20 Sensor IC provides precise digital temperature readings. Utilizing the one-wire protocol, this integrated temperature sensor is suitable for various applications such as temperature monitoring, environmental control, and industrial automation, offering accurate and reliable temperature measurement
Choose Quantity
Product Details
Key Features:
Digital Output: The DS18B20 provides a digital output, making it easy to interface with microcontrollers and other digital devices. It uses the One-Wire interface, a proprietary communication protocol developed by Maxim Integrated.
High Accuracy: This sensor offers high accuracy in temperature measurements. It has a temperature resolution of 0.0625°C, which allows for precise temperature monitoring.
Wide Temperature Range: The DS18B20 can measure temperatures in a wide temperature range, typically from -55°C to +125°C, making it suitable for a broad range of applications, including extreme temperature environments.
Multiple Sensors on a Single Bus: One of the notable features of the DS18B20 is the ability to connect multiple sensors to a single data bus. Each sensor has a unique 64-bit serial code, allowing multiple sensors to be addressed individually on the same bus.
Parasitic Power Mode: The DS18B20 can operate in a parasitic power mode, which means it can draw power from the data line without requiring a separate power supply pin. This simplifies the wiring and reduces the number of required connections.
Programmable Alarm Function: The DS18B20 includes programmable upper and lower temperature alarm functionality. It can trigger an alarm signal when the temperature crosses these set thresholds.
Nonvolatile Memory: The sensor includes nonvolatile memory for storing the user-defined configuration, such as temperature resolution and alarm settings.
Specifications:
Temperature Range: Typically -55°C to +125°C
Temperature Resolution: 0.0625°C
Accuracy: ±0.5°C in the range of -10°C to +85°C
Operating Voltage: Typically 3.0V to 5.5V
Communication Protocol: Maxim's One-Wire interface
Serial Number: Each DS18B20 sensor has a unique 64-bit serial code for device identification.
Applications:
The DS18B20 sensor IC is used in a wide range of applications, including:
- Temperature Monitoring: It is widely used for monitoring temperature in industrial, automotive, and consumer applications.
- Weather Stations: DS18B20 sensors are used in DIY weather stations to measure outdoor and indoor temperatures.
- Environmental Monitoring: It is employed in environmental monitoring systems to track temperature changes in natural habitats, greenhouses, and laboratories.
- HVAC Control: The sensor is used in heating, ventilation, and air conditioning (HVAC) systems for precise temperature control.
- Medical Devices: It is used in medical equipment to monitor body temperature in thermometers and temperature-sensitive medical devices.
- Home Automation: DS18B20 sensors are used in home automation projects to control heating and cooling systems and for general environmental monitoring.
- Food Industry: They are used in refrigeration and cold storage applications to maintain proper temperature conditions.
- Industrial Process Control: DS18B20 sensors are utilized in industrial settings to monitor temperature during various manufacturing processes.
