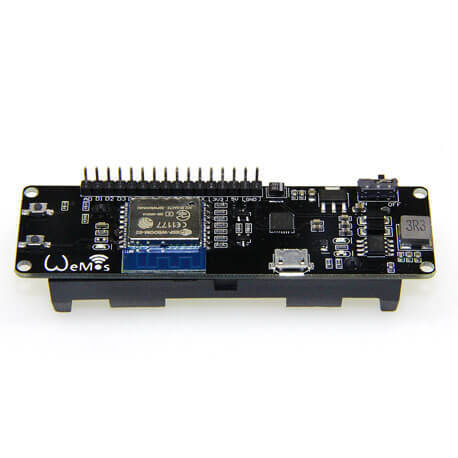

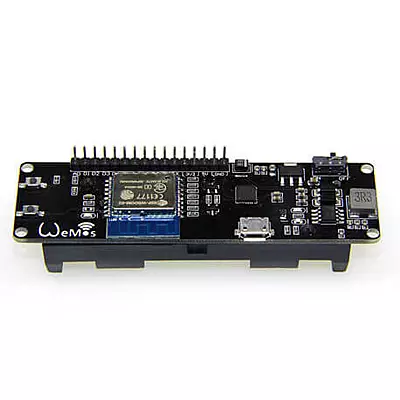

WeMos D1 WROOM-02 Board WiFi Module with 18650 Battery Holder

The WeMos D1 Esp Wroom 02 Board ESP8266 Mini-WiFi Nodemcu Module 18650 Battery, The development board integrates the ESP8266 18650 battery. A Quality 3000mah 18650 battery can run for 17 hours. When you do some ESP8266 items you must be hate to add power to power. This miniature board can solve this problem.

Important Notes:

1. This product does not contain 18650 batteries. If the battery is in the wrong direction, the charging chip will be destroyed.
2. Please do not burn the program during charging. When you burn the program, please unplug the battery and verify the switch is in ON position.
3. Recommend the use of 5V 500mA charging charger, more than 5V 1A there will be fever, does not affect the normal work, but in the process of charging charging-chip do not touch or carry, the measured charge charging will rise to about 60 degrees with the diode chip, no heat during normal working hours, rest assured to carry.
4. Important!!! Charging tip (TP 5410) will destroy if the battery is connected revers.

Features :

1. One AD inputs.
2. Micro USB inputs.
3. One programmable LED (D0).
4. AUTO PROGRAM circuit.
5. ESP8266 (ESP-WROOM-02 With TELEC) is equivalent to the NodeMCU.
6. Analog Input (AD): Built-in dividing resistor (AD = 220K – ADC – 100K = GND).
7. There is a SOLDER terminal for SLEEP MODE.
8. Compatible With Arduino and NodeMCU.
9. Operation and charging are possible at the same time.
10. 18650 charging circuit including the 5V boosting circuit with TP5410.
11. Overcharge protection, over-discharge protection built-in.
12. LED: Red = Charging, Green = Full charging.
13. 3000 mA 18650 It is possible to operate for more than 17 hours on a battery.
14. Integrated 18650 battery charging and discharging system.
15. One switch controls whether the 18650 battery is on power or not.
16. OLED’s SDA and SCL can connect to the D1 pin and the D2 pin respectively.
17. The five buttons can be controlled by FLATH, RSET, D5, D6, and D7 respectively.
18. The 5 Digital pins can configure the write/read/interrupt/PWM/I2C/one-wire supported separately.
19. Operation and NodeMCU consistent, adding a programmable LED, you can use GPIO16 to control; display 8266 running status and other functions. Integrated OLED and five buttons, more convenient for development.
20. The design concept originates from the open-source project NodeMCU; the development board integrates 18650 charging and discharging systems with charging and discharging protection. At the same time, an OLED and five directional buttons are integrated to facilitate the development.

Package Includes :

1 x WeMos D1 WROOM-02 Board WiFi Module with 18650 Battery Holder
