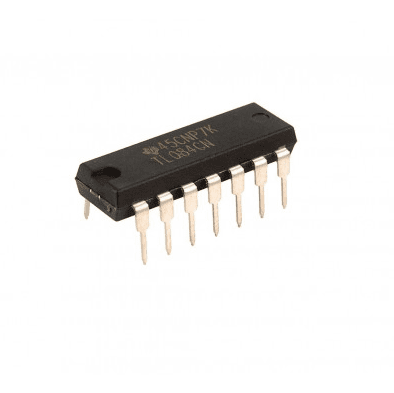

TL084 OP-AMP IC

Operational Amplifier (Op-Amp): The TL084 is an op-amp, which is a versatile electronic component used in a wide range of analog electronic circuits. Op-amps are primarily used for amplification, filtering, signal conditioning, and other analog signal processing tasks.

Quad Op-Amp: The TL084 is a quad op-amp, which means it contains four individual op-amp units within a single IC package. This makes it convenient for applications that require multiple op-amps, as it reduces the need for multiple discrete components.

Pin Configuration: The TL084 has 14 pins, and its pinout typically includes four input terminals (non-inverting and inverting inputs for each of the four op-amps), two power supply pins (V+ and V-), and output terminals for each op-amp.

General Characteristics: The TL084 op-amp typically has characteristics like a high input impedance (typically in the megaohm range), low input bias current, high slew rate (the rate at which the output voltage can change), and a wide bandwidth. These characteristics make it suitable for a wide range of applications.

Applications: The TL084 is commonly used in various analog and mixed-signal circuits, including audio amplifiers, active filters, voltage followers, oscillators, and instrumentation amplifiers. Its versatility and good performance characteristics make it a popular choice in many electronic designs.
