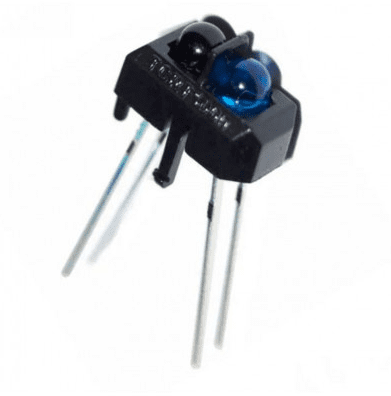

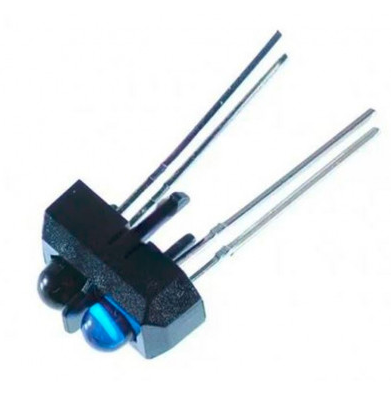

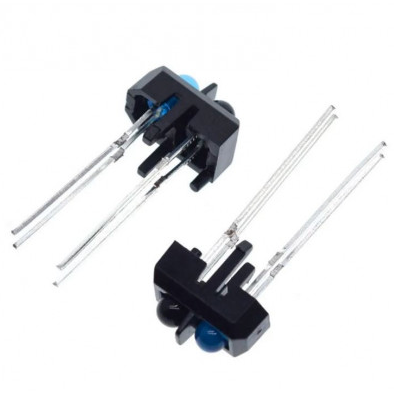

TCRT5000 IR Proximity sensor
The TCRT5000 IR Proximity Sensor is an infrared (IR) proximity sensing device engineered for precision distance detection. Designed to operate within an input voltage range of 4.5V to 5.5V, this sensor is equipped with a digital output (TTL logic) and utilizes a 950nm IR wavelength for proximity measurements.
Non-returnable
SKU - R-0603
Out of stock
Rs.35.00
Share:
Product Details
Here's a breakdown of its components and operation:
IR LED (Infrared Emitter): This LED emits infrared light at a specific wavelength. When powered, it emits a beam of IR light that reflects off nearby surfaces.
Phototransistor (Infrared Receiver): The phototransistor is sensitive to infrared light. When IR light from the LED hits the phototransistor, it becomes conductive, allowing current to flow through it.
Operating Principle: When an object comes into the path of the emitted IR light, the light is reflected off the object's surface. If the object is close enough, the reflected light will reach the phototransistor. The intensity of the reflected light will determine the phototransistor's conductivity. If an object is close, more light will be reflected, leading to higher conductivity. Conversely, if there's no object or the object is far away, less light will be reflected, resulting in lower conductivity.
Output Signal: The module translates the phototransistor's conductivity into an output signal. Typically, this is done by converting the varying current from the phototransistor into a voltage output or a digital signal that can be read by a microcontroller or other electronic circuits.
Applications: TCRT5000 IR proximity sensors are used in a variety of applications, including line-following robots, object detection in industrial automation, touchless switches, obstacle detection in drones, and more.
Distance Range: The effective detection range of the TCRT5000 depends on factors such as the reflectivity of the object's surface and the sensor's circuit design. In typical applications, the range can be a few millimeters to a couple of centimeters.
Circuit Interface: The module usually requires a supply voltage (Vcc) for the IR LED and the phototransistor, a ground connection (GND), and an output pin that provides the sensor's state (object detected or not detected). Some versions of the module might also include an adjustable potentiometer that allows you to adjust the sensitivity of the sensor.
Limitations: The TCRT5000 is sensitive to ambient light conditions, which can affect its accuracy. Additionally, its performance might vary based on the type of surface the IR light is reflecting from.
