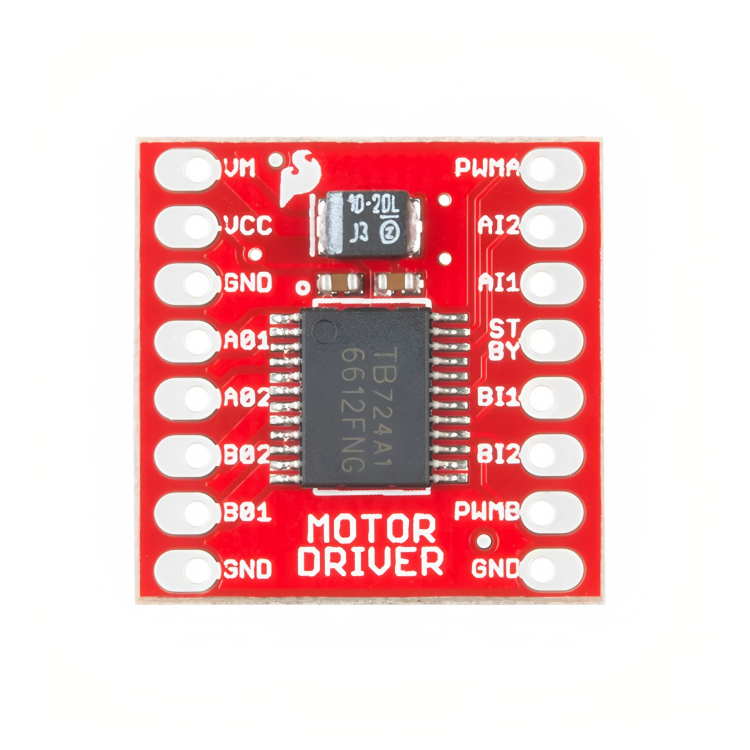

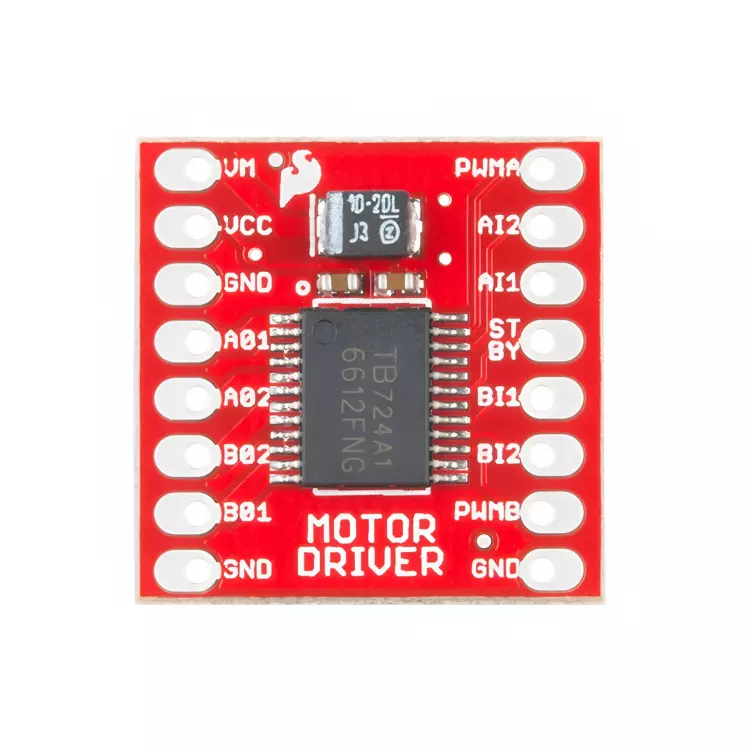

Motor Driver TB6612FNG
TB6612FNG Dual Motor Driver Module – Compact, efficient driver for controlling two DC motors or one stepper motor using PWM signals.
Available Offer
Share :
The TB6612FNG Motor Driver Module is a compact and reliable H-Bridge driver capable of controlling two DC motors or one stepper motor with ease. It uses Toshiba’s TB6612FNG IC, which offers better efficiency, lower voltage operation, and thermal protection compared to older motor drivers like L298N.
With a maximum output current of 1.2A continuous (3.2A peak) per channel and logic levels compatible with both 3.3V and 5V, this module is ideal for use with Arduino, ESP32, Raspberry Pi, and other microcontrollers in robotics, automation, and embedded projects.
✅ Features:
Dual H-Bridge motor driver for 2 DC motors or 1 stepper motor
Higher efficiency and lower heat compared to L298N
Supports both 3.3V and 5V logic level microcontrollers
Compact breakout board with easy solder pins
Built-in thermal shutdown and overcurrent protection
Ideal for battery-powered and low-voltage projects
✅ Applications:
Robotics and smart car platforms
Automated systems and conveyor controls
Stepper motor control in CNC and 3D printer builds
Motorized toys and hobby electronics
IoT and embedded development
