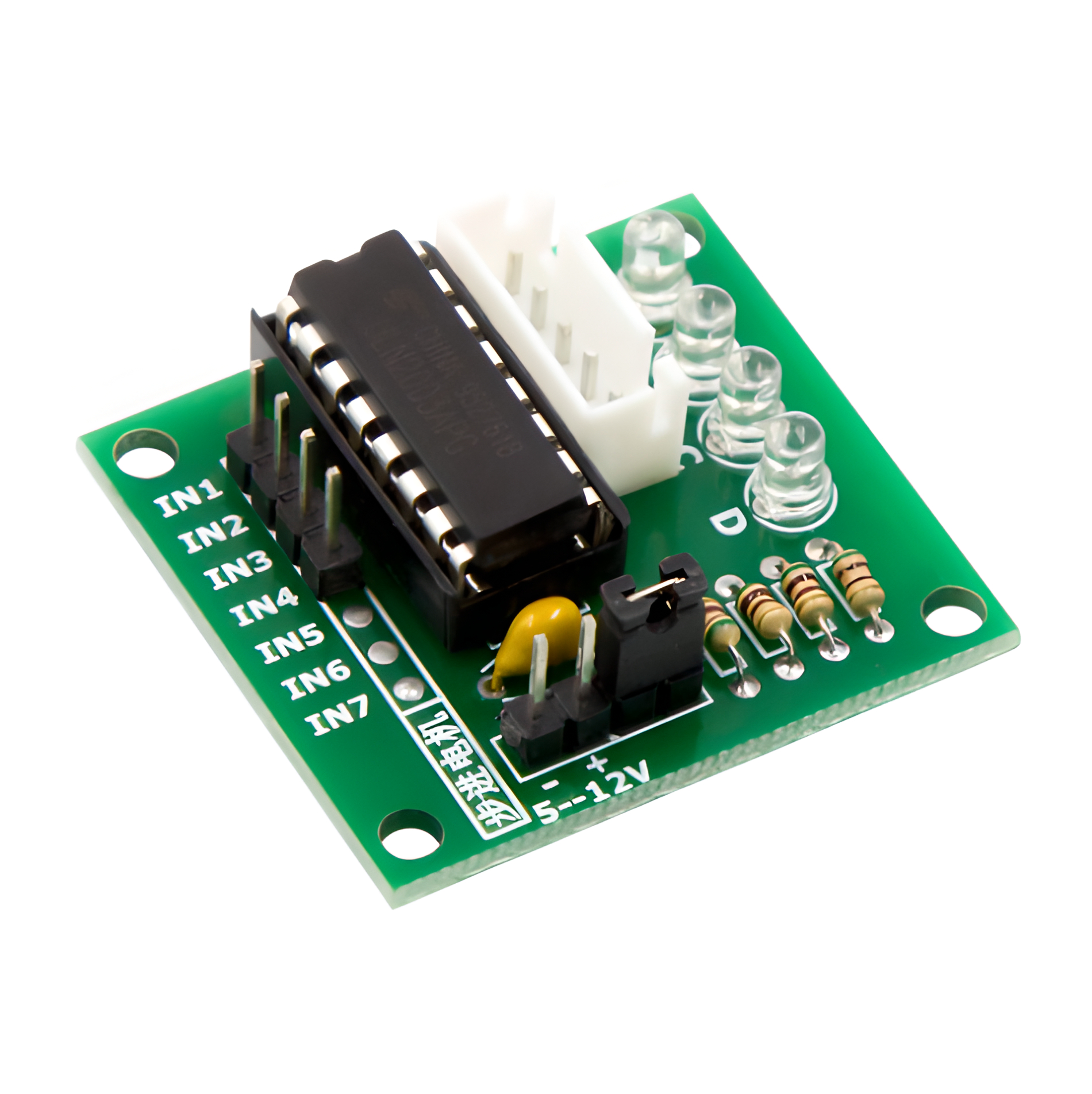

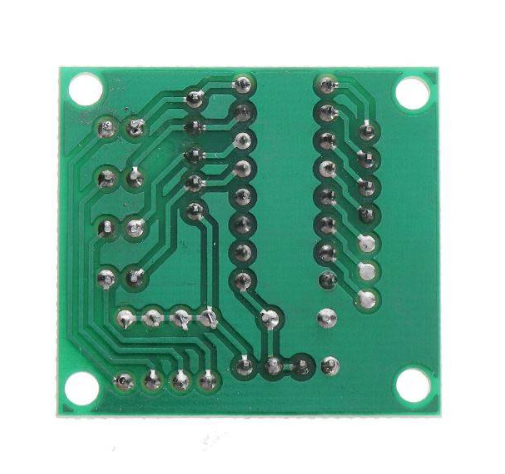

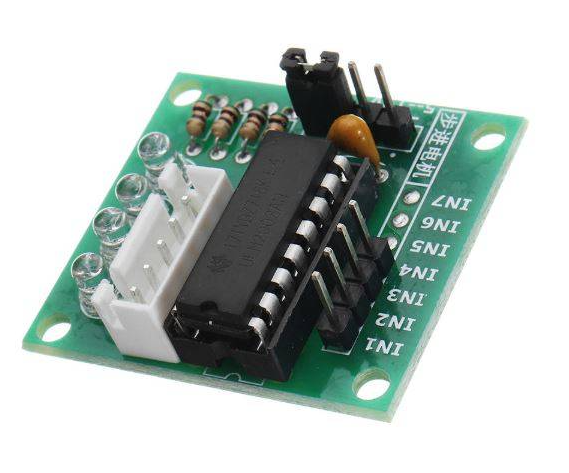

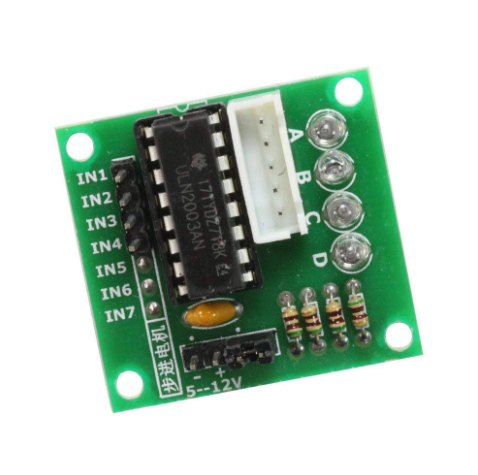

Stepper Motor Driver-ULN2003

Key Features:-

1. Darlington Array: The ULN2003 contains seven Darlington transistor pairs, making it suitable for driving unipolar stepper motors, relays, and other inductive loads.

2. High Current Capability: Each Darlington pair can handle a relatively high current, which is useful for driving stepper motors that require significant current to operate.

3. Clamping Diodes: The ULN2003 includes built-in clamping diodes (also known as flyback or freewheeling diodes) to protect against voltage spikes generated by inductive loads, such as stepper motors. These diodes help prevent damage to the IC.

4. Input Pins: The ULN2003 has seven input pins (IN1 through IN7) that control the corresponding Darlington transistor pairs. By applying logic HIGH or LOW signals to these input pins, you can control the direction and steps of the connected stepper motor.

5. Common Collector Outputs: The outputs of the ULN2003 are common collector outputs, which means they are connected to an external supply voltage. This allows for flexible voltage selection for the connected motor.

6. Versatility: While primarily used as a stepper motor driver, the ULN2003 can also be used for other applications where high-current, high-voltage switching is required.

Functionality:

• The ULN2003 is commonly used to control the rotation of stepper motors. By sequencing the input signals (IN1 through IN7) in a specific pattern, you can make the stepper motor move in precise steps and directions.

• It is often used in open-loop control systems where the position of the stepper motor is determined by the number of steps it takes, rather than relying on feedback mechanisms.

Applications:

• CNC Machines: Controlling the movement of CNC (Computer Numerical Control) machine axes using stepper motors.

• 3D Printers: Driving the stepper motors responsible for moving the printer's print head and build platform.

• Robotics: Used in robotic arms and platforms for precise control of motorized joints and movements.

• Automation: In industrial automation systems for tasks like conveyor belt control and machine automation.

• DIY Electronics Projects: For hobbyists and electronics enthusiasts working on projects that involve stepper motor control.
