When used in sound-related applications, the LM393 can serve as part of a sound detection circuit. Here's a general idea of how it might be used in this context:

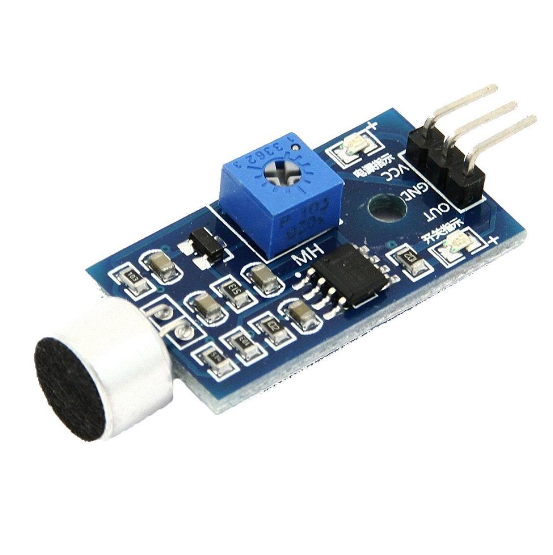

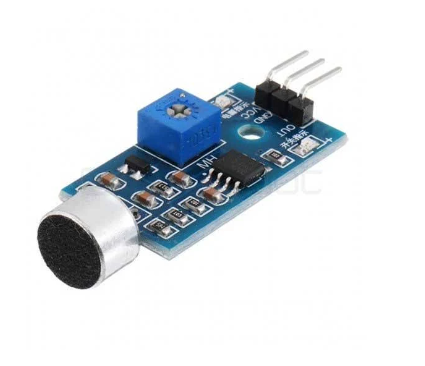

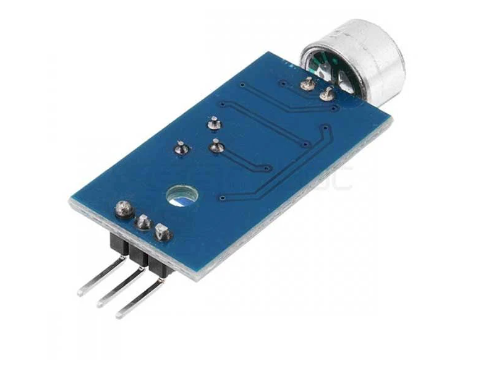

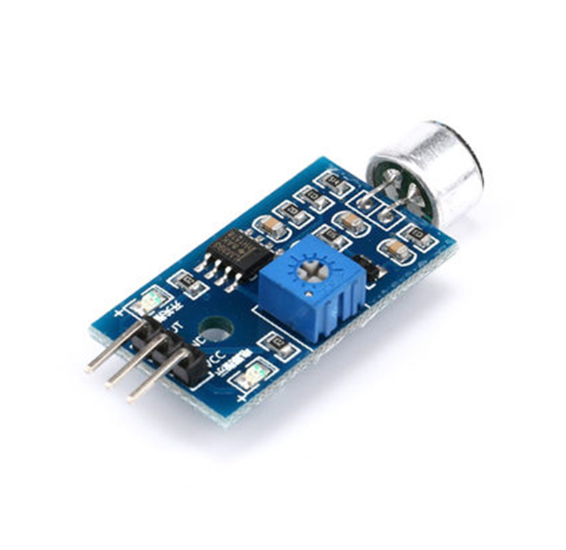

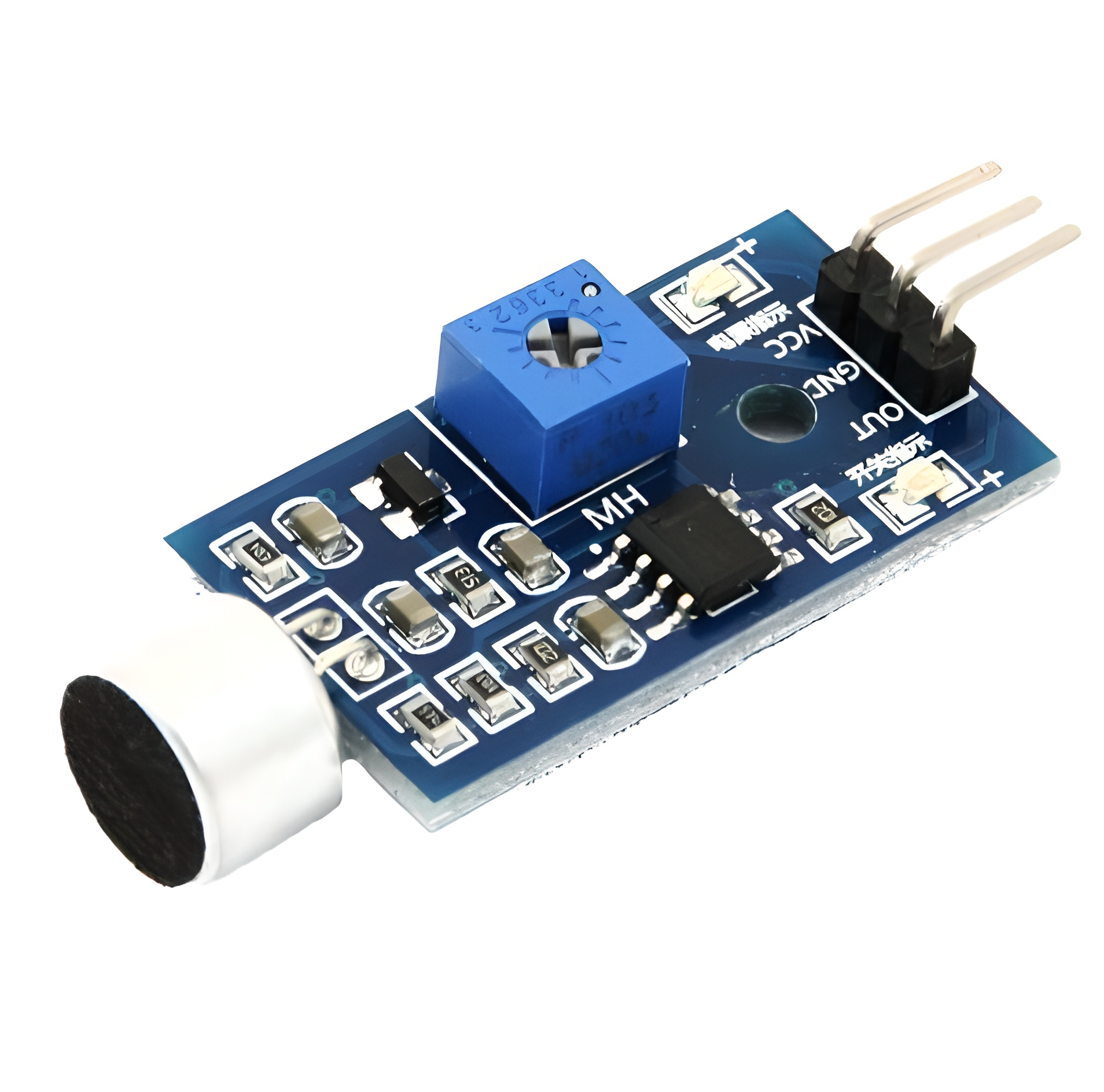

LM393 Sound Detection Circuit:
Microphone/Transducer: The circuit would start with a sound-capturing element, such as an electret microphone or another type of sound transducer. This captures the sound waves and converts them into electrical signals.
Signal Amplification: The weak electrical signals from the microphone might be too small for direct processing. So, an amplification stage could be introduced to boost the signal.
Signal Conditioning: The amplified signal could then be conditioned as needed. This might involve filtering out frequencies outside of the desired range, depending on what type of sound you're trying to detect.
LM393 Comparators: The conditioned signal can be fed into the inverting inputs of the LM393 comparators. The non-inverting inputs of the comparators can be set at reference levels to determine when a sound signal crosses a certain threshold.
Comparator Outputs: When the sound signal's amplitude exceeds the reference threshold set by each comparator, the corresponding comparator output will change state. This can indicate the presence of sound above a certain level.
Output Stage: The outputs of the comparators can be connected to further circuitry or microcontrollers for processing. For instance, you might use these outputs to trigger other actions or alarms based on the detected sound level.
