Sim 900A GSM Module
Rs.1,050.00

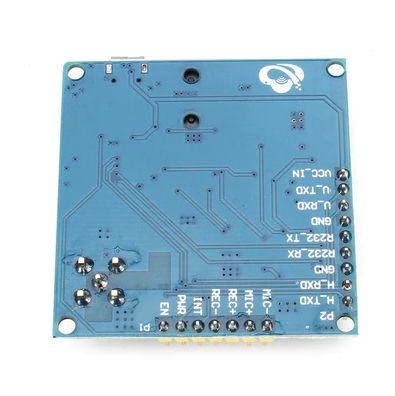

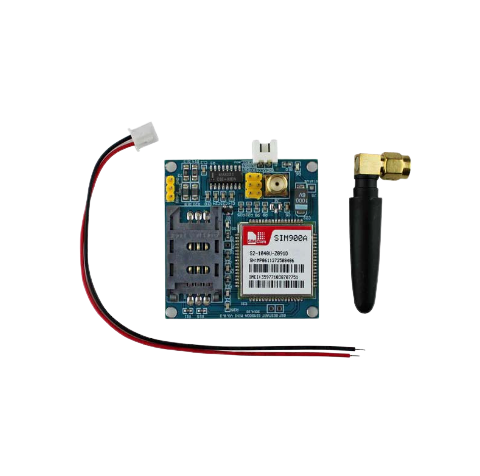

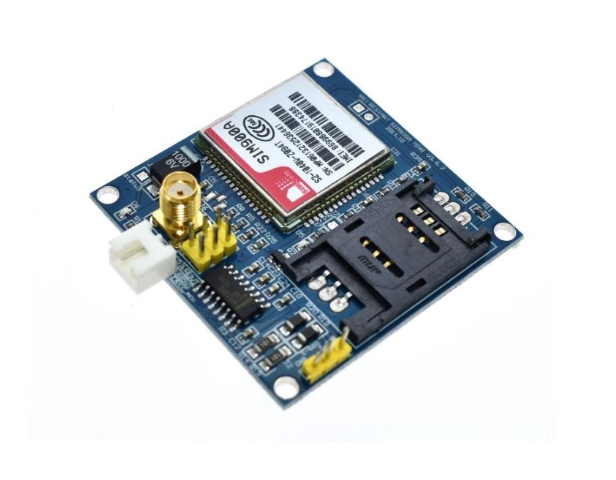

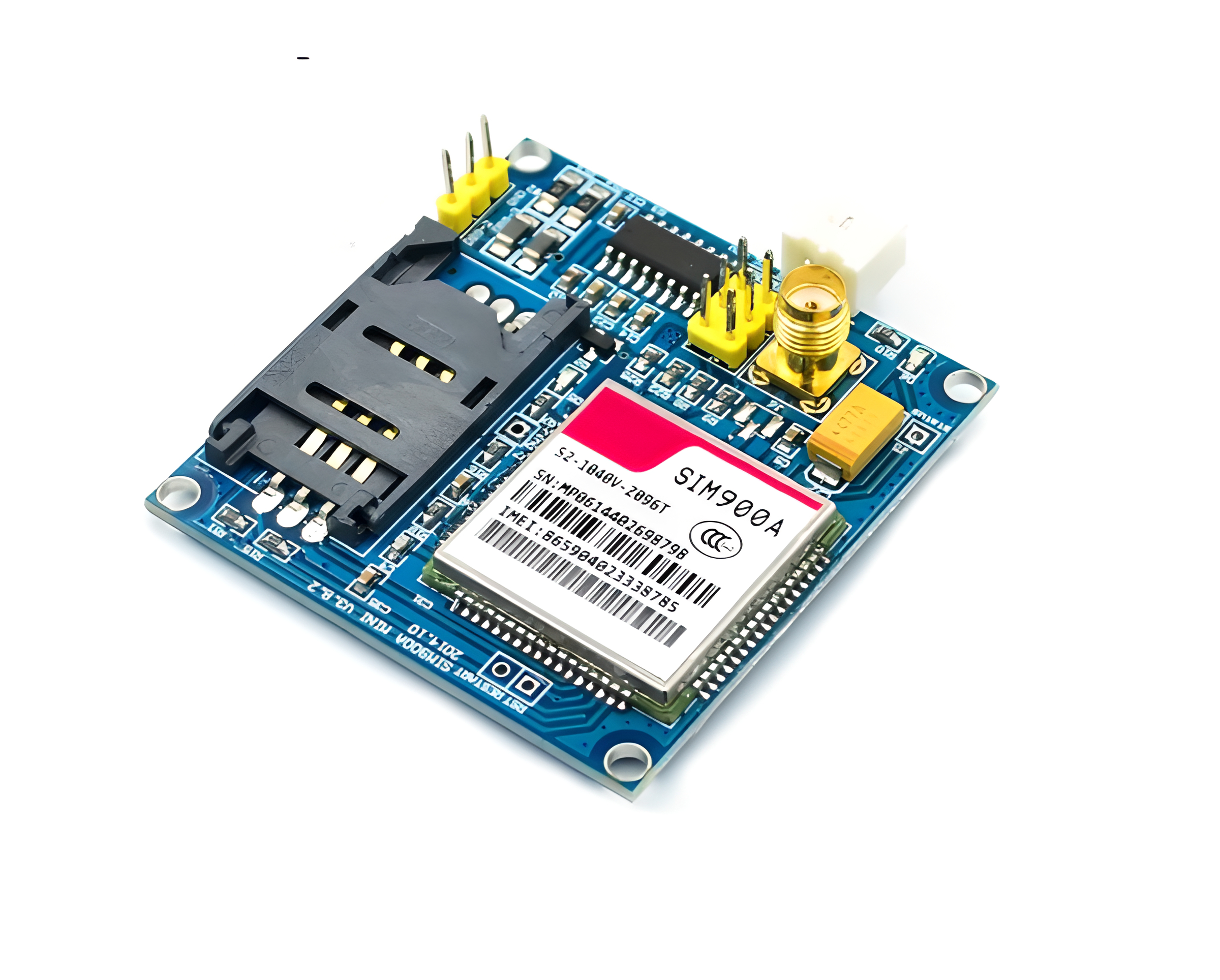

The SIM900A Simcom GSM/GPRS Module with USB (UART) Interface. The SIM900A supports quad-band 850/900/1800/1900 MHz and can transmit voice, SMS, and data information while consuming little power. Using USB to Serial connector and SMA antenna connector are included. The LM317 voltage regulator on board can provide regulated 5V at up to 1A voltage to the board and connecting circuit. An additional Berg strip is provided for GND, +5V, and +9V external connections. It has also the feature of speaker & mic connectivity using berg terminals. It has one silent & important feature that supports the DTMF feature on call.
The GSM900A can communicate with any microcontroller, such as the Raspberry Pi, 8051, PIC, ARM, and AVR.
Product Details
Feature:
- Quad-band 850/900/1800/1900MHz.
- Control via AT commands (3GPP TS 27.007, 27.005, and SIMCOM enhanced AT command set).
- High-Quality Product.
- Configurable baud rate.
- Built-in SIM Card Holder.
- Built-in Network Status LED.
- Low power.
Applications:
- Parking Meter and Taxi Meter
- For Navigation
SPECIFICATION
| Model | SIM900A Simcon GSM/GPRS Module |
| Input Voltage | 12V DC |
| Working Temperature | -40°-90°C |
| Serial Port Interface | USB (UART) |
| Included | Finger Antenna |
| Size (LxBxH) | 65mm*49mm*14mm |
| Origin | Make in India |
