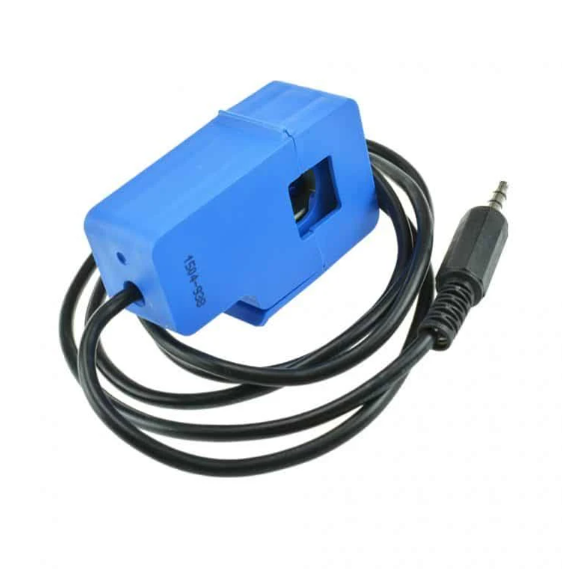

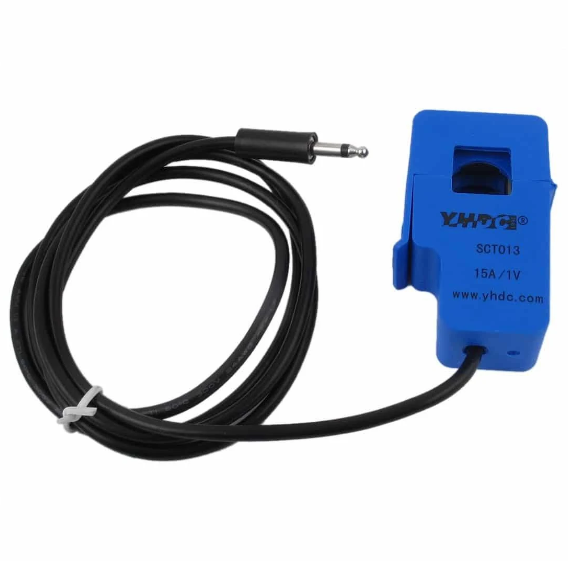

SCT-013-030: Current Sensor - 30 Amps
The SCT-013-030 is a type of non-invasive AC current sensor or clamp sensor designed to measure alternating current (AC) flowing through a conductor without the need for direct electrical contact. These sensors are commonly used in various applications, including energy monitoring, power management, and industrial automation.
It is designed specifically for precise non-invasive measurement of AC currents up to 30A. Ideal for power monitoring, energy management systems, and diverse electrical applications, ensuring accurate and safe current measurement without the need for direct contact with live wires
Non-returnable
SKU - R-0564
Out of stock
Rs.419.00
Share:
Product Details
Key Features:-
Working Principle: The SCT-013-030 sensor works based on the principle of electromagnetic induction. It consists of a split-core ferrite core that can be clamped around a current-carrying conductor, such as a power cable. When AC current flows through the conductor, it generates a magnetic field around it. The sensor's core captures this magnetic field, inducing a voltage in the secondary winding of the sensor. This induced voltage is proportional to the current flowing through the conductor.
Current Rating: The "030" in the product name indicates that this sensor model is designed to measure currents up to 30 amperes (A). It can accurately measure AC currents in the range of 0 to 30 A.
Output Signal: The output of the SCT-013-030 sensor is an analog voltage signal that corresponds to the AC current being measured. The output signal can be in the millivolt range, and the voltage amplitude and phase of the output signal depend on the current amplitude and phase.
Non-Invasive: One of the key advantages of this sensor is its non-invasive nature. It does not require breaking the circuit or physically connecting to the conductor whose current you want to measure. Instead, you can simply clamp the sensor around the conductor.
Accuracy: The accuracy of the sensor can vary depending on the model and manufacturer. It's important to refer to the datasheet or specifications provided by the manufacturer to understand the accuracy and linearity of the sensor at different current levels.
Usage: The SCT-013-030 sensor can be used for energy monitoring, power consumption measurement, current-based control systems, and other applications where AC current measurements are required.
Interface: The sensor typically has a connector that allows you to connect it to an analog input on a microcontroller, microcomputer, or data acquisition system. The output voltage of the sensor can be converted into current values using appropriate calibration.
Safety Precautions: While non-invasive current sensors are generally safer to use than traditional current transformers, it's still important to follow safety guidelines. Ensure that the sensor is rated for the current you intend to measure, and use proper insulation and mounting to prevent accidents.
