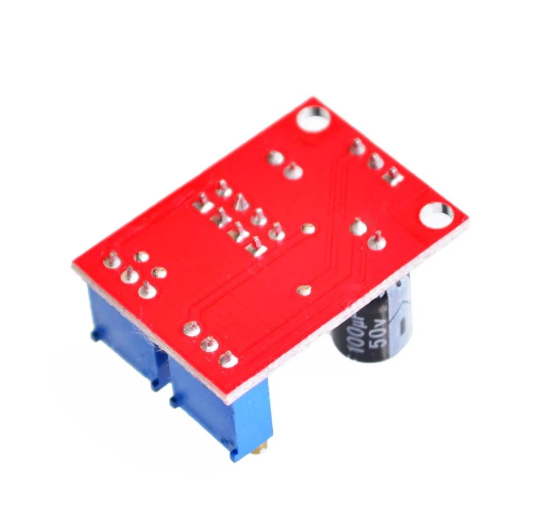

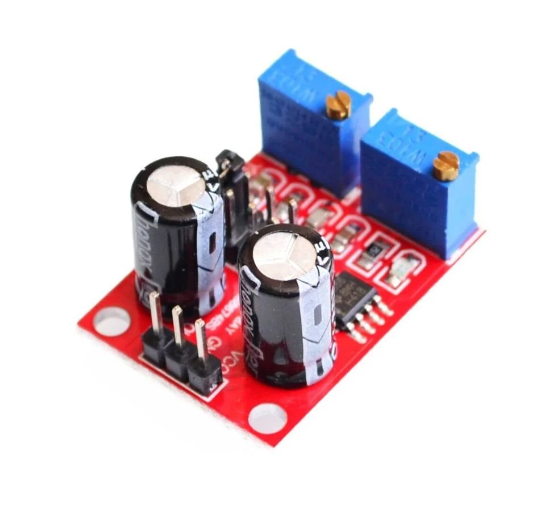

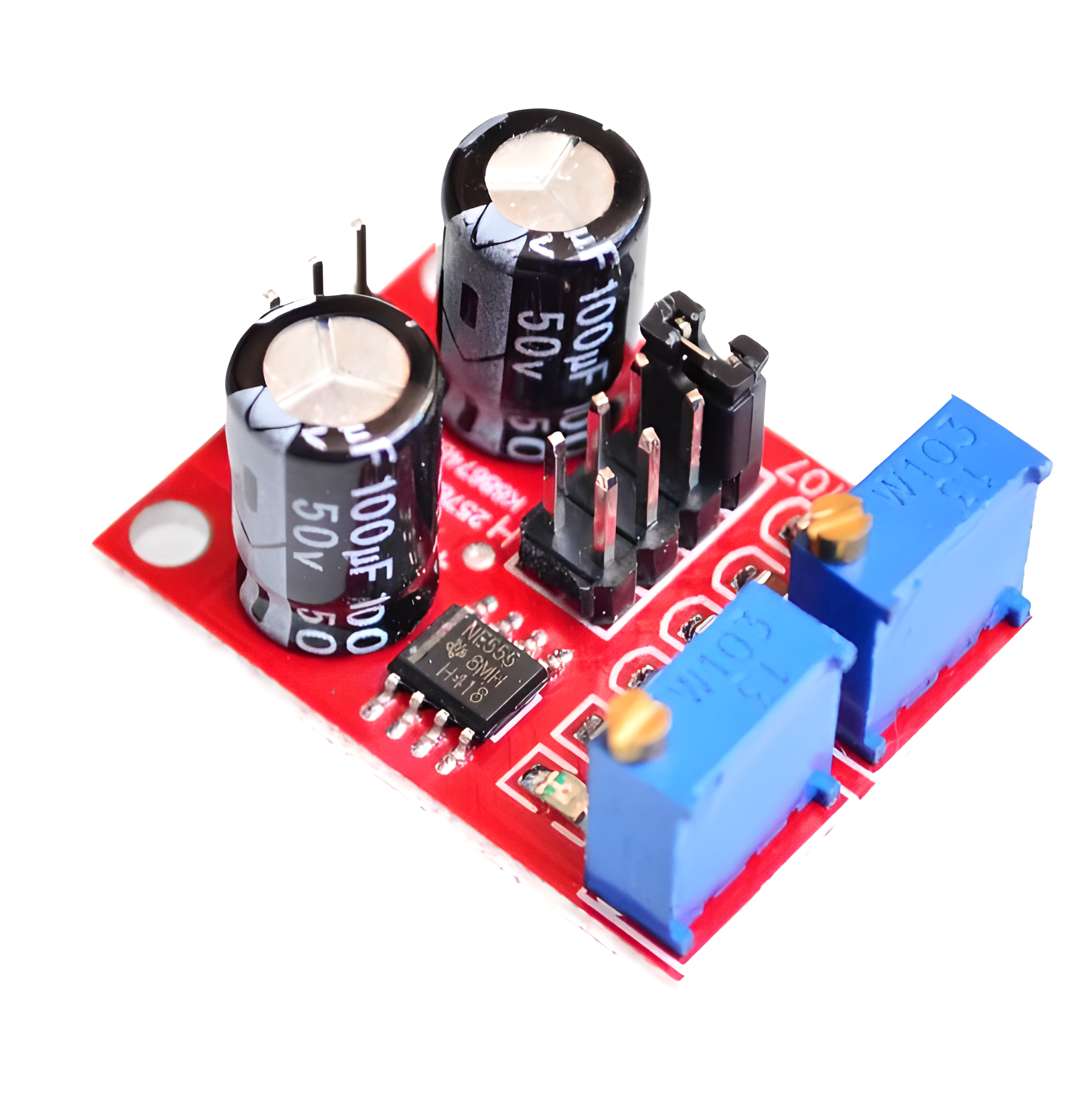

NE555: Square-Wave signal generator module

The NE555 Square Wave Signal Generator is a 5V square wave signal generator with adjustable pulse frequency and duty cycle. It produces a square wave signal that is used in research and development projects. Use to generate a square wave drive signal by driving a stepper motor.

 It is possible to fine-tune the output duty cycle. The duty cycle and frequency cannot be adjusted separately; changing the duty cycle will change the frequency.
Non-returnable
Out of stock
Rs.95.00
Product Details

SPECIFICATIONS

Main ICNE555
Input Voltage5V-15V DC
Input Current≥100mA
Output Amplitude4.2V V-PP to 11.4V V-PP
Max. Output Current≥15mA
Size31x22.2x14.8mm
