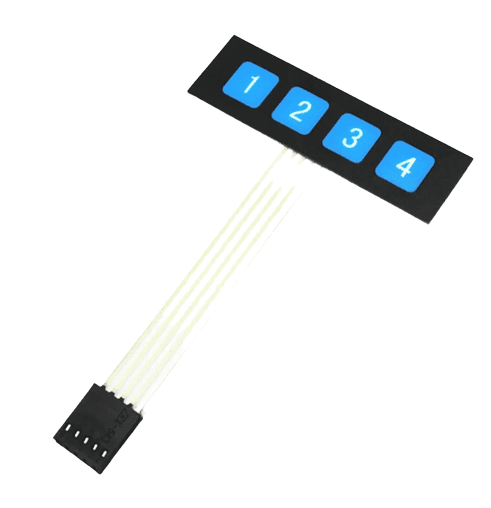

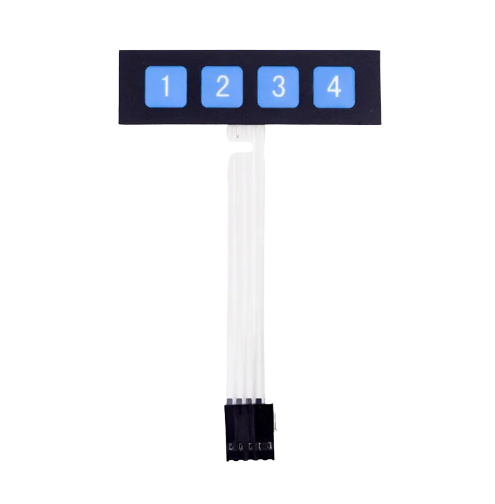

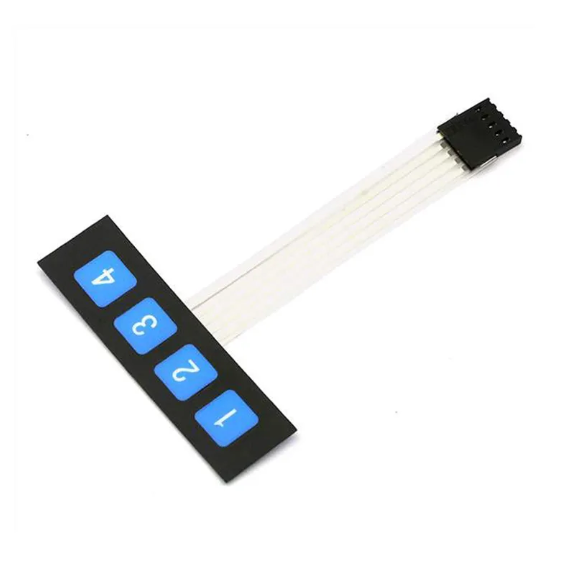

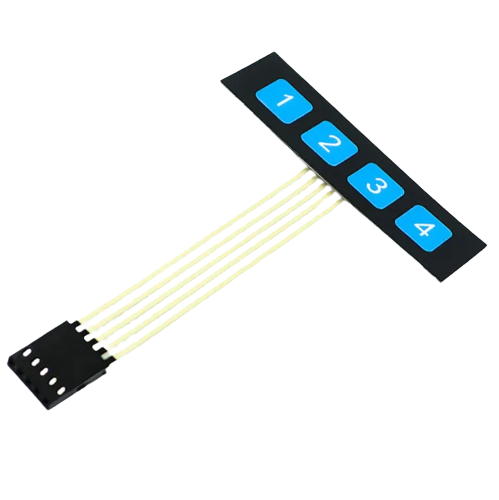

Membrane Keypad - 1x4
Product Details
Key Configuration: A 1x4 keypad has four keys arranged in a single row, resulting in a total of four buttons.
Matrix Layout: The buttons are organized in a matrix configuration, with each button represented by a unique combination of row and column connections. This matrix layout simplifies the wiring and interface with microcontrollers or digital circuits.
Tactile Feedback: Membrane keypads typically provide tactile feedback when a button is pressed, allowing users to feel the button press and confirming the input.
Contact Mechanism: Beneath the buttons, there are conductive traces on a flexible membrane. When a button is pressed, it makes electrical contact between the corresponding row and column traces, registering a keypress.
Compact Design: These keypads are compact and space-efficient, making them suitable for applications with limited space.
Applications: 1x4 membrane keypads are used in various applications where a small number of input options are needed. Examples include remote controls, simple menu navigation, alarm systems, and access control systems.
Wiring: To use a 1x4 membrane keypad, you'll typically connect the rows and columns of the keypad to digital input/output pins on a microcontroller or digital circuit. The microcontroller can then detect button presses by scanning the rows and columns.
Library Support: Depending on your microcontroller platform (e.g., Arduino, Raspberry Pi), there may be libraries or code examples available for interfacing with membrane keypads.
