Voltage Comparator: The LM393 is primarily designed as a voltage comparator IC. It contains two independent voltage comparators within a single package, making it suitable for comparing two analog voltage inputs.
Comparing Voltages: Each comparator within the LM393 compares two input voltage signals, typically labeled as "inverting" (-) and "non-inverting" (+) inputs. The output of each comparator provides a digital logic level signal (high or low) depending on the relative magnitudes of the input voltages.
Open-Collector Outputs: The LM393 has open-collector outputs, which means that it can sink current but cannot source it. This allows for flexibility in connecting external components like resistors and LEDs to the output for various applications.
Voltage Reference: The LM393 can be used to create simple voltage reference or threshold detection circuits. By setting one input to a fixed reference voltage and the other input to a varying voltage, you can detect when the varying voltage crosses the reference threshold.
Supply Voltage: The LM393 typically operates with a wide supply voltage range, often from 2V to 36V. This makes it suitable for both low-voltage and high-voltage applications.
Applications: The LM393 is commonly used in applications such as voltage monitoring, level sensing, window comparators, signal conditioning, and more. It is a versatile IC frequently employed in both analog and digital electronics.

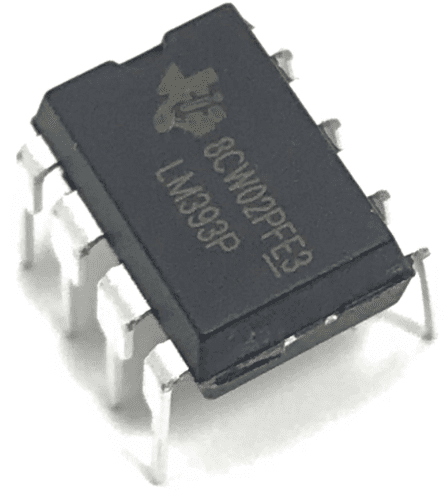

Package Types: The LM393 is available in various package types, including DIP (Dual Inline Package) and surface-mount packages, offering options for different circuit layouts and assembly methods.
