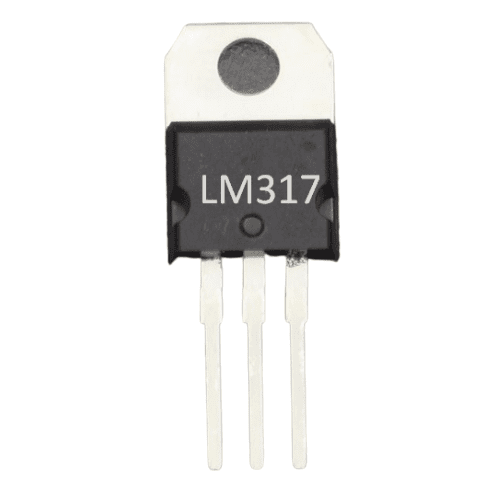

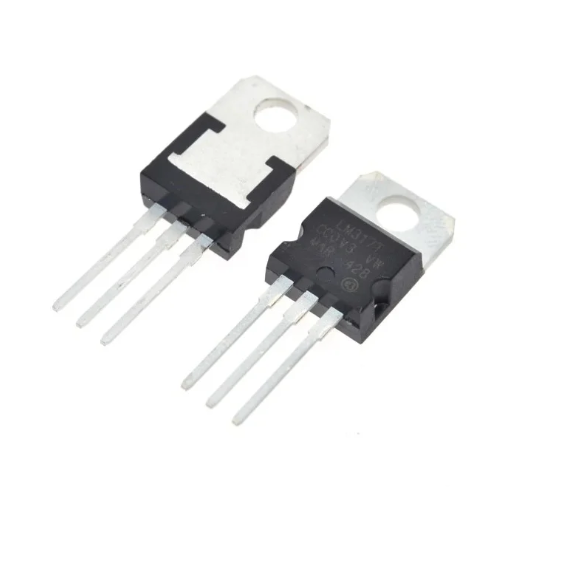

LM317 Voltage Regulator IC

Voltage Regulation: The LM317 is a linear voltage regulator, which means it regulates the output voltage by dissipating excess voltage as heat. It can provide a stable output voltage that is either fixed or adjustable.

Fixed and Adjustable Versions: There are both fixed and adjustable versions of the LM317 available. The fixed versions, such as the LM317T (for a 1.2V output), LM317K (for a 5V output), and LM317L (for a 1.5V output), provide a specific fixed output voltage. The adjustable version, typically labeled as LM317, allows you to set the output voltage using external resistors.

Current Handling: The LM317 can handle a maximum output current of up to 1.5A, depending on the specific variant and heat dissipation considerations. This makes it suitable for a wide range of low to moderate power applications.

Adjustable Output Voltage: In the adjustable version, the output voltage can be precisely set by connecting external resistors between its ADJ (adjust) pin and output terminal.

Input and Output Capacitors: The LM317 often benefits from input and output capacitors to improve voltage stability and reduce noise. Properly chosen capacitors can enhance its performance.

Protection Features: The LM317 provides protection against overcurrent and thermal overload conditions, which helps safeguard the regulator and connected components.

Applications: The LM317 is commonly used in various electronic projects, including power supplies, battery chargers, voltage references, and other applications requiring a stable and regulated voltage supply.
