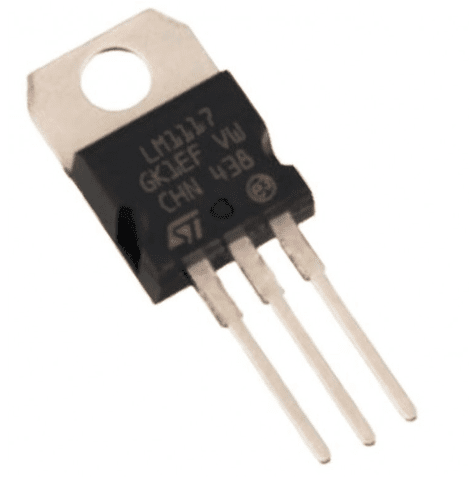

LM1117 Voltage Regulator IC

Voltage Regulator: The LM1117 is a linear voltage regulator, meaning it regulates the output voltage by dissipating excess input voltage as heat. It is part of the LM117 series of voltage regulators.

Output Voltage: The specific LM1117 variant you mentioned is configured to provide a fixed output voltage of 3.3 volts (3.3V). It is commonly used to power components, circuits, or microcontrollers that require a stable 3.3V supply voltage.

Low Dropout: The term "low dropout" refers to the ability of the LM1117 to maintain a stable output voltage even when the input voltage is only slightly higher than the desired output voltage. This feature makes it suitable for applications where the input voltage may be close to the output voltage.

Current Handling: The LM1117 can typically handle a maximum output current of around 800mA to 1A, depending on the specific variant and package type. This current rating is sufficient for powering many low to moderately powered electronic devices.

Package Types: The LM1117 is available in different package types, including the TO-220 and TO-252 packages, which determine its physical size and thermal characteristics.

Input and Output Capacitors: To ensure stable and noise-free operation, it is often recommended to use input and output capacitors with the LM1117. These capacitors help filter and stabilize the voltage.

Applications: The LM1117 3.3V regulator is commonly used in various electronic projects, including Arduino-based systems, Raspberry Pi add-ons, and other microcontroller and sensor applications.
