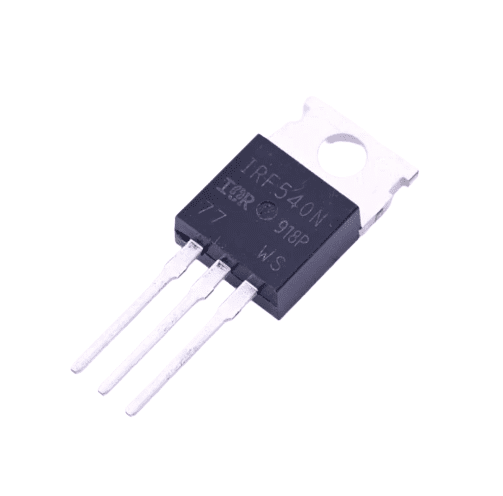

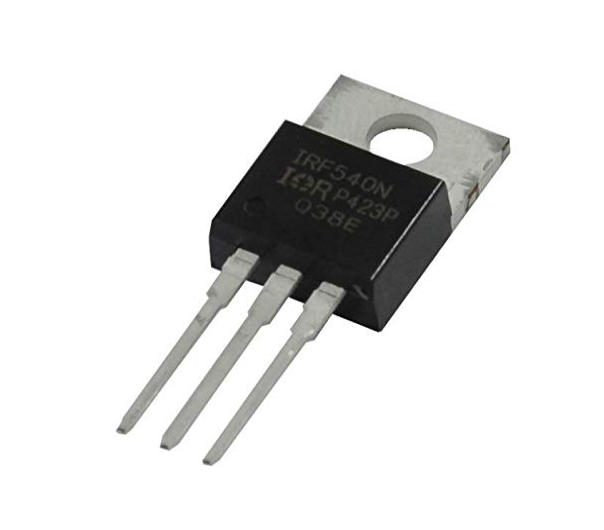

MOSFET Type: The IRF540 is an N-channel power MOSFET. N-channel MOSFETs are typically used for switching applications, where the load is connected to the drain terminal.
Voltage and Current Ratings: The IRF540 is known for its high voltage and current ratings, making it suitable for applications that require the control of substantial electrical power. It can handle voltage levels up to several hundred volts and currents in the tens of amperes.
Enhancement Mode: The IRF540 operates in enhancement mode, which means it requires a positive gate-source voltage to turn on and conduct current. Applying a voltage greater than its threshold voltage to the gate terminal allows current to flow from the drain to the source.
Low On-Resistance (RDS(on)): The IRF540 typically has a low on-resistance, which minimizes power dissipation and heating during operation. This characteristic makes it efficient for high-power switching applications.
Applications: The IRF540 is commonly used in various applications, including power amplifiers, motor control, power supplies, voltage regulation, and electronic switching circuits. It is particularly popular in applications that require switching high loads such as motors and heaters.
Package Type: The IRF540 is available in different package types, such as TO-220 and TO-247, which provide good thermal performance and ease of mounting.
