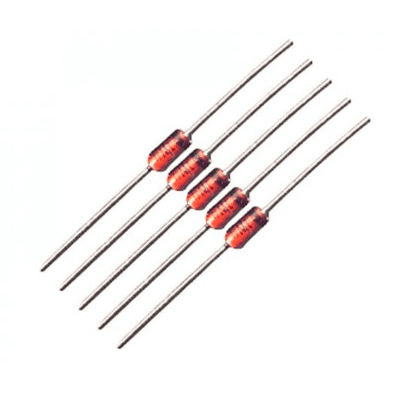

IN4148 Zener Diode

Key Features:-

1. Signal Diode: The 1N4148 is a general-purpose signal diode used for various low-power applications, including signal rectification, protection, and switching.

2. Fast Switching: It is known for its fast switching speed and low forward voltage drop, making it suitable for high-frequency and low-power applications.

3. Voltage Rating: The 1N4148 typically has a peak reverse voltage rating (reverse breakdown voltage) of 100 volts (V). This means it can withstand a reverse voltage of up to 100V before breakdown occurs.

4. Low Leakage Current: It has a relatively low reverse leakage current, which is important in applications where a diode is used to block current in one direction.

Applications:

• Signal Rectification: It is used to convert alternating current (AC) signals into direct current (DC) signals by allowing current to flow in one direction while blocking it in the other direction.

• Clipping and Clamping: In signal processing circuits, it can be used to clip or clamp the amplitude of signals to a specific voltage level.

• Protection: It is often used for reverse voltage protection, preventing voltage from flowing in the wrong direction and damaging sensitive components.

• Switching: Due to its fast switching characteristics, the 1N4148 can be used in low-power switching applications, such as turning small loads on and off.
