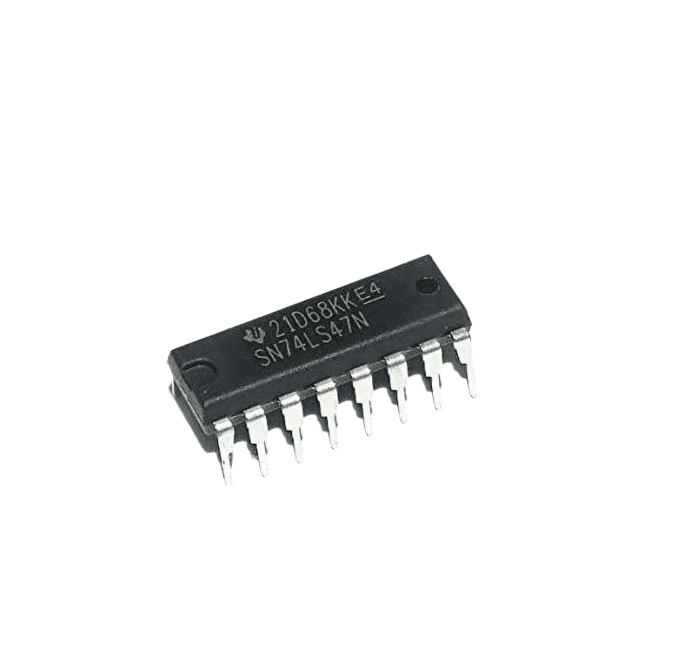

IC7447: BCD to 7 Segment Display/Decoder IC

BCD-to-7-Segment Decoder: The primary function of the 7447 IC is to decode BCD inputs into signals that can drive a 7-segment LED display. BCD is a binary representation of decimal numbers, where each decimal digit is represented by a 4-bit binary code.

4-Bit BCD Inputs: The IC has four BCD input lines labeled A, B, C, and D, which accept a 4-bit binary input (0000 to 1001, representing decimal digits 0 to 9).

7-Segment Outputs: The 7447 IC has seven output pins labeled a, b, c, d, e, f, and g, which are connected to the segments of a 7-segment LED display. These outputs provide the necessary signals to illuminate the segments and display decimal digits.

Blanking Input (BI): The IC also has a Blanking Input (BI) pin, which can be used to control whether the display is on or off. When BI is active (typically pulled low), the display is blanked or turned off.

Latch Function: The 7447 IC features a latching function, which means that it can store the BCD input data and display it on the 7-segment display until new data is received. This allows for stable and synchronized display updates.

BCD Inputs and Outputs: The IC uses the BCD inputs to determine which decimal digit to display, and the corresponding 7-segment outputs are activated to display that digit.

Applications: The 7447 IC is commonly used in digital clocks, calculators, scoreboards, and any application where numeric data needs to be displayed on a 7-segment LED display.

Power Supply Voltage: The IC typically operates with a power supply voltage in the range of 4.75V to 5.25V for standard TTL logic families. Variants with different voltage ratings are also available.
