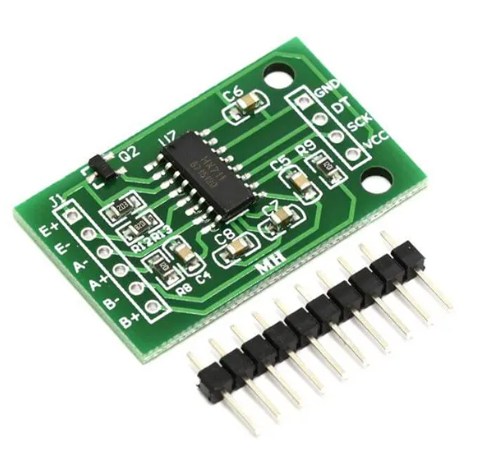

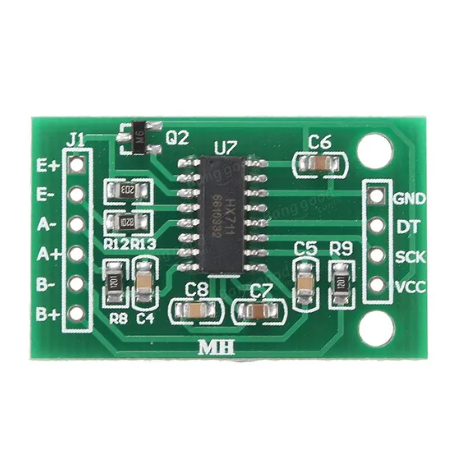

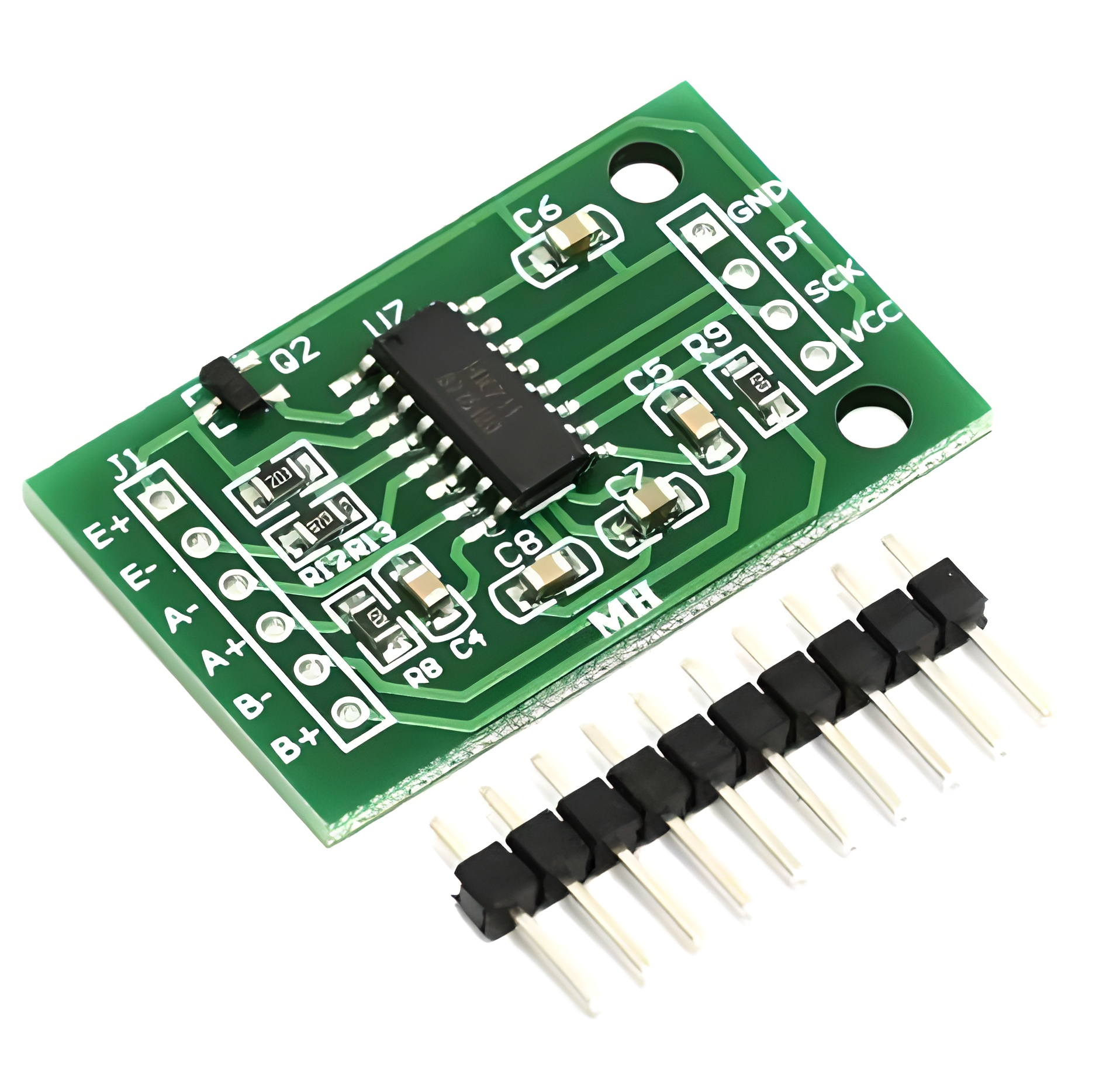

Name: HX-711 Load Cell Amplifier
SKU: R0393 H-3
Price: 70.0 INR
Availability: OutOfStock

HX711 module is a Load Cell Amplifier breakout board for the HX711 IC that allows you to easily read load cells to measure weight. This module uses 24 high precision A/D converter chip HX711.

Out of stock

Non-returnable

Rs.70.00

Product Details

HX711 is specially designed for the high precision electronic scale design, with two analog input channel, the internal integration of 128 times the programmable gain amplifier.

The input circuit can be configured to provide a bridge type pressure bridge (such as pressure, weighing sensor mode), is of high precision, low cost is an ideal sampling front-end module.

HX711 is an IC that allows you to easily integrate load cell into your project. No need of any amplifiers or dual power supply just use this board and you can easily interface it to any micro-controller to measure weight.

Specifications:

Differential input voltage: ±40mV
Operating Voltage: 5 ~ 10V
Operating current: <10 mA
Data accuracy: 24 bit (24 bit A / D converter chip.)
Refresh frequency: 10/80 Hz
Size: 24x16mm
