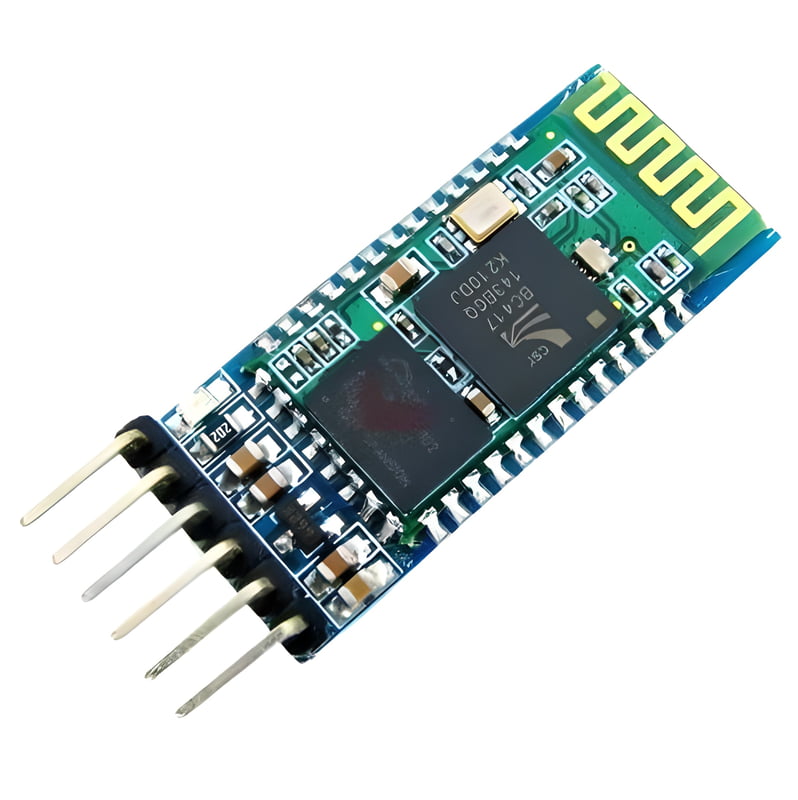

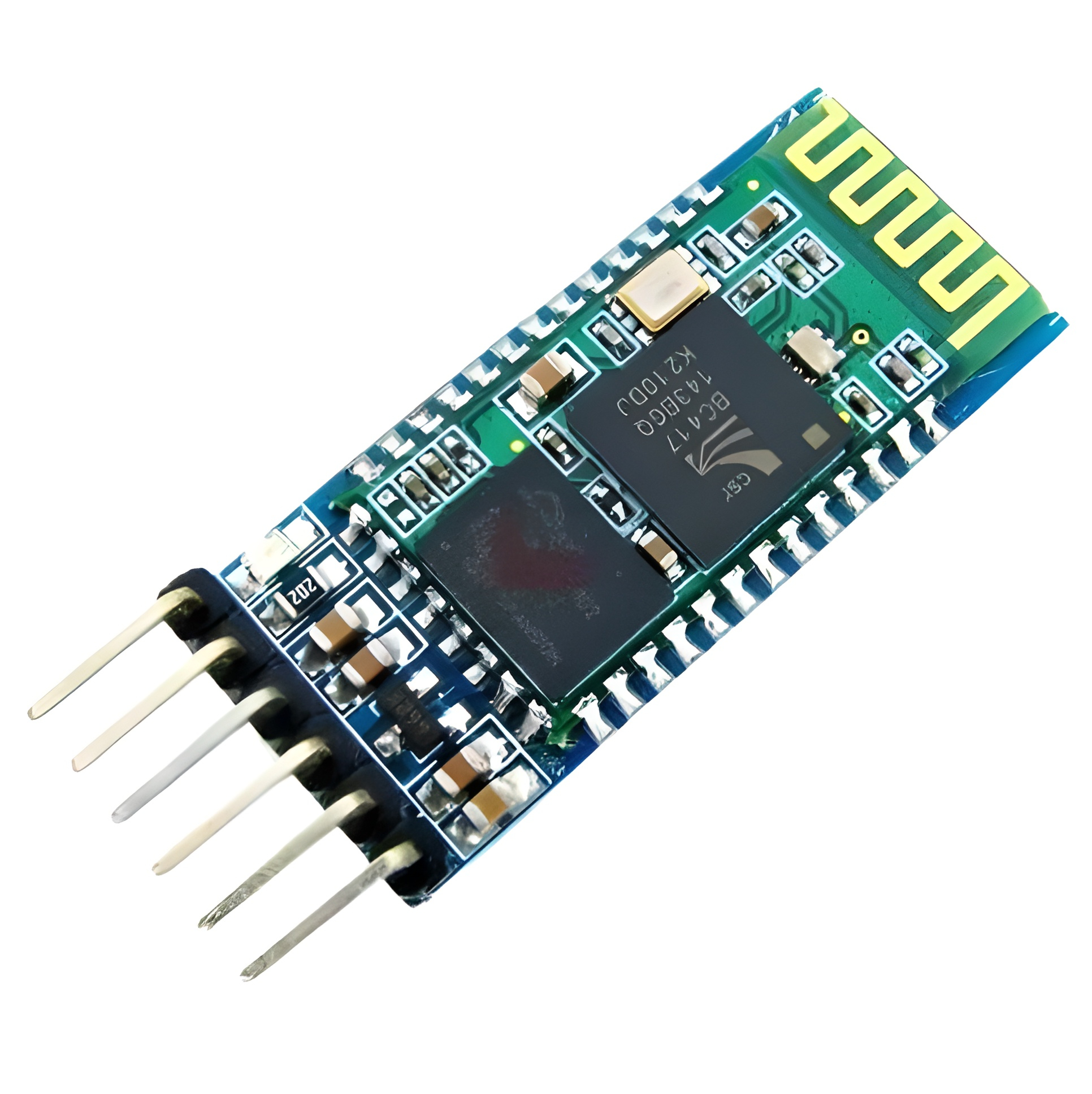

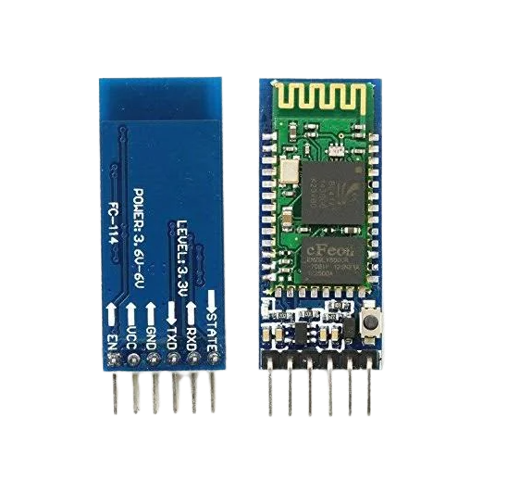

HC-05 Bluetooth Module
Rs.259.00
The HC-05 is a widely used Bluetooth module that allows for wireless communication between electronic devices. It's commonly used in DIY electronics projects and applications where data needs to be transmitted wirelessly between devices, such as microcontrollers, Arduino boards, and various electronic gadgets. Here's an overview of the HC-05 Bluetooth module:
Bluetooth Version: The HC-05 module is based on Bluetooth version 2.0 + EDR (Enhanced Data Rate), making it suitable for a wide range of applications. There is also an HC-06 module, which is similar but mainly designed for slave mode operation.
Product Details
Serial Communication: The HC-05 communicates with other devices through a serial UART (Universal Asynchronous Receiver-Transmitter) interface. This means you can easily connect it to a microcontroller or any device with UART support for wireless data exchange.
Master and Slave Modes: The HC-05 can be configured to operate as either a master or a slave device. In master mode, it can initiate connections with other Bluetooth devices, while in slave mode, it can accept incoming connections.
Pairing and Authentication: The module supports pairing and authentication mechanisms to establish secure Bluetooth connections between devices. You can set up a PIN code for security.
Voltage Levels: The HC-05 typically operates at 3.3V, but some modules can be used at 5V with a voltage level translator or voltage divider for the UART signals.
Operating Range: The effective operating range of the HC-05 module is typically around 10 meters (approximately 33 feet), depending on factors like signal interference and the presence of obstacles.
AT Commands: You can configure the HC-05 module using AT commands. These commands allow you to change settings like the Bluetooth device name, baud rate, pairing code, and more.
LED Indicators: Most HC-05 modules have LED indicators to provide status information. They often indicate power, Bluetooth connectivity, and data transmission.
Applications: The HC-05 is used in various applications, including wireless data transfer between a smartphone and an Arduino or other microcontroller, Bluetooth-enabled home automation, and remote control of electronic devices.
Compatibility: The module is compatible with a wide range of microcontrollers and development boards, making it a popular choice for hobbyists and electronics enthusiasts.
When using the HC-05 Bluetooth module, it's essential to refer to the module's datasheet and documentation to understand its pinout, AT commands, and configuration options.
