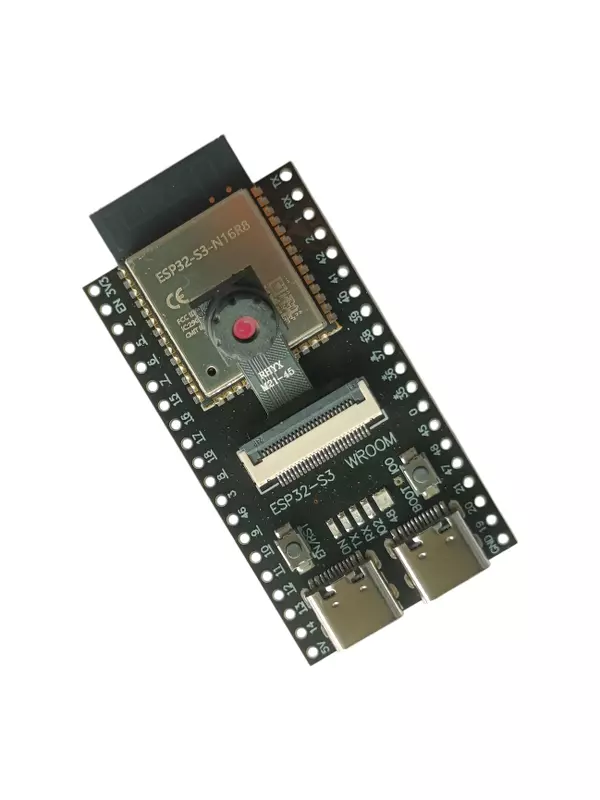

ESP32-S3 N16R8 Development Board with Camera Module
Product Details
The ESP32-S3-N16R8 Development Board with RHYX M21-45 Camera is a compact development platform designed for IoT, robotics, automation, camera-based and embedded vision applications.
Powered by the ESP32-S3 dual-core Xtensa LX7 processor running up to 240MHz, the board provides integrated 2.4GHz Wi-Fi and Bluetooth 5 LE connectivity. The onboard camera interface allows the supplied RHYX M21-45 camera module to be connected directly to the development board.
Dual USB Type-C ports provide convenient connectivity for development, while the GPIO connections allow sensors, displays, motor drivers, relays and other modules to be integrated into projects. The board can be developed using Arduino IDE, ESP-IDF and MicroPython.
Key Features
- ESP32-S3 dual-core Xtensa LX7 processor
- Clock speed up to 240MHz
- Built-in 2.4GHz Wi-Fi
- Bluetooth 5 LE
- Camera interface
- Includes RHYX M21-45 camera module
- Dual USB Type-C ports
- GPIO breakout for prototyping
- Supports Arduino IDE, ESP-IDF and MicroPython
- Suitable for IoT, robotics and embedded vision applications
Applications
AI and embedded vision projects, image capture and processing, camera-based robotics, IoT devices, smart automation, wireless monitoring, educational projects and prototype development.
Package Includes
- ESP32-S3-N16R8 Development Board
- RHYX M21-45 Camera Module
- Male Header Strips
