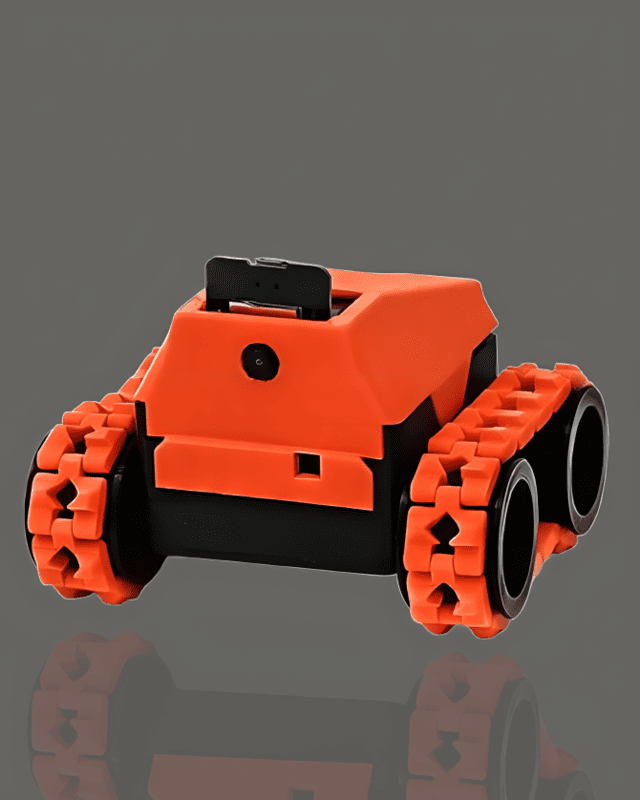

The FPV Tank Kit Using ESP32-CAM is a compact, Wi-Fi-enabled robot designed for live video streaming and web-based remote control. Inspired by the SMARS-style robot, it delivers a true First-Person-View (FPV) experience that can be accessed directly from your smartphone or PC — no additional app or controller required.
Equipped with the ESP32-CAM module, the robot streams real-time RGB video and allows complete movement control with intuitive on-screen buttons. The L293D motor driver ensures smooth, precise tank movement, while the onboard LED provides visibility in darker environments. This kit is ideal for STEM learning, IoT experiments, and personal robotics projects.
Note:
Complete wiring diagrams and code are included in the user manual.
Motor and switch connections require manual soldering.
Handle the 1S Li-Po battery carefully; do not discharge below 3 V to prevent permanent damage.
⚙️ Features
ESP32-CAM Module: Wi-Fi-enabled MCU with integrated camera for live RGB565 video streaming.
Web-Based Interface: Access and control via any browser — no app needed.
Motor Driver Compatibility: Works with L293D or similar H-bridge drivers.
Directional Movement: Forward, backward, left, right, and stop control.
LED Light Control: Toggle onboard light for night or low-light operation.
Auto Wi-Fi Reconnect: Restores connection automatically after power or signal loss.
PSRAM Optimized: Higher frame rate and smoother streaming when PSRAM is active.
User-Friendly UI: Clean and mobile-friendly web layout for intuitive control.
📦 Package Includes
1 × ESP32-CAM Module with USB Cable
1 × 3D-Printed FPV Tank Body
1 × L293D Motor Driver Module
1 × 3.7 V 400 mAh Li-Po Battery
1 × 9 V Battery
2 × Push Switches
2 × N20 Motors
1 × 9 V Battery Connector
1 × Female-to-Female Jumper Wires
1 × Male-to-Female Jumper Wires
1 × User Manual (Code + Circuit Diagrams)
