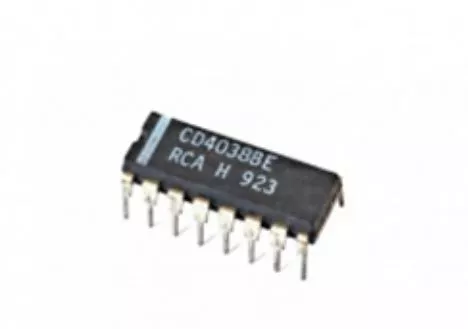

CD4038 -Counter IC
The CD4038 is a counter and divider integrated circuit (IC) that is commonly used in various digital counting and frequency division applications. It is part of the CMOS 4000 series of digital logic ICs. The CD4038 is designed to provide a versatile solution for frequency division, pulse generation, and counter functions.
Non-returnable
SKU - R-0285
Rs.70.00
Share:
Product Details
Here are some key features and functions of the CD4038 counter IC:
Decade Counter: The CD4038 is a 5-stage Johnson counter, also known as a decade counter. It has 10 outputs (Q0 to Q9), which represent the binary counting sequence from 0000 to 1001 in one cycle.
Divide-by-N Function: The CD4038 can be configured to divide the input clock signal by a specific factor, N, where N is any value from 2 to 10. This makes it useful for frequency division applications.
Multiplexed Output: The outputs (Q0 to Q9) are multiplexed, meaning that only one output is active (high) at a time during the counting sequence. The multiplexed output allows the IC to reduce the number of pins required for the output connections.
Control Inputs: The CD4038 includes control inputs such as CLK (clock input), R (reset), and ENABLE. These inputs allow you to control the counting behavior and reset the counter if needed.
Binary/Decade Output: The CD4038 provides an option to select between binary counting (Q0-Q9) and decade counting (B0-B3) through the use of the BINARY/DECADE (B/D) input pin.
Ripple Blanking Output: The Q5 output can be used for ripple blanking purposes, which is helpful when cascading multiple counter stages.
Wide Operating Voltage Range: The CD4038 operates over a wide supply voltage range, typically from 3V to 18V, making it suitable for various digital logic applications.
CMOS Technology: The IC is fabricated using complementary metal-oxide-semiconductor (CMOS) technology, which provides low power consumption and good noise immunity.
Applications of the CD4038 counter IC include:
Frequency Division: The CD4038 can be used to divide the frequency of an input clock signal by a fixed factor, making it useful in frequency synthesizers and clock generation circuits.
Pulse Generation: It can generate specific pulse patterns or waveforms with controlled timing and repetition rates.
Digital Counting: The IC can be used in digital counters for counting events, pulses, or other digital signals.
Sequencing and Timing: It can play a role in various sequencing and timing applications where precise control over timing sequences is required.
