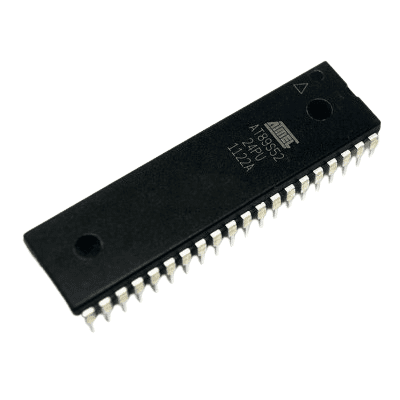

Atmel AT89S52 8-bit Microcontroller IC

Microcontroller Core: The AT89S52 is based on the Intel 8051 microcontroller architecture, which features an 8-bit CPU core. It operates at a clock frequency of up to 33 MHz.

Flash Memory: It has 8KB of Flash memory for program storage, where you can load your embedded software. This Flash memory is erasable and programmable, making it suitable for firmware updates.

RAM: The IC includes 256 bytes of RAM (Random-Access Memory) for data storage and manipulation during program execution.

I/O Pins: The AT89S52 provides a variety of digital I/O pins. It typically comes in a 40-pin dual in-line package (DIP) with 32 I/O pins.

Timers and Counters: The microcontroller includes three 16-bit timers/counters (Timer 0, Timer 1, and Timer 2) and a 9-bit timer/counter (Timer 2). These timers can be used for various timing and control applications.

Serial Communication: It supports serial communication through a UART (Universal Asynchronous Receiver-Transmitter), which allows for asynchronous serial data transmission and reception.

Clock Options: The AT89S52 can be configured to use an external crystal oscillator or an external clock source as its clock input.

Interrupts: The microcontroller supports both hardware and software interrupts, allowing it to respond to external events and perform multitasking.

On-Chip Oscillator and Clock Circuitry: It includes an on-chip oscillator and clock circuitry, simplifying the external component requirements for clock generation.

Power-Saving Modes: It offers power-saving modes such as Idle and Power-Down modes, which are useful for reducing power consumption in battery-powered applications.

Programming: You can program the AT89S52 using a standard 8051-compatible programmer and assembly or C language with an appropriate compiler.

Applications: The AT89S52 has been used in a wide range of applications, including industrial automation, embedded control systems, home appliances, educational projects, and more.
