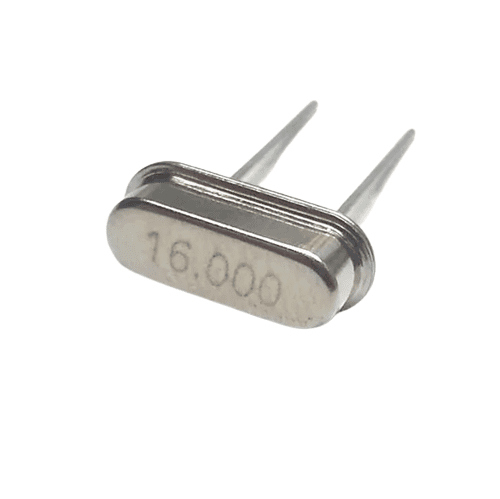

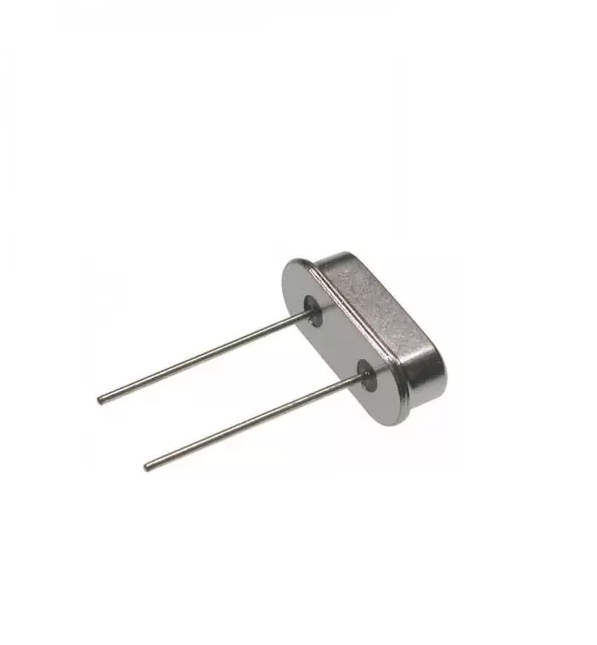

16 Mhz Crystal Oscillator (2-pin)

Key Features:-

1. Frequency Accuracy: Crystal oscillators are known for their high-frequency accuracy and stability. They provide a reliable reference clock signal for timing-sensitive applications.

2. Compact Size: Crystal oscillators are typically small and easy to integrate into printed circuit boards (PCBs).

3. Two-Pin Configuration: These oscillators usually have two pins (usually labeled as "OUT" and "GND" or "VCC" and "GND") for connection to the circuit. They are straightforward to use and connect.

4. Low Jitter: Crystal oscillators produce low jitter signals, making them suitable for applications that require precise timing, such as microcontroller-based systems and communication devices.

Applications:

1. Microcontroller Clock Source: Crystal oscillators are commonly used as the clock source for microcontrollers and microprocessors. They provide the necessary timing for executing instructions and maintaining accurate system time.

2. Communication Systems: Crystal oscillators are used in communication equipment, including radios, transceivers, and network devices, to generate carrier frequencies and synchronize data transmission.

3. Digital Electronics: These oscillators are used in digital logic circuits, including counters, timers, and frequency dividers, to generate clock signals for digital components.

4. Real-Time Clocks (RTCs): Crystal oscillators can be used as the clock source for real-time clock modules, ensuring accurate timekeeping in devices such as alarm clocks and data loggers.

5. Frequency Synthesis: Crystal oscillators serve as stable reference frequencies for phase-locked loops (PLLs) and frequency synthesizers, allowing the generation of multiple frequencies.

6. Measurement Instruments: Oscilloscopes, signal generators, and other test and measurement equipment use crystal oscillators for accurate timebase and signal generation.
