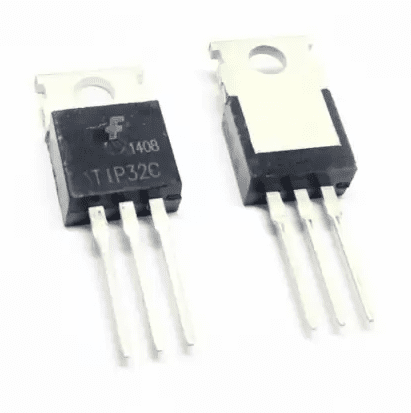

TIP32 PNP Transistor

Transistor Type: The TIP32 is a type of bipolar junction transistor (BJT). It is classified as an NPN transistor, which means it is composed of three layers of semiconductor material: N-type (Negative), P-type (Positive), and N-type (Negative).

Amplification: The primary purpose of the TIP32 is to amplify current. It can handle relatively high currents and is often used in applications where a small input current needs to control a larger output current.

Collector-Base-Emitter Pinout: The TIP32 has three pins: Collector (C), Base (B), and Emitter (E). Current flows from the Collector to the Emitter when a small current is applied to the Base.

Maximum Ratings: The TIP32 has specific maximum ratings, including maximum collector current (IC), maximum collector-emitter voltage (VCE), and maximum power dissipation (PD). These ratings should not be exceeded to prevent damage to the transistor.

Applications: The TIP32 is commonly used in a variety of electronic applications where high-current switching or amplification is required. It can be found in power amplifiers, audio amplifiers, voltage regulators, and other circuits where it helps control and amplify electrical signals.

Heat Sink: The TIP32 can generate heat during operation, especially when handling high currents. In applications with high power dissipation, it's important to use an appropriate heat sink to dissipate the heat and prevent the transistor from overheating.
