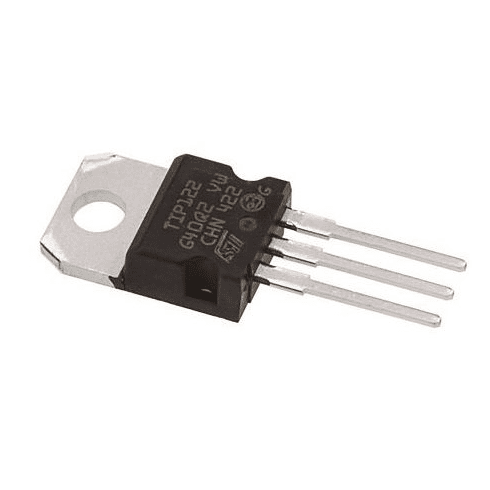

The TIP122 is part of a class of transistors known as Darlington pairs. A Darlington pair is a combination of two transistors connected in such a way that it provides high current gain. It's especially useful in situations where a microcontroller or other low-current signal source needs to control higher-power devices.
Non-returnable
Rs.17.00
Available Offer
Share :
Product Details
Key Features:-
Transistor Type: The TIP122 is a type of bipolar junction transistor (BJT). It is an NPN transistor, which means it is composed of three layers of semiconductor material: N-type (Negative), P-type (Positive), and N-type (Negative).
Darlington Pair: The TIP122 is part of a class of transistors known as Darlington pairs. A Darlington pair is a combination of two transistors connected in such a way that it provides high current gain. The TIP122, in particular, is a single Darlington pair transistor.
Amplification: The primary purpose of the TIP122 is to amplify current. It can handle relatively high currents and is often used in applications where a small input current needs to control a larger output current.
Collector-Base-Emitter Pinout: The TIP122 has three pins: Collector (C), Base (B), and Emitter (E). Current flows from the Collector to the Emitter when a small current is applied to the Base.
Maximum Ratings: The TIP122 has specific maximum ratings, including maximum collector current (IC), maximum collector-emitter voltage (VCE), and maximum power dissipation (PD). These ratings should not be exceeded to prevent damage to the transistor.
Applications: The TIP122 is commonly used in applications where high current switching or amplification is required, such as motor control, relay driving, LED control, and more. It's especially useful in situations where a microcontroller or other low-current signal source needs to control higher-power devices.
Heat Sink: Due to its ability to handle higher currents, the TIP122 can generate heat during operation. In applications with higher currents or when switching larger loads, it's important to use an appropriate heat sink to dissipate the heat and prevent the transistor from overheating.
Datasheet: To use the TIP122 effectively in your circuit, it's essential to consult the datasheet provided by the manufacturer. The datasheet contains detailed information about pin configurations, electrical characteristics, and recommended operating conditions.
