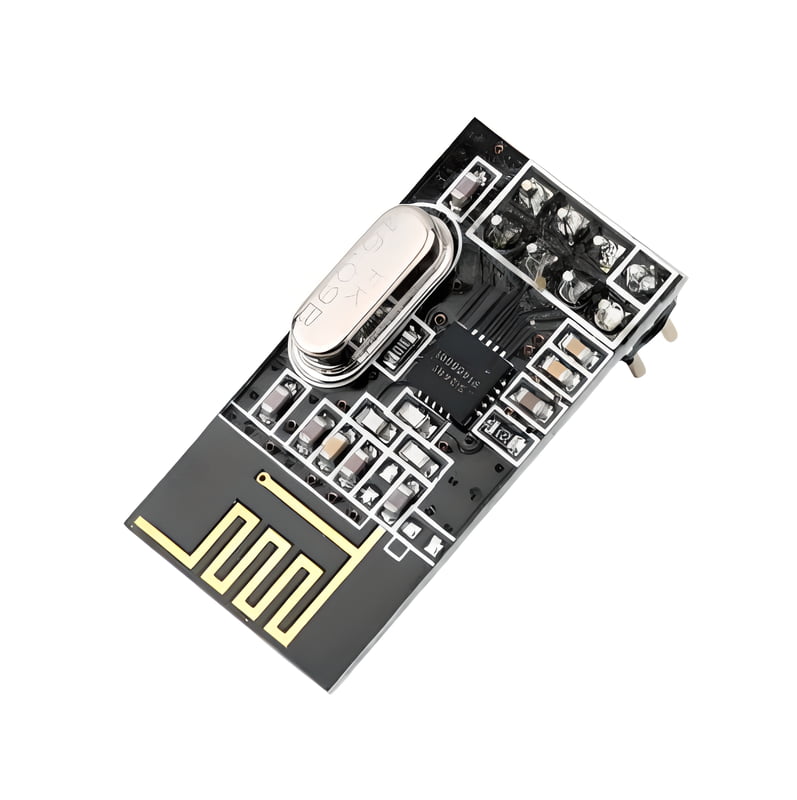

The NRF24L01 is a wireless transceiver Module. It is a popular choice for short-range wireless communication in various applications. The NRF24L01 IC is often used on a PCB (Printed Circuit Board) to create a wireless communication module or system.
Non-returnable
Rs.89.00
Available Offer
Share :
Product Details
Specifications:-
Input Supply voltage
3V ~ 3.6V (recommended 3.3V)
Working current in transmit mode
115mA
Maximum output power
+20dBm
Power-down mode current
4.2µA
Operating Range
1km
Antenna Gain (peak) (dBi)
2
Receiver sensitivity
-92dBm in 2Mbps mode -95dBm in 1Mbps mode -104dBm in 250kbps mode
PA growth (dB)
20
LAN growth (dB)
10
LAN noise figure (dB)
2.6
Operating temperature (°C)
-20°C ~ +70°C
Size
150.7x15.5x11.1mm
