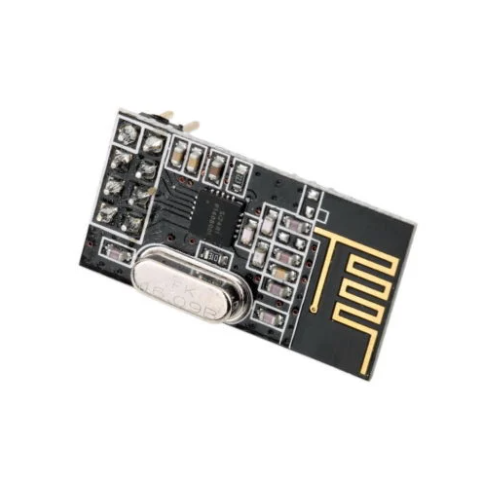

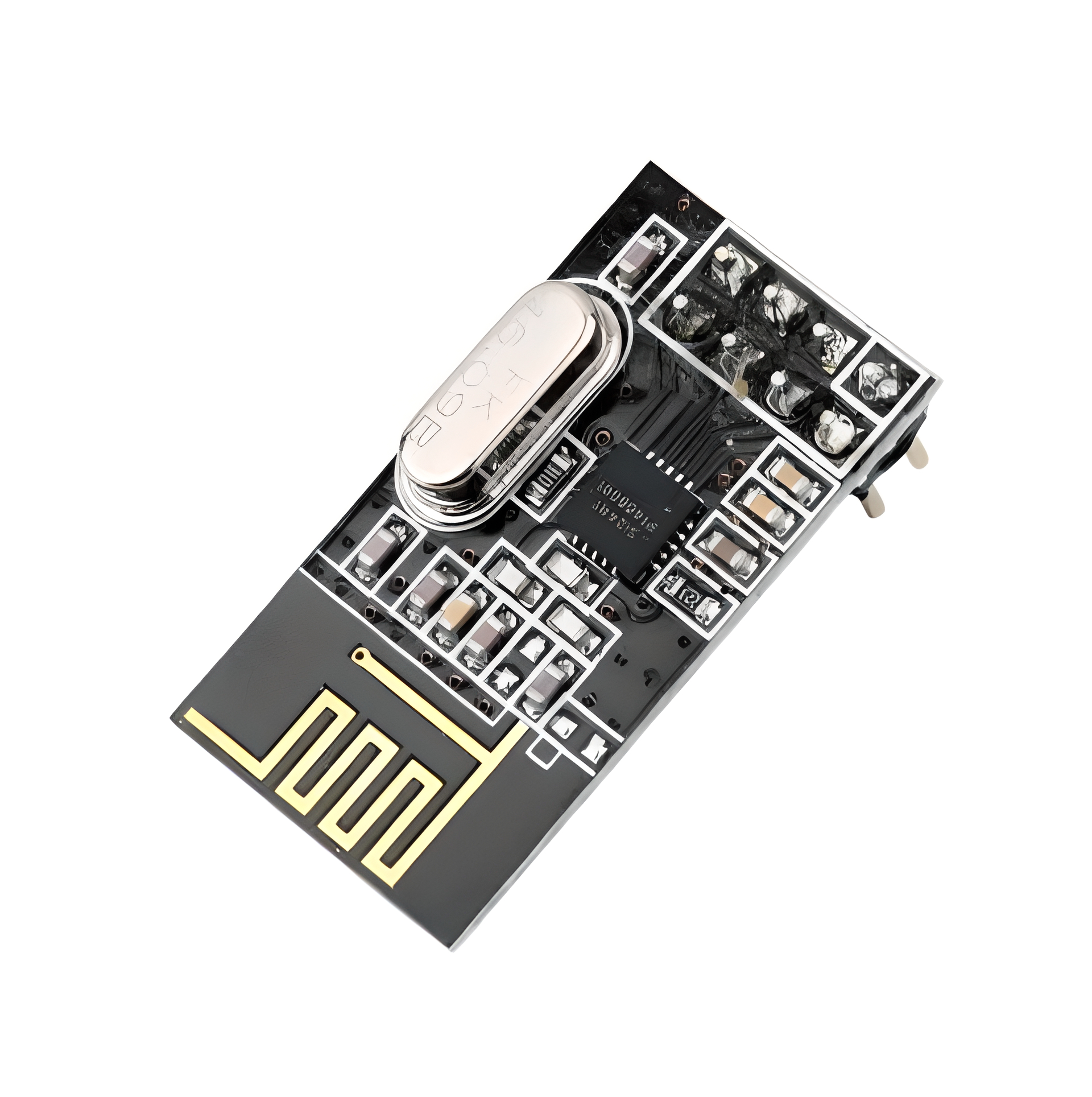

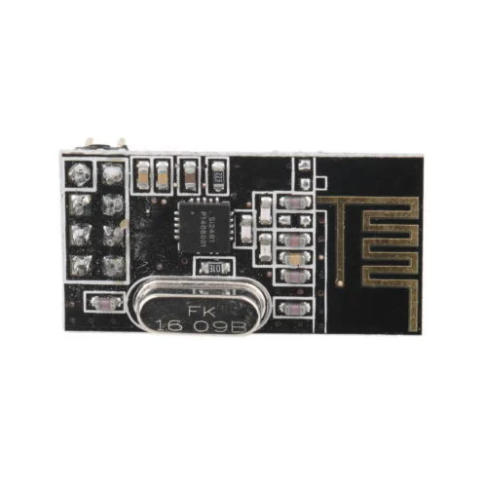

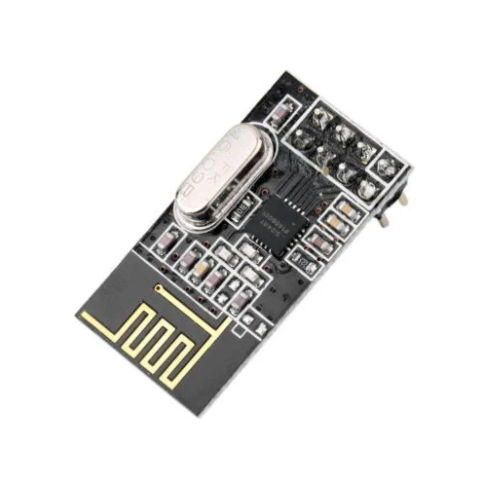

NRF24L01 Wireless Transceiver Module
The NRF24L01 is a wireless transceiver Module. It is a popular choice for short-range wireless communication in various applications. The NRF24L01 IC is often used on a PCB (Printed Circuit Board) to create a wireless communication module or system.
Non-returnable
SKU - R0506 B13
Out of stock
Rs.95.00
Share:
Product Details
Specifications:-
| Input Supply voltage | 3V ~ 3.6V (recommended 3.3V) |
| Working current in transmit mode | 115mA |
| Maximum output power | +20dBm |
| Power-down mode current | 4.2µA |
| Operating Range | 1km |
| Antenna Gain (peak) (dBi) | 2 |
| Receiver sensitivity | -92dBm in 2Mbps mode -95dBm in 1Mbps mode -104dBm in 250kbps mode |
| PA growth (dB) | 20 |
| LAN growth (dB) | 10 |
| LAN noise figure (dB) | 2.6 |
| Operating temperature (°C) | -20°C ~ +70°C |
| Size | 150.7x15.5x11.1mm |
