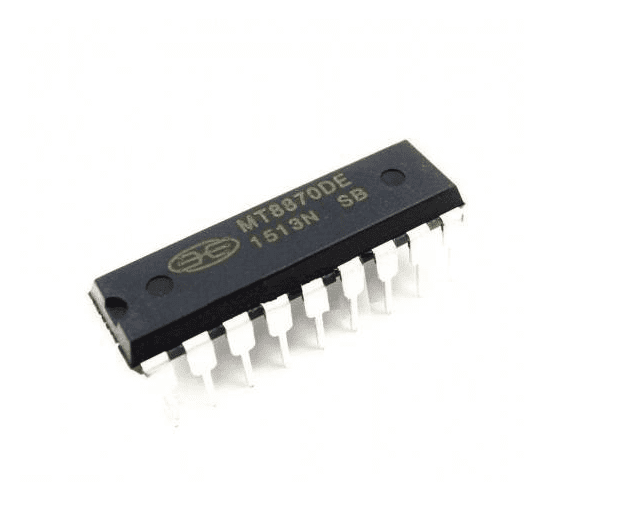

MT8870 DTMF Decoder IC

DTMF Decoding: The primary function of the MT8870 is to decode DTMF signals. It can recognize the 16 standard DTMF tones that correspond to the 12 numeric digits (0-9) and the special characters (* and #).

Dedicated Pins: The MT8870 typically has pins for connecting to the audio input that carries the DTMF signal, an enable pin to control the device's operation, and pins for each decoded output corresponding to the detected digit or character.

Tone-to-Digit Conversion: When a valid DTMF tone is detected on the input, the MT8870 converts it into a binary code that represents the corresponding digit or character. This binary output is available on the device's output pins.

Applications: The MT8870 is commonly used in applications that require the recognition of DTMF signals, such as telephone systems, remote control systems, and automated answering machines.

Output Configuration: The MT8870 can be configured for various output options, including latched and momentary outputs. Latched outputs hold the detected digit until reset, while momentary outputs provide a pulse when a valid digit is detected.

Datasheet: To use the MT8870 effectively, it's essential to consult the datasheet provided by the manufacturer. The datasheet contains detailed information about pin configurations, recommended operating conditions, and output configurations.
