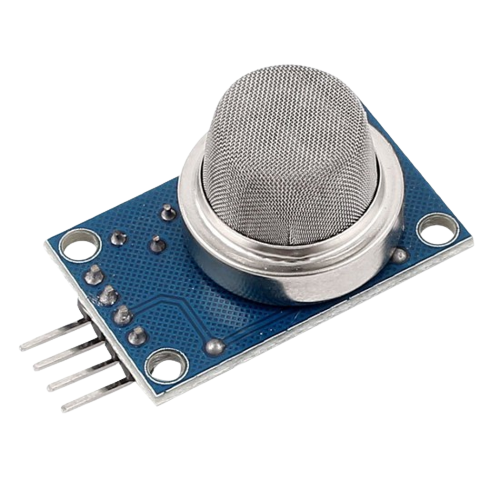

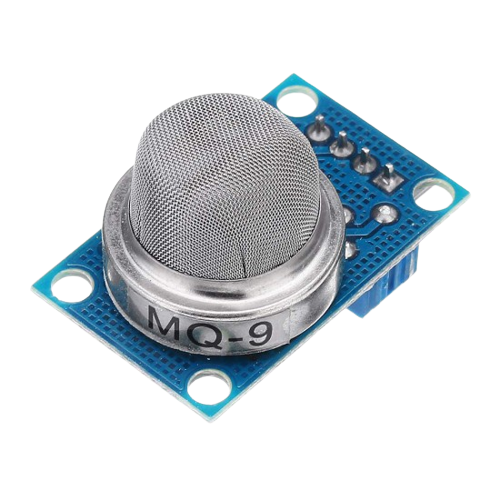

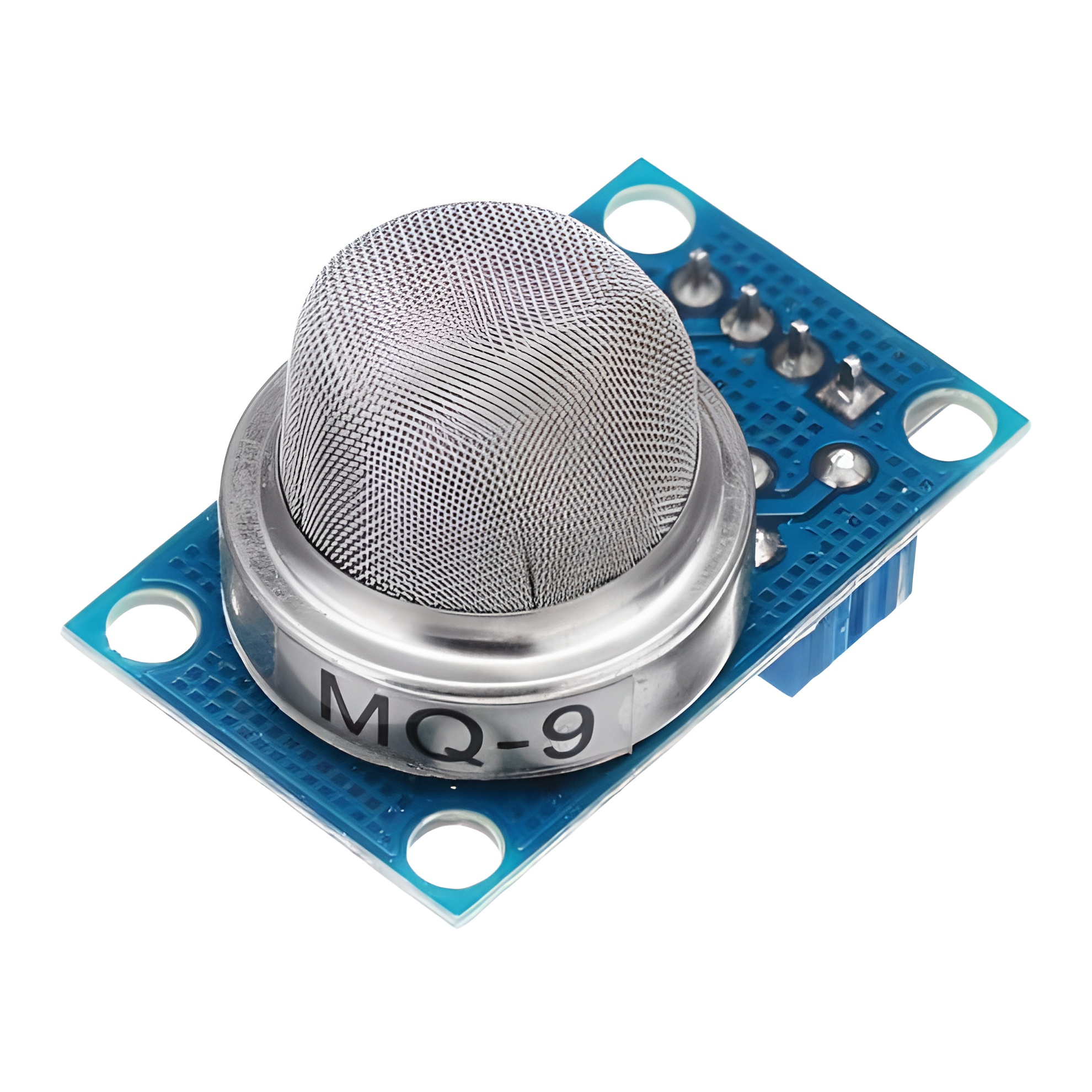

The MQ-9 Carbon Monoxide, LPG Sensor Module is a gas sensor that can detect carbon monoxide, methane, LPG, propane, and combustible gases.
This MQ-9 gas sensor is very sensitive to carbon monoxide, methane and LPG. The sensitive material of the MQ-9 gas sensor is SnO2, which has a lower conductivity in clean air. It detects high and low temperature alternations and detects CO at low temperature (heated to 1.5V).
The conductivity of the sensor increases as the gas concentration increases. As the temperature rises (heated to 5.0 V), it detects methane, propane, combustible gas, etc. and cleans other gases by adsorption at low temperature. MQ-9 is often used in household gas detector, industrial gas detector, portable gas detector, etc.
Non-returnable
Rs.110.00
Available Offer
Share :
Product Details
Suitable for home or factory gas leakage monitoring devices.
Have better sensitivity to Carbon Monoxide, Methane and LPG Gas.
High quality dual-panel design, with power indicator and TTL signal output instructions.
Its has analog voltage
Its has four holes for mounting Purpose
Holes Diameter is 3.5mm
Its made in India
SPECIFICATIONS:
Model
MQ-9
Type
Gas sensor Module
Voltage
3V-5V
Output Type
Digital and Analog
Current
150mA
Make
India
Dimension
36x20x17mm
