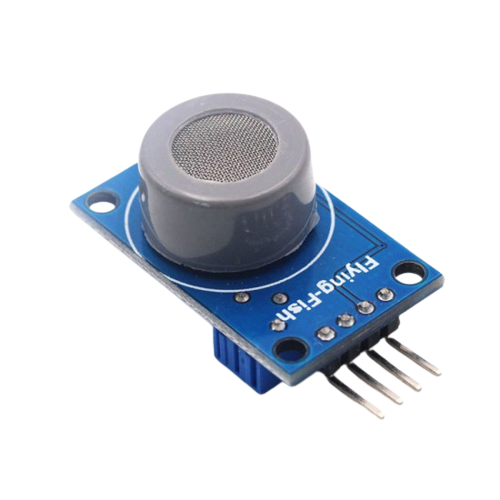

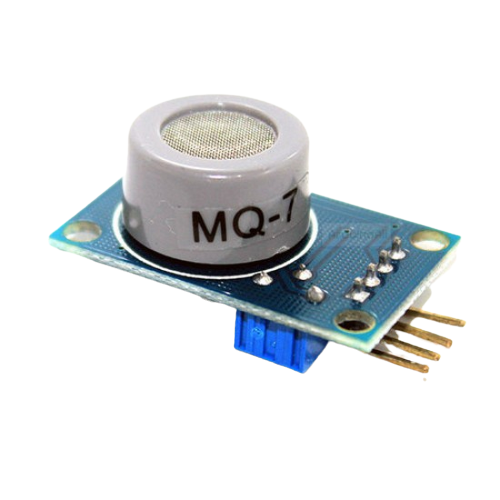

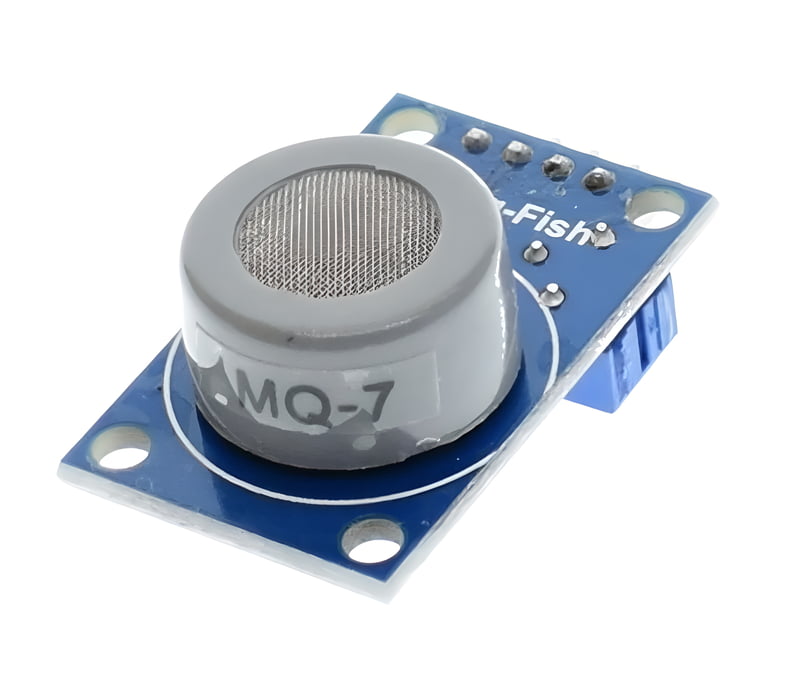

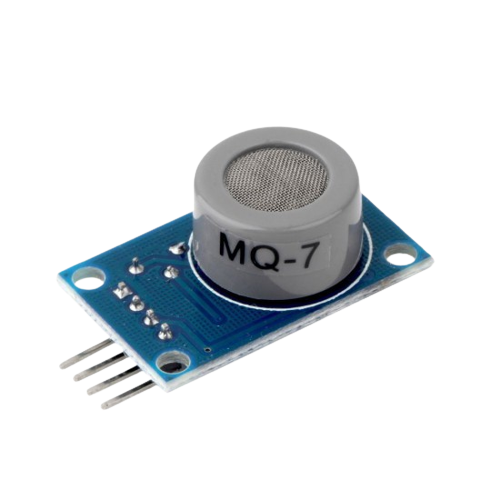

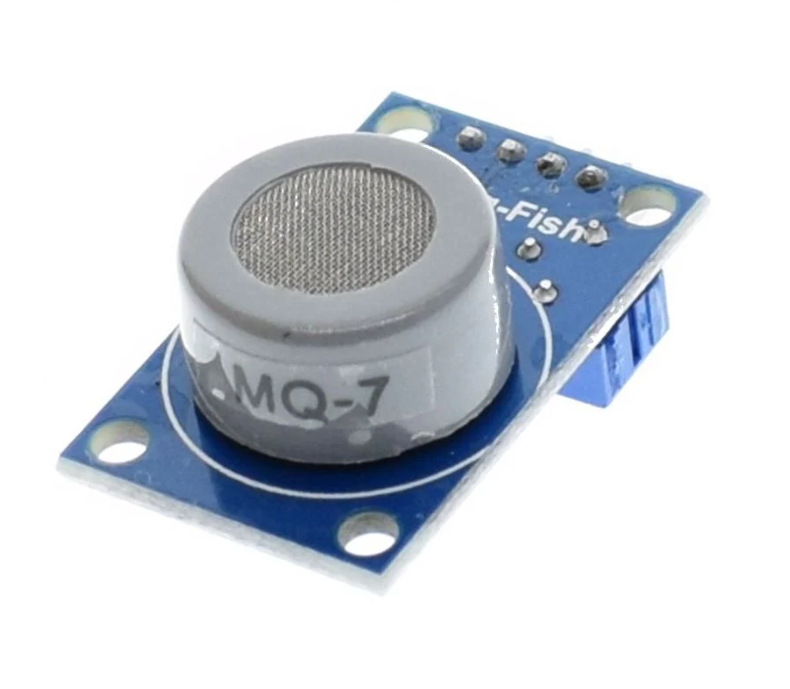

MQ-7 is used for sensing CO concentrations in the air. The MQ-7 can detect CO levels ranging from 10 to 500 parts per million. This sensor has high sensitivity and a fast response time. The output of the sensor is an analog resistance. The sensor works in temperatures ranging from -10 to 50°C and consumes less than 150 mA at 5 V. Both digital and analog outputs are available on this module.
Non-returnable
Rs.129.00
Available Offer
Share :
Product Details
The threshold level for digital output can be easily adjusted using the preset on the board. The MQ-7 sensor module can be easily interfaced with microcontrollers, Arduino, etc. The sensor could detect different gases containing CO; it is a low-cost module suitable for various applications. When the module is powered with 5V, the power LED should glow, and when no gas is detected, the output LED will remain off, indicating that the digital output pin will be 0V. With the help of a potentiometer, we can easily adjust the sensitivity of MQ-2.
Features:
High sensitivity to carbon monoxide
Fast response and recovery
Adjustable sensitivity
Stable, long life and low cost
Both digital and analog output
Output voltage boosts along with the concentration of the CO gases increases.
AO for analog output, DO for digital output, GND for ground, VCC for 5V voltage input.
SPECIFICATIONS
Dimensions
38.1mm*20.3mm*15.7mm
Input voltage
5V DC
Range
10-1000ppm
Current
150mA
Temperature
-10°C to +50 ° C
