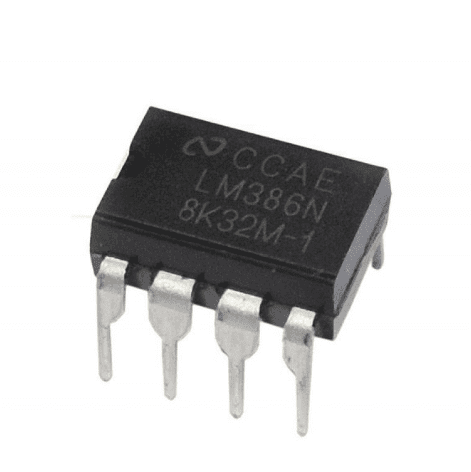

LM386 Operational Amplifier IC

Low-Power Amplifier: The LM386 is designed as a low-power audio amplifier, making it suitable for battery-powered and portable devices.

Single-Channel Amplifier: The LM386 is typically used for single-channel (mono) audio amplification. If stereo amplification is needed, two LM386 ICs can be used—one for each channel.

Amplification Gain: The LM386 can provide adjustable amplification gain by changing the value of an external resistor connected to its pin 1 (Gain) and pin 8 (V-). The gain can typically range from 20 (without an external resistor) to 200.

Low Voltage Operation: The LM386 can operate from a wide range of supply voltages, typically from +4V to +12V. This flexibility allows it to be used with various power sources.

Low Distortion: It offers low distortion and good audio quality for its intended use in audio amplification.

Input and Output Impedance: The input impedance of the LM386 is relatively high, making it suitable for various audio signal sources. The output impedance is low, which allows for easy connection to speakers.

Internal Bypass Capacitor: The LM386 includes an internal bypass capacitor on its pin 1 (Gain). This capacitor helps reduce external component count and simplifies the circuit design.

Shutdown Mode: Some versions of the LM386 offer a shutdown (Mute) pin that can be used to turn off the amplifier when not in use, conserving power.

Applications: The LM386 is commonly used in applications like portable radios, intercoms, walkie-talkies, small audio amplifiers, and hobbyist projects that require audio amplification.
