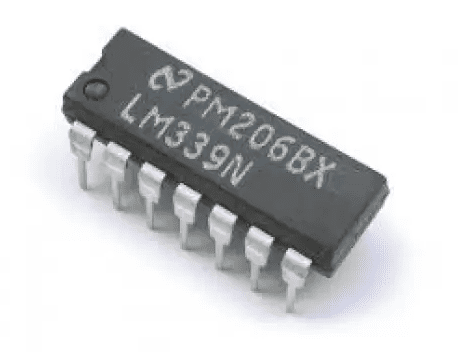

LM339 Comparator Amplifier IC

Quad Voltage Comparator: The LM339 includes four individual voltage comparators, labeled as A, B, C, and D. Each comparator can operate independently and compare two input voltages.

Comparator Function: A comparator is a device that compares two input voltages and generates a digital output based on the comparison. When the voltage at the non-inverting (+) input is higher than the voltage at the inverting (-) input, the output is typically high (logic "1"). When the inverting input is higher, the output is low (logic "0").

Open-Collector Outputs: The outputs of the LM339 are open-collector outputs, which means they can sink current to the ground but do not source current. This allows for flexibility in connecting external components and devices.

Wide Input Voltage Range: The LM339 has a wide input voltage range that typically includes the entire range between the supply voltages (dual supply) or between the positive supply and ground (single supply).

Hysteresis: The LM339 comparators have built-in hysteresis, which can reduce the likelihood of output oscillation or rapid switching when the input voltages are close to each other. This feature is particularly useful in noisy environments.

Single or Dual Supply: The LM339 can be powered from a single positive supply voltage (e.g., +5V) or from a dual supply voltage (e.g., +5V and -5V), depending on your application requirements.

Applications: The LM339 is commonly used in applications that require signal comparison, such as voltage level detection, window comparators, zero-crossing detectors, and various control and monitoring circuits.
