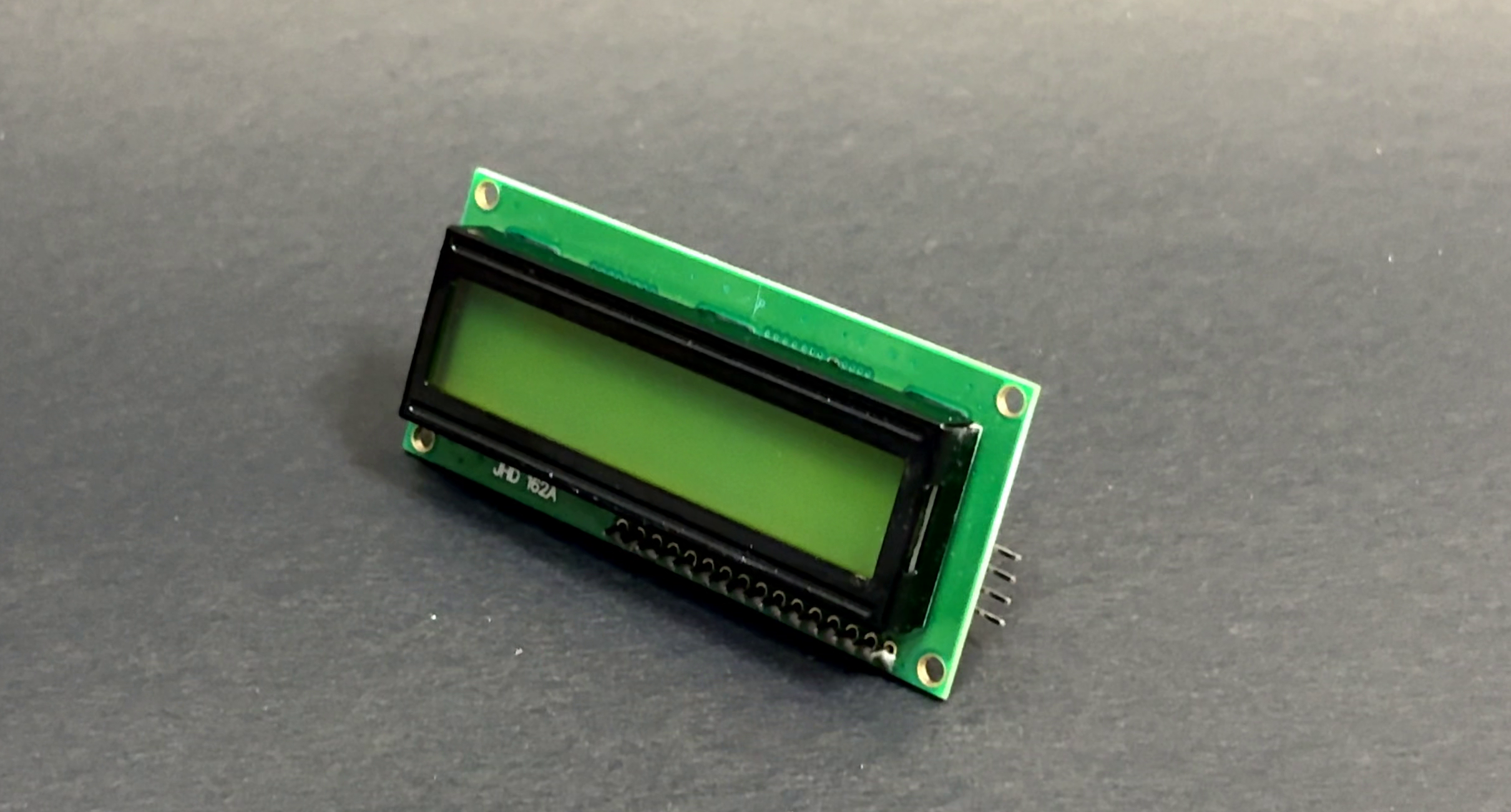

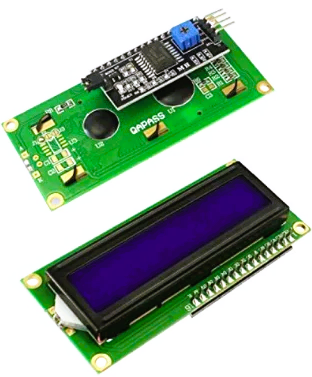

LCD 16x2 (1602) with I2C Module – Pre-Soldered for Easy Use
The LCD 16x2 (1602) with Pre-Soldered I2C Module makes Arduino, ESP32, NodeMCU, 8051 microcontrollers, and Raspberry Pi projects easier with reduced wiring and pin usage. Plug & play with a high-contrast display for seamless integration!
Non-returnable
SKU - R0924
Rs.149.00
Rs.299.00
In stock:
8
Choose Quantity:
Share:
Product Details
Download I2C Library: https://drive.google.com/file/d/1a-cAFb1hH_qy535kpnsz7HoIg8S2bYbA/view
Sample Code for testing: https://drive.google.com/file/d/1KfVJ8GUMtLPPBzhF0aFbUpa9AcpIb3d0/view
Connections – LCD with I2C to Arduino Uno
| I2C Module Pin | Arduino Uno Pin | Function |
|---|---|---|
| VCC | 5V | Power Supply |
| GND | GND | Ground |
| SDA | A4 | Serial Data Line |
| SCL | A5 | Serial Clock Line |
💡 Note: Some boards (like Arduino Mega, ESP32) may have different I2C pin assignments.
Caution:
🔹 If the screen appears blank with a blue or green background, the contrast might need adjustment.

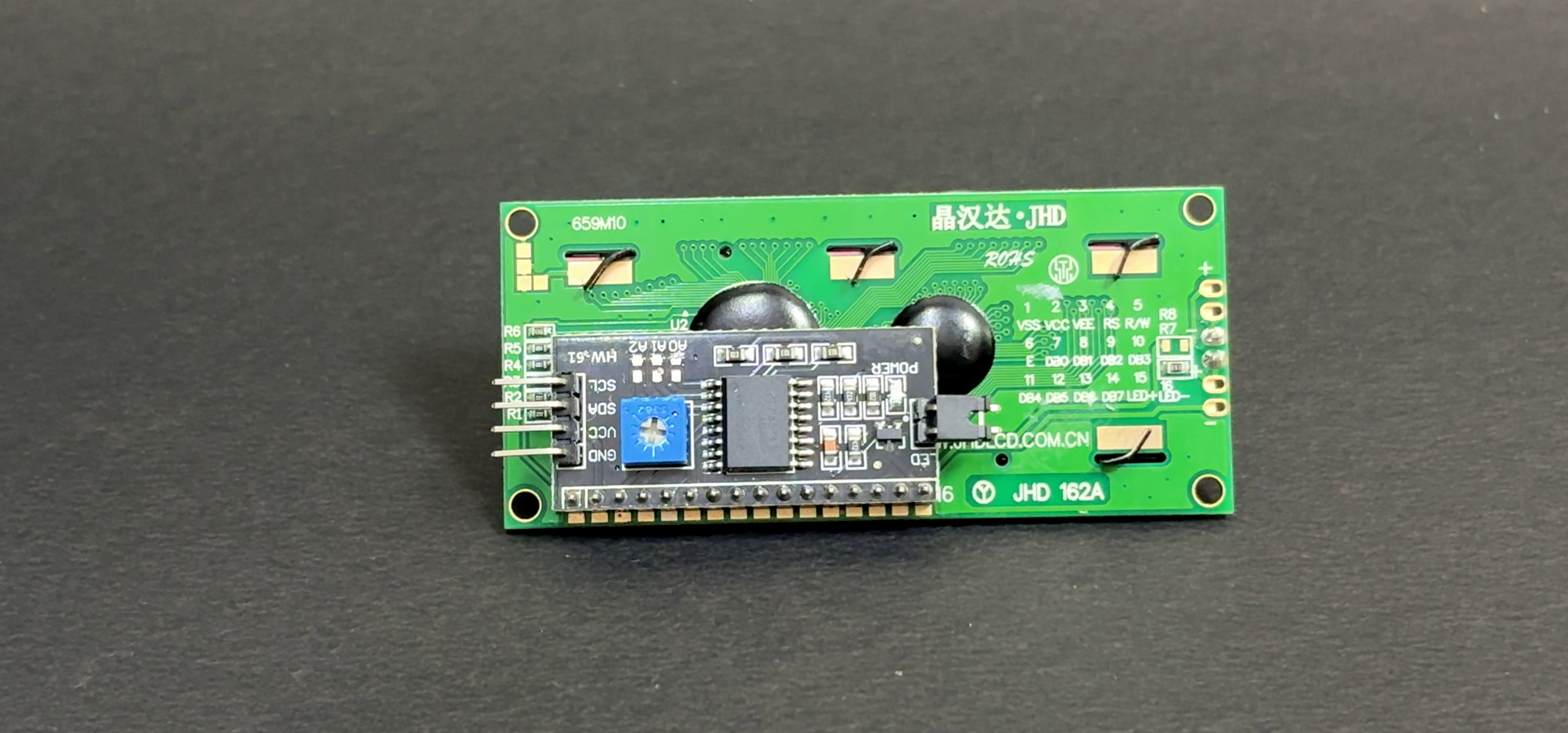

🔹 Gently turn the trimpot knob (small blue square on the I2C module) using a screwdriver to adjust the display visibility.
🔹 Do not force the trimpot, as excessive pressure may damage it.
