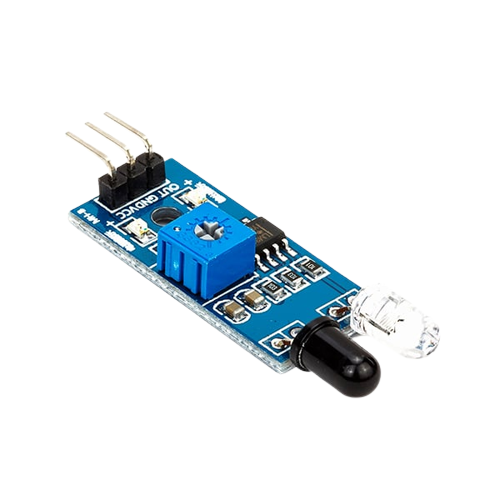

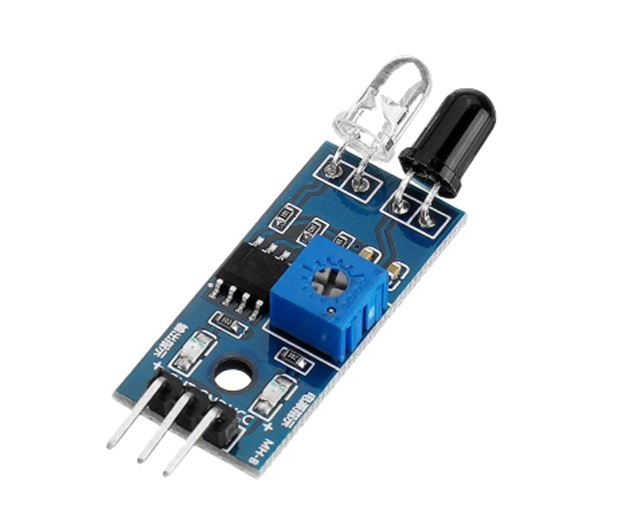

IR Sensor/Infrared Proximity Sensor
The IR Proximity Sensor has a pair of infrared transmitter and receiver tube. The infrared light emitting diode emits a certain frequency. So, when it encounters an object, it reflects from the surface of object. The IR receiver diode, senses the reflected IR light. The signal from IR receiver diode is fed into a comparator circuit, which will provide output to the MCU.
Non-returnable
SKU - R0400 F-3
Rs.29.00
In stock:
33
Choose Quantity:
Share:
Product Details
The sensitivity of the IR Sensor module is adjustable using the onboard variable resistor.
Specification:
- Operating Voltage: 3 to 5 VDC
- Detection Range: 2 to 10 cm
- Detection Angle: 35°
- Mounting Hole: 3mm Diameter

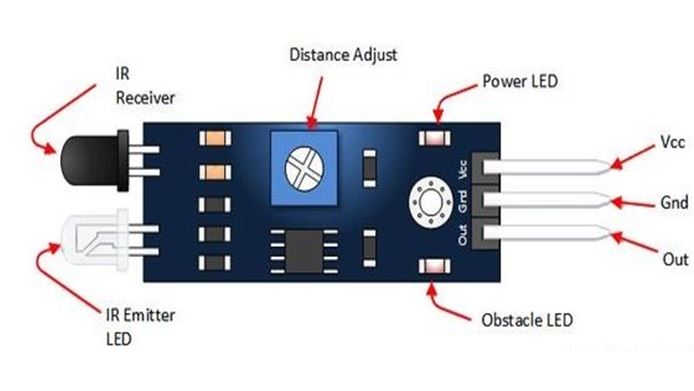

Pin Details:
- Vcc : Input Voltage
- GND : Ground
- Out : Output Signal
