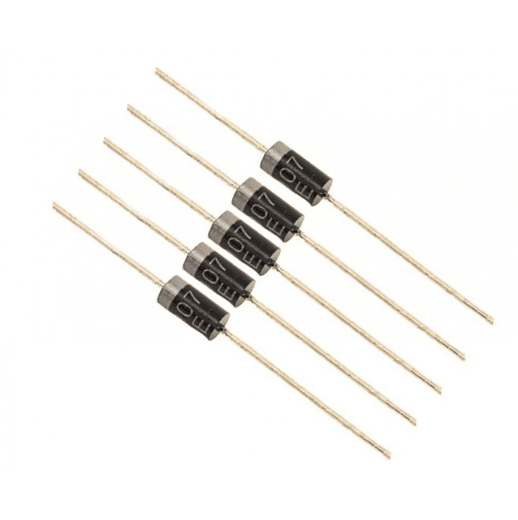

IN4007 Diode

1. Rectification: The primary function of the 1N4007 diode is rectification, which means it converts alternating current (AC) into direct current (DC). It allows current to flow in one direction (from anode to cathode) while blocking it in the opposite direction.

2. Voltage Rating: The 1N4007 diode has a high peak inverse voltage (PIV) rating of 1000 volts (1 kilovolt). This makes it suitable for use in applications where relatively high-voltage rectification is required.

3. Current Rating: The 1N4007 diode is typically rated for a forward current (IF) of 1 ampere (A), which means it can handle currents up to 1A in the forward direction without significant voltage drop.

4. Fast Recovery Time: It has a relatively fast reverse recovery time, which is the time it takes to switch from conducting in the forward direction to blocking in the reverse direction when the voltage polarity changes.

Applications:

• Power Supply Rectification: It is commonly used in power supplies and voltage rectification circuits to convert the AC voltage from the mains or a transformer into a usable DC voltage for electronic devices.

• Protection: In some circuits, it is used for reverse voltage protection, preventing voltage from flowing in the wrong direction and damaging sensitive components.

• Signal Clipping: In signal processing circuits, it can be used to clip or limit the amplitude of signals, ensuring they do not exceed a certain voltage level.

• Voltage Spike Suppression: The 1N4007 diode can help suppress voltage spikes or transients in circuits, protecting components from damage due to sudden voltage changes.
