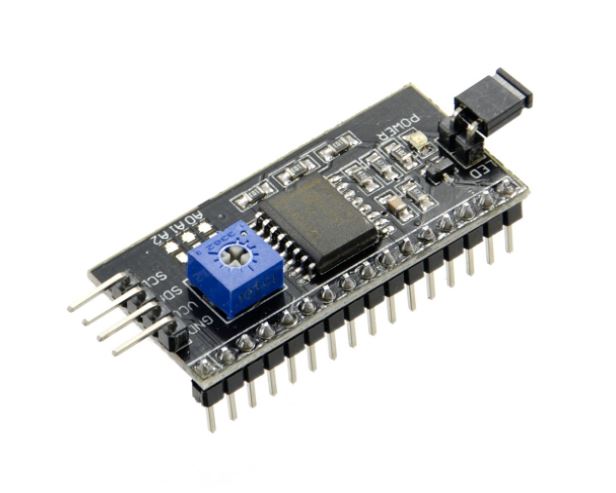

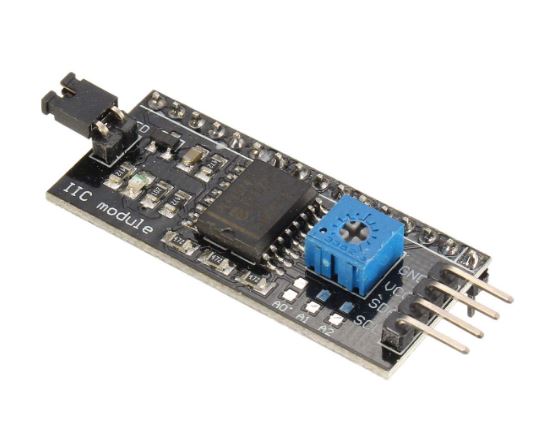

I2C Module for 16x2(1602)LCD
IIC/I2C Interface Adapter Module is used for 16×2 LCD Display. It uses the PCF8574T IC chip which converts I2C serial data to parallel data for the LCD display. Also, this interface module simplifies connecting an Arduino to a 16×2 Liquid Crystal display(LCD) using 4 wires.
Non-returnable
SKU - R0030
Rs.50.00
In stock:
25
Choose Quantity:
Share:
Product Details
Specifications:-
- Can have 8 modules on a single I2C bus (change address via solder jumpers)address, allowing.
- Operating Voltage: 5V
- Backlight and Contrast is adjusted by potentiometer
- Serial I2C control of LCD display using PCF8574
- Come with 2 IIC interface, which can be connected by Dupont Line or IIC dedicated cable
- Compatible for 16x2 LCD
- This is another great IIC/I2C/TWI/SPI Serial Interface.
- With this I2C interface module, you will be able to realize data display via only 2 wires.
