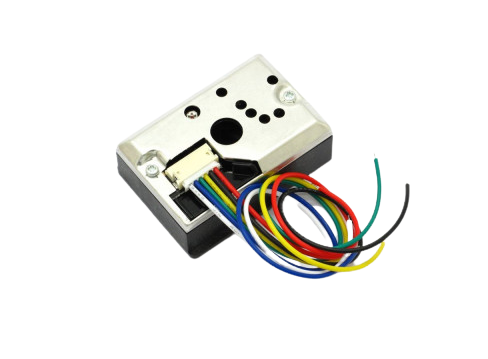

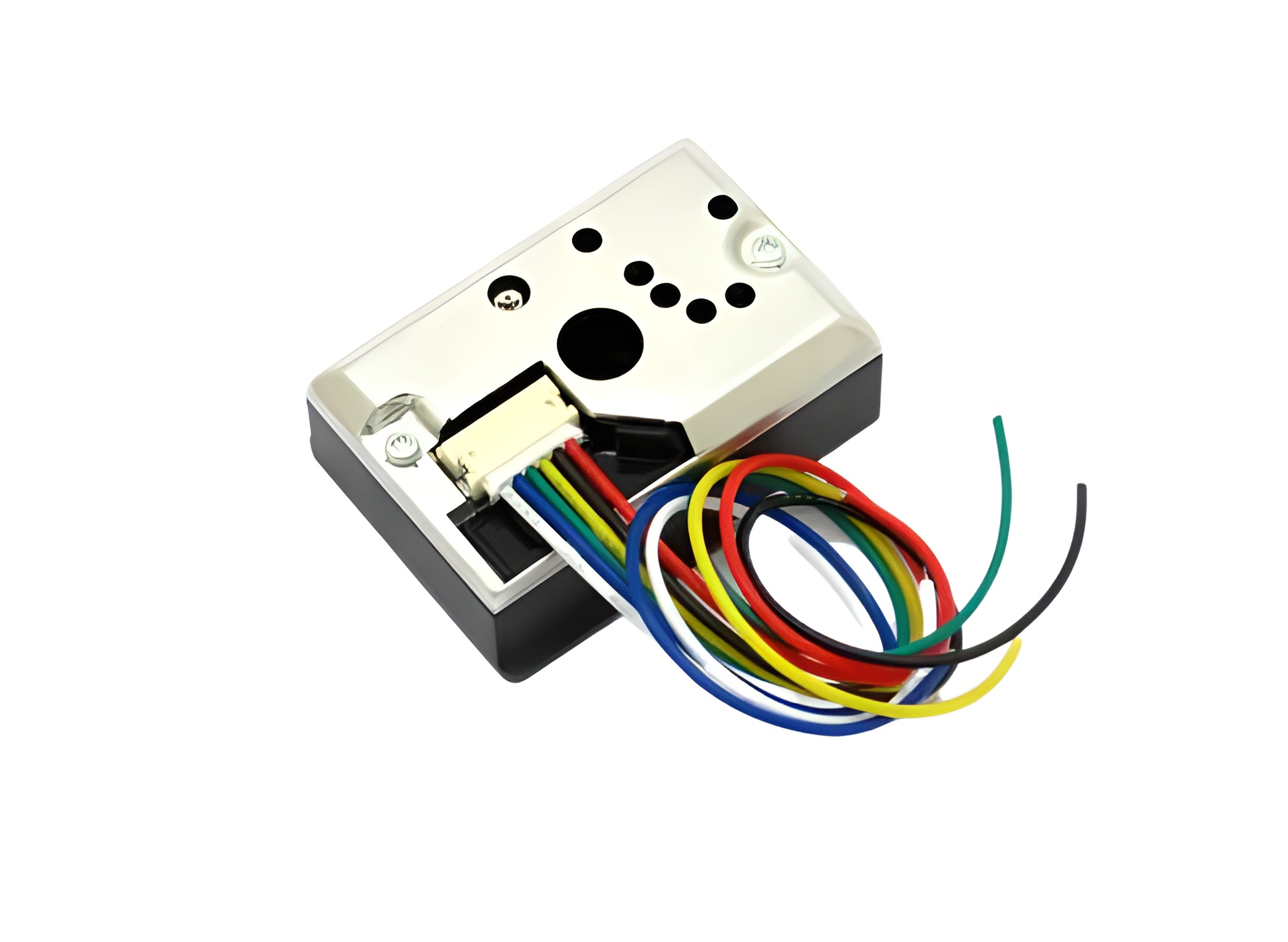

Working Principle: The GP2Y1010AU0F uses an optical sensing method to detect dust particles in the air. It includes an infrared LED (Light Emitting Diode) and a photodetector. The LED emits light, and the photodetector measures the intensity of scattered light. When dust particles pass through the sensor's detection area, they scatter light, and the sensor measures the scattered light intensity to estimate the dust concentration.
Particle Size Range: This sensor is capable of detecting particles in the 0.8 to 10-micron range. It's particularly effective at detecting fine dust particles, which can have health and environmental implications.
Output Signal: The GP2Y1010AU0F provides an analog voltage output that is proportional to the concentration of dust particles. The higher the dust concentration, the higher the analog voltage output.
Compact Size: The module is relatively small and compact, making it suitable for integration into various environmental monitoring devices.
Low Power Consumption: It typically has low power consumption, which is important for battery-powered applications.
Applications: Common applications for the GP2Y1010AU0F include air quality monitoring in homes, offices, and industrial environments, as well as integration into air purifiers, HVAC systems, and environmental sensing equipment.
Calibration: It's essential to calibrate the sensor properly for accurate measurements. Calibration may involve comparing sensor readings with measurements from reference instruments or standardized dust sources.
Datasheet: Detailed technical information, including electrical characteristics, pinout, and recommended operating conditions, can be found in the datasheet provided by the manufacturer.
When using the GP2Y1010AU0F sensor module, it's important to consider the specific requirements of your application, including calibration, data processing, and environmental conditions.
