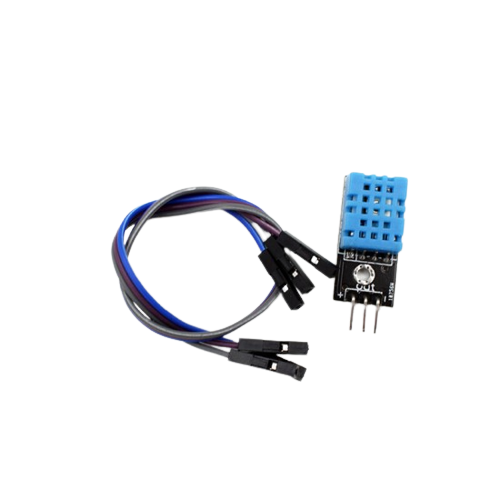

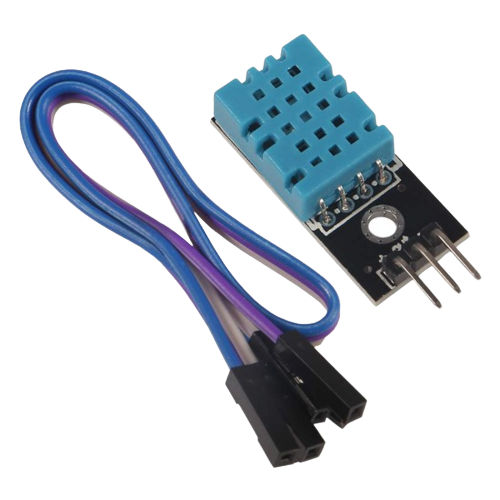

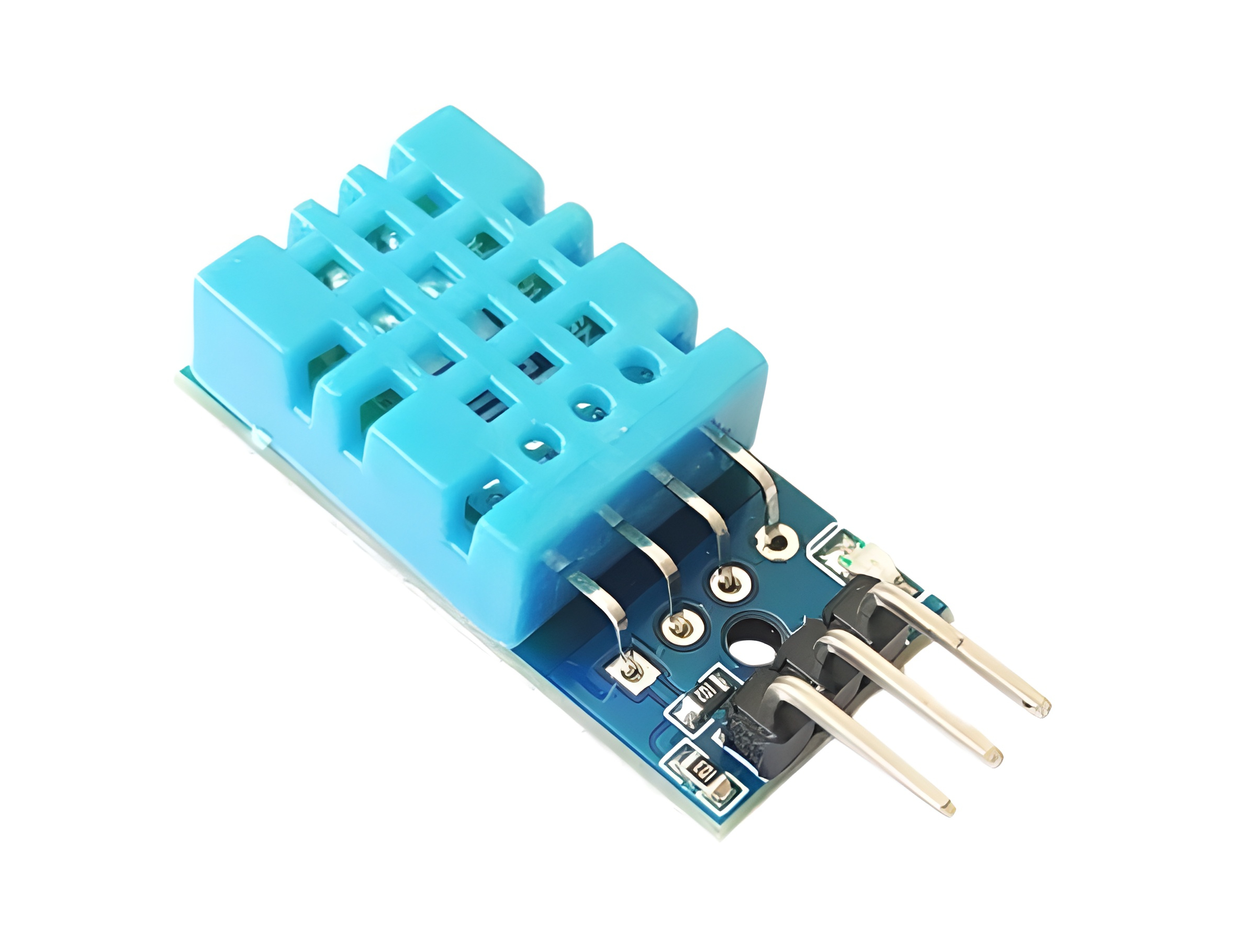

DHT11 Temperature and Humidity Sensor Module
DHT11 is a Humidity and Temperature Sensor, which generates calibrated digital output. It uses a capacitive humidity sensor and a thermistor to measure the surrounding air, and outputs a digital signal on the data pin (no analog input pins needed).
Non-returnable
SKU - R0313 G-3
Rs.55.00
In stock:
4
Choose Quantity:
Share:
Product Details
DHT11 can be interface with any microcontroller like Arduino, Raspberry Pi, and get instantaneous results. It's very simple to use, and libraries and sample codes are available for Arduino and Raspberry Pi. DHT11 is a low-cost humidity and temperature sensor for prototyping.
Specifications:-
1. Power Supply： 3.3~5.5V DC
2. Output： 4 pin single row
3. Measurement Range：Humidity 20-90%RH，Temperature 0~50℃
4. Accuracy： Humidity +-5%RH， Temperature +-2℃
5. Resolution： Humidity 1%RH， Temperature 1℃
6. Interchangeability： Fully Interchangeable

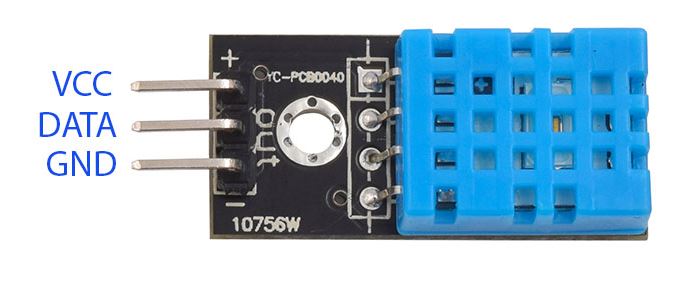

Pin Description:
Pin 1: Power +Ve (3.3VDC to 5.5VDC Max wrt. GND)
Pin 2: Serial Data Output
Pin 3: Ground (–Ve)
Communication Protocol:
The DHT11 sensor module communicates using a single-wire digital protocol. This means you can interface it using only one data pin on your microcontroller or development board.
Recommended Arduino IDE Library: "DHTlib"
