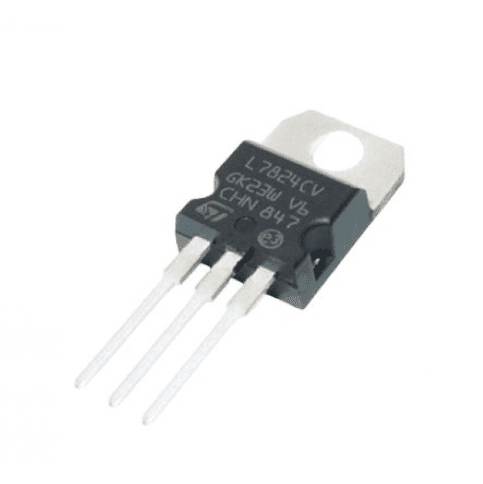

7824 Voltage Regulator IC

Voltage Regulation: The 7824 is designed to regulate the input voltage and provide a stable output voltage of +24V DC. It is often used to power electronic circuits and devices that require a 24-volt power supply.

Voltage Dropout: The dropout voltage is the minimum voltage difference between the input and output that the regulator needs to maintain regulation. For the 7824, the dropout voltage is typically around 2 volts. This means that for proper regulation, the input voltage should be at least 26 volts.

Current Rating: The 7824 is available in various current ratings, such as 100mA, 500mA, 1A, etc. The current rating determines how much current the regulator can supply to the load while maintaining proper regulation. Make sure to choose a version that meets your current requirements.

Fixed Output Voltage: The 7824 provides a fixed output voltage of +24V DC. Unlike adjustable voltage regulators, you cannot change the output voltage of the 7824.

Input and Output Capacitors: To ensure stability and reduce output voltage ripple, it's common practice to place input and output capacitors near the 7824 regulator. These capacitors help filter noise and provide additional stability.

Heat Sink: Depending on the current and voltage drop across the regulator, the 7824 may generate heat. Using an appropriate heat sink can help dissipate this heat and ensure the regulator operates within its safe temperature range.

Protection Features: The 7824 typically includes protection features like thermal shutdown and current limiting to protect the IC from overheating and overcurrent conditions.

Applications: The 7824 voltage regulator is used in a wide range of electronic devices and circuits, including power supplies, amplifiers, audio equipment, and various other applications that require a stable +24V DC power source.

Package: It is available in various package types, including TO-220 and TO-92, which are common in through-hole and surface-mount applications.

Note: When using the 7824 voltage regulator, it's important to ensure that the input voltage is within the specified range and that you consider the power dissipation and heat management, especially if the voltage drop across the regulator and the load current are high. Additionally, input and output capacitors can help improve the regulator's performance.
