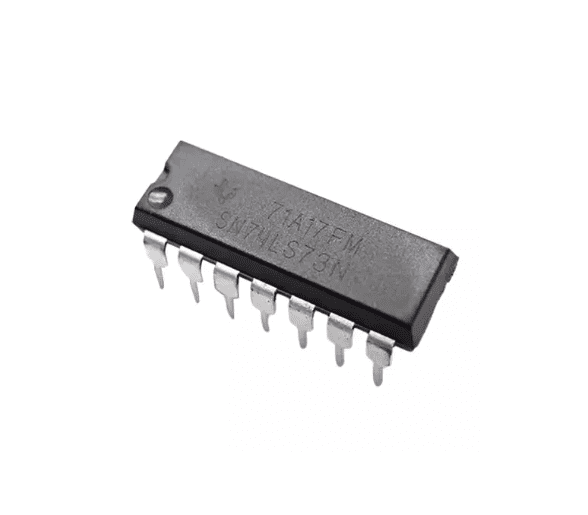

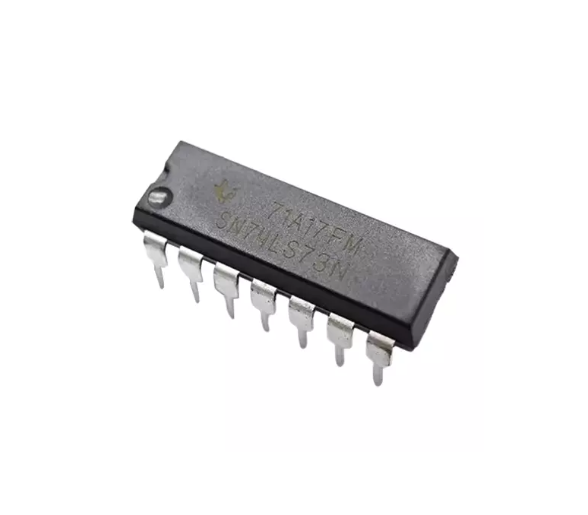

7473 Dual JK flip-flop IC

Dual JK Flip-Flops: The 7473 IC contains two identical JK flip-flops within a single package. Each flip-flop has its own set of inputs and outputs, making it suitable for various applications where multiple flip-flops are needed.

JK Flip-Flop: The JK flip-flop is a type of sequential logic device with two inputs, J (set) and K (clear), and two outputs, Q (output) and Q' (complementary output). It is used to store one bit of binary data and is known for its versatility in digital circuits.

Clock Inputs: Each flip-flop within the 7473 IC has a clock input (CP or CLK), which is used to control when data is latched or transferred within the flip-flop. On the rising or falling edge of the clock signal, data can be transferred from the J and K inputs to the Q and Q' outputs.

Clear and Set Inputs: The 7473 IC provides clear (CLR) and set (SET) inputs for each flip-flop. These inputs allow you to reset (clear) or set the flip-flop to a specific state when certain conditions are met.

Asynchronous Inputs: The J and K inputs of each flip-flop can accept asynchronous logic inputs, meaning that the outputs can change state independently of the clock signal if the J and K inputs change.

Applications: JK flip-flops are widely used in digital systems for tasks such as data storage, frequency division, and sequence control. They can be used in counters, registers, and other sequential logic circuits.

Package: The 7473 IC is available in various package types, including DIP (Dual In-Line Package) and surface-mount variants.

Power Supply: It typically operates on a 5V DC power supply.

Truth Table: The 7473 IC has a truth table that defines its behavior based on the combinations of inputs (J, K, CLR, SET, and CLK). The truth table specifies how the flip-flops will behave in response to these inputs.
