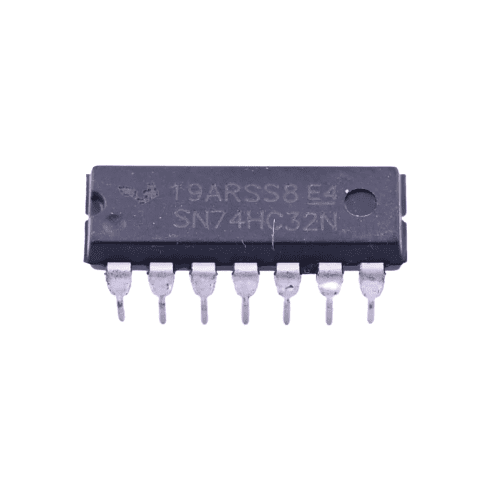

The 7432 is a widely used integrated circuit (IC) that contains four OR gates. The "7432" designation is part of the 7400 series of ICs, which includes a variety of logic gates and other digital building blocks. Each of the four OR gates in the 7432 IC performs a logical OR operation on two input signals.
Non-returnable
Rs.30.00
Available Offer
Share :
Product Details
Truth Table: The truth table for a 2-input OR gate is as follows:
Input A
Input B
Output
0
0
0
0
1
1
1
0
1
1
1
1
Usage: OR gates are fundamental building blocks in digital logic circuits. They are used in various applications, such as combining signals, implementing logical functions, and creating more complex circuits.
Voltage Levels: The 7432 IC operates with standard digital logic voltage levels, usually around 5 volts. Some versions might be compatible with different voltage levels, so it's important to check the datasheet for the specific version you're using.
Schematic Symbol: The OR gate is commonly represented in logic diagrams using the symbol for an OR gate, which consists of two inputs and one output connected with an arc that indicates the OR operation.
Datasheet: It's crucial to refer to the manufacturer's datasheet for detailed information about pinout, electrical characteristics, and usage guidelines of the 7432 OR gate IC.
Note: The 7432 OR gate IC is often used in digital logic design, electronic projects, and educational environments to teach principles of digital circuits. Understanding how to use basic logic gates like the OR gate is fundamental to designing more complex digital systems.
