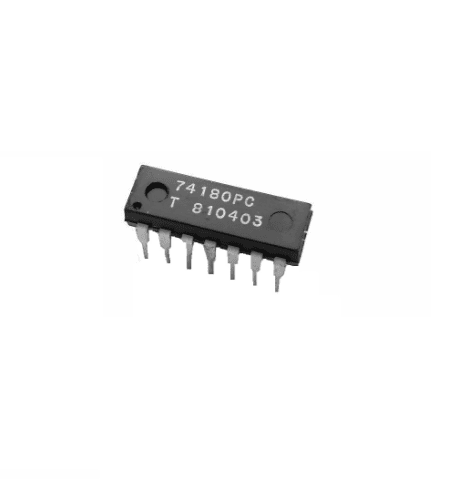

74180 BCD - Decimal Converter IC

Functionality: The primary function of the 74180 is to convert a 4-bit BCD input into a decimal output. It has four input lines (A, B, C, and D) representing the BCD input and ten output lines (0 through 9) representing the decimal output.

Decimal Output: Each of the ten output lines corresponds to a specific decimal digit (0 through 9). When a valid BCD input is applied, one of the decimal output lines will be active (LOW), indicating the decoded decimal value.

Applications: The 74180 is commonly used in applications where BCD data needs to be converted into decimal form. It is often used in digital display systems, such as 7-segment LED displays, where BCD-encoded data is converted to drive the appropriate segments of the display to show the corresponding decimal digit.

BCD Input: The BCD input consists of four binary input lines (A, B, C, and D), allowing for 16 possible input combinations (0000 to 1001 in binary).

Truth Table: The IC has a truth table that shows the relationship between the BCD input and the decimal output. For example, if the BCD input is 0100, the output line for decimal 4 (Q4) will be LOW, indicating the value 4.

Cascading: Multiple 74180 ICs can be cascaded to decode larger BCD numbers or for applications that require the decoding of multiple digits.

Power Supply: The IC typically operates on a 5V DC power supply.

Package: It is available in various package types, including DIP (Dual In-Line Package) and surface-mount variants.

Note: The 74180 IC is an essential component in digital display systems, making it possible to convert BCD data into a format suitable for driving numeric displays or other devices that require decimal representation.
